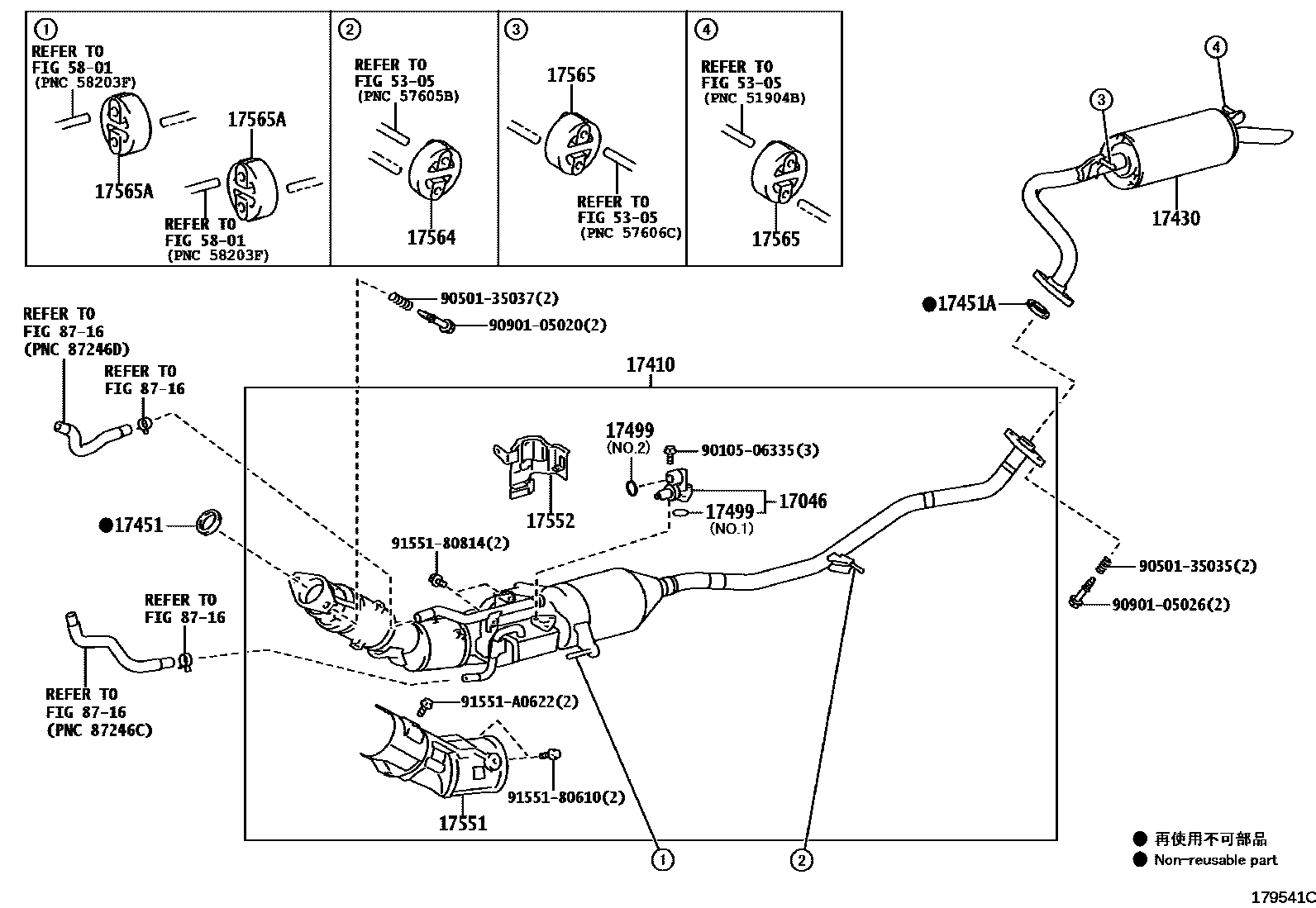

EXHAUST PIPE

0001 1 0002 1

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-37030i2ZRFXE..ZVW41201109-201201

main17046-37090i2ZRFXE..ZVW41201201-201303

main17046-37091i2ZRFXE..ZVW41201304-201409

main17046-37092i2ZRFXE..ZVW41201410-201411

17410PIPE ASSY, EXHAUST, FRONT

main17410-37550i2ZRFXE..ZVW41201109-201112

*114=TOYOTA/GP1TD6/Y

main17410-37551i2ZRFXE..ZVW41201201-201303

*114=TOYOTA/GP1TD6/Y

main17410-37552i2ZRFXE..ZVW41201304-201409

*114=*408

main17410-37553i2ZRFXE..ZVW41201410-201411

*114=*408

17430PIPE ASSY, EXHAUST, TAIL

main17430-37480i2ZRFXE..ZVW41201109-201411

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW41201109-201411

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i2ZRFXE..ZVW41201109-201411

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-31020i2ZRFXE..ZVW41201109-201411

NO.1

main17499-37010i2ZRFXE..ZVW41201109-201411

NO.2

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17055-37010i2ZRFXE..ZVW41201109-201411

17552INSULATOR, EXHAUST PIPE HEAT, NO.2

main17551-21030i2ZRFXE..ZVW41201201-201411

main17552-37020i2ZRFXE..ZVW41201109-201201

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZVW41201109-201411

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i2ZRFXE..ZVW41201109-201411

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i2ZRFXE..ZVW41201109-201411

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9010506335

main90105-06335

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

9155180814

main91551-80814

91551A0622

main91551-A0622

22 parts on this diagram · 2 diagrams in section
