TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

55497DLENS, WARNING LAMP

main55497-47010iZVW52..E201609-201904

WITH(HEAD UP DISPLAY)

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-47010-A0iZVW52..E201609-201801

WITH(HEAD UP DISPLAY),WHITE,TRIM1#

main861C0-47010-C0iZVW52..E201609-201801

BLACK METALLC,TRIM2#

main861C0-47011-A0iZVW52..E201802-201904

WITH(HEAD UP DISPLAY),WHITE,TRIM1#

sub861C0-47012

main861C0-47011-C0iZVW52..E201802-201904

BLACK METALLC,TRIM2#

sub861C0-47012

main861C0-47030-C0iZVW52..E201905-201909

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM1#,2#

main861C0-47031-C0iZVW52..E201910

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM1#,2#

86725BATTERY, MOBILEPHONE

main86725-0E010iZVW52..E202007-202211

main86725-78010iZVW52..E201905-202007

86741ATRANSCEIVER, TELEMATICS

main86740-47250iZVW52..E201905-202007

sub86740-0Q020

main86741-42071iZVW52..E202007-202211

CANADA SPEC&AUDIO-11INCH, AVN & 6SP & SMARTPHONE

9356054012

main93560-54012

9415180600

main94151-80600

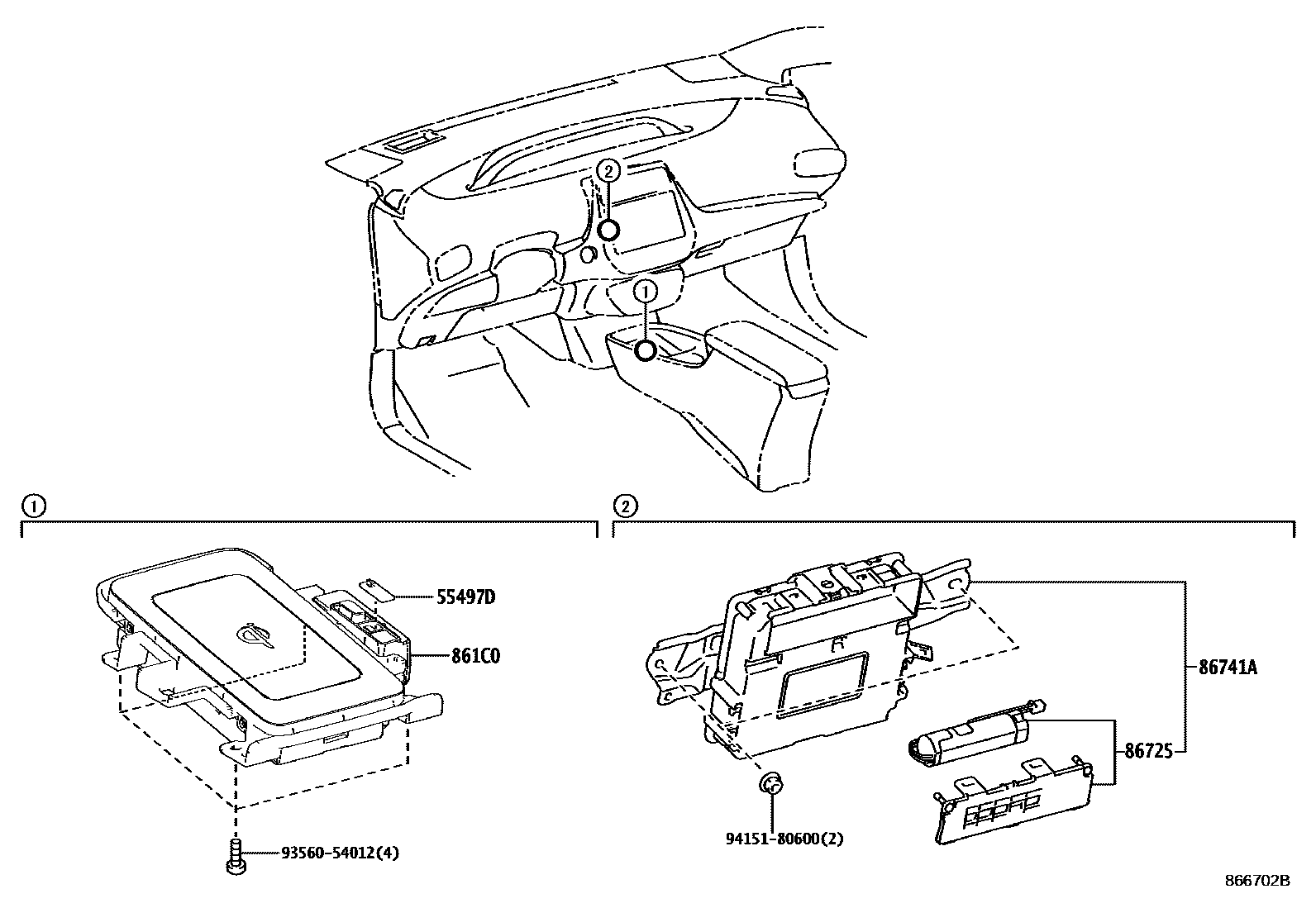

6 parts on this diagram · 3 diagrams in section
