CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
WITH(*ICS & *IPA)
89305ACUSHION SET, ULTRASONIC SENSOR, NO.2
USA L2 PACKAGE
89340ACOMPUTER ASSY, CLEARANCE WARNING
WITH(*ICS & *IPA)
USA L2 PACKAGE
89341KSENSOR, ULTRASONIC, FRONT CORNER
USA L2 PACKAGE,SUPER WHITE 2,040
WITH(*ICS & *IPA),WHITE PEARL CS.,070
USA L2 PACKAGE,PLATINUM WHITE PEARL MC.,089
WITH(*ICS & *IPA),SILVER ME.,1F7
USA L2 PACKAGE,GRAY ME.,1G3
USA L2 PACKAGE,ATTITUDE BLACK MC.,218
WITH(*ICS & *IPA),EMOTIONAL RED,3T7
USA L2 PACKAGE,EMOTIONAL RED 2,3U5
WITH(*ICS & *IPA),STEEL BLONDE,4X1
USA L2 PACKAGE,SPIRITED AQUA ME.,791
89341LSENSOR, ULTRASONIC, FRONT CENTER
WITH(*ICS & *IPA),DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
WITH(*ICS & *IPA),WHITE PEARL CS.,070
USA L2 PACKAGE,SUPER WHITE 2,040
USA L2 PACKAGE,PLATINUM WHITE PEARL MC.,089
USA L2 PACKAGE,SILVER ME.,1F7
WITH(*ICS & *IPA),GRAY ME.,1G3
USA L2 PACKAGE,ATTITUDE BLACK MC.,218
WITH(*ICS & *IPA),EMOTIONAL RED,3T7
USA L2 PACKAGE,EMOTIONAL RED 2,3U5
USA L2 PACKAGE,STEEL BLONDE,4X1
USA L2 PACKAGE,SPIRITED AQUA ME.,791
89342SENSOR, ULTRASONIC, REAR CORNER
WITH(*ICS & *IPA),SUPER WHITE 2,040
USA L2 PACKAGE,WHITE PEARL CS.,070
USA L2 PACKAGE,PLATINUM WHITE PEARL MC.,089
USA L2 PACKAGE,SILVER ME.,1F7
WITH(*ICS & *IPA),GRAY ME.,1G3
USA L2 PACKAGE,ATTITUDE BLACK MC.,218
WITH(*ICS & *IPA),EMOTIONAL RED,3T7
USA L2 PACKAGE,EMOTIONAL RED 2,3U5
USA L2 PACKAGE,STEEL BLONDE,4X1
USA L2 PACKAGE,SPIRITED AQUA ME.,791
89342ASENSOR, ULTRASONIC, REAR CENTER
WITH(*ICS & *IPA),SUPER WHITE 2,040
USA L2 PACKAGE,WHITE PEARL CS.,070
USA L2 PACKAGE,PLATINUM WHITE PEARL MC.,089
USA L2 PACKAGE,SILVER ME.,1F7
WITH(*ICS & *IPA),GRAY ME.,1G3
USA L2 PACKAGE,ATTITUDE BLACK MC.,218
WITH(*ICS & *IPA),EMOTIONAL RED,3T7
USA L2 PACKAGE,EMOTIONAL RED 2,3U5
USA L2 PACKAGE,STEEL BLONDE,4X1
USA L2 PACKAGE,SPIRITED AQUA ME.,791
89342BSENSOR, ULTRASONIC, REAR SIDE
USA L2 PACKAGE,WHITE PEARL CS.,070
USA L2 PACKAGE,SUPER WHITE 2,040
USA L2 PACKAGE,PLATINUM WHITE PEARL MC.,089
WITH(*ICS & *IPA),SILVER ME.,1F7
WITH(*ICS & *IPA),GRAY ME.,1G3
USA L2 PACKAGE,ATTITUDE BLACK MC.,218
WITH(*ICS & *IPA),EMOTIONAL RED,3T7
USA L2 PACKAGE,EMOTIONAL RED 2,3U5
USA L2 PACKAGE,STEEL BLONDE,4X1
WITH(*ICS & *IPA),SPIRITED AQUA ME.,791
89343CBUZZER, CLEARANCE WARNING, NO.1
USA L2 PACKAGE
89343DBUZZER, CLEARANCE WARNING, NO.2
WITH(*ICS & *IPA)
89348JCLIP, ULTRASONIC SENSOR
WITH(*ICS & *IPA)
9167380616
main91673-80616

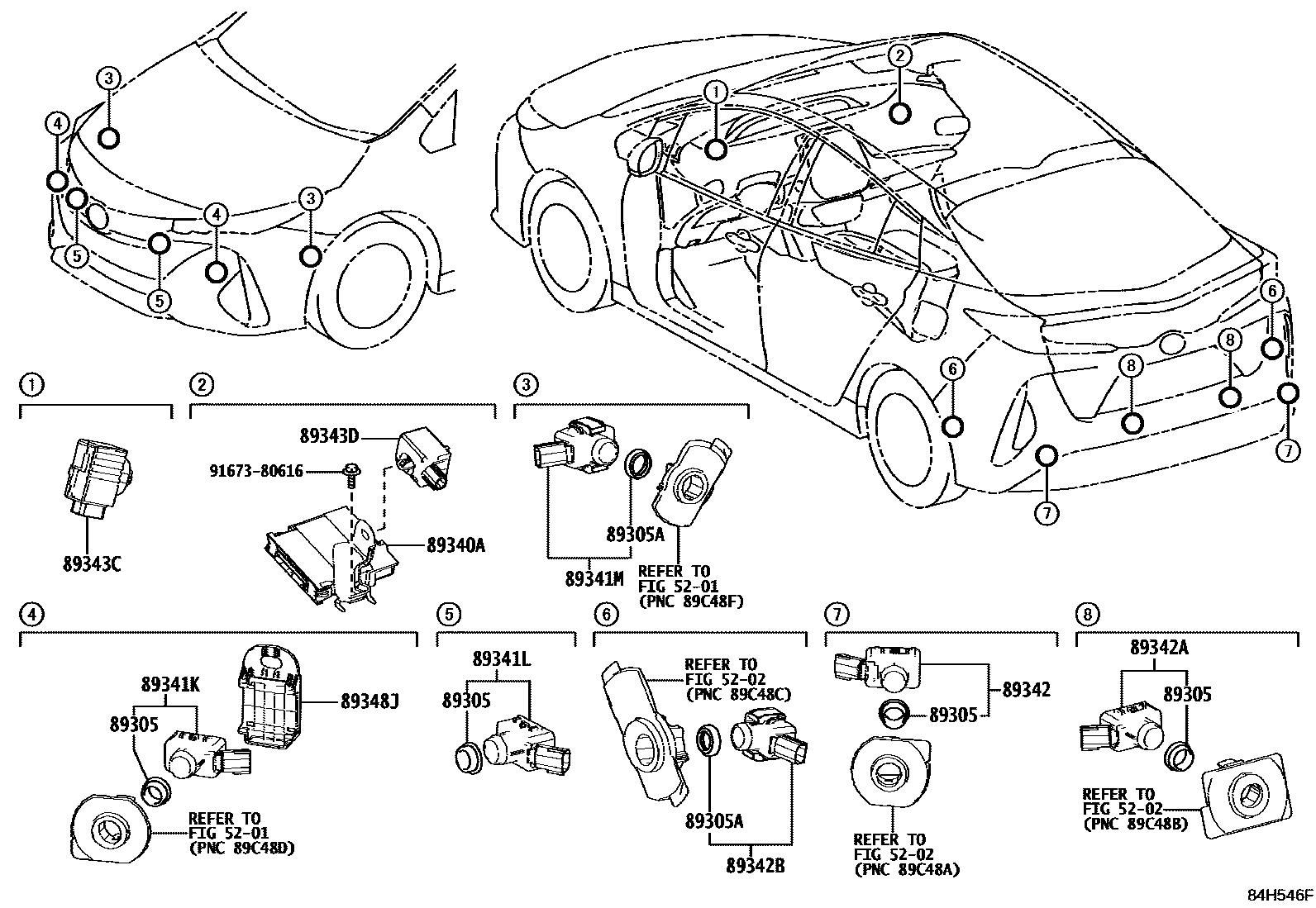

15 parts on this diagram · 1 diagram in section
