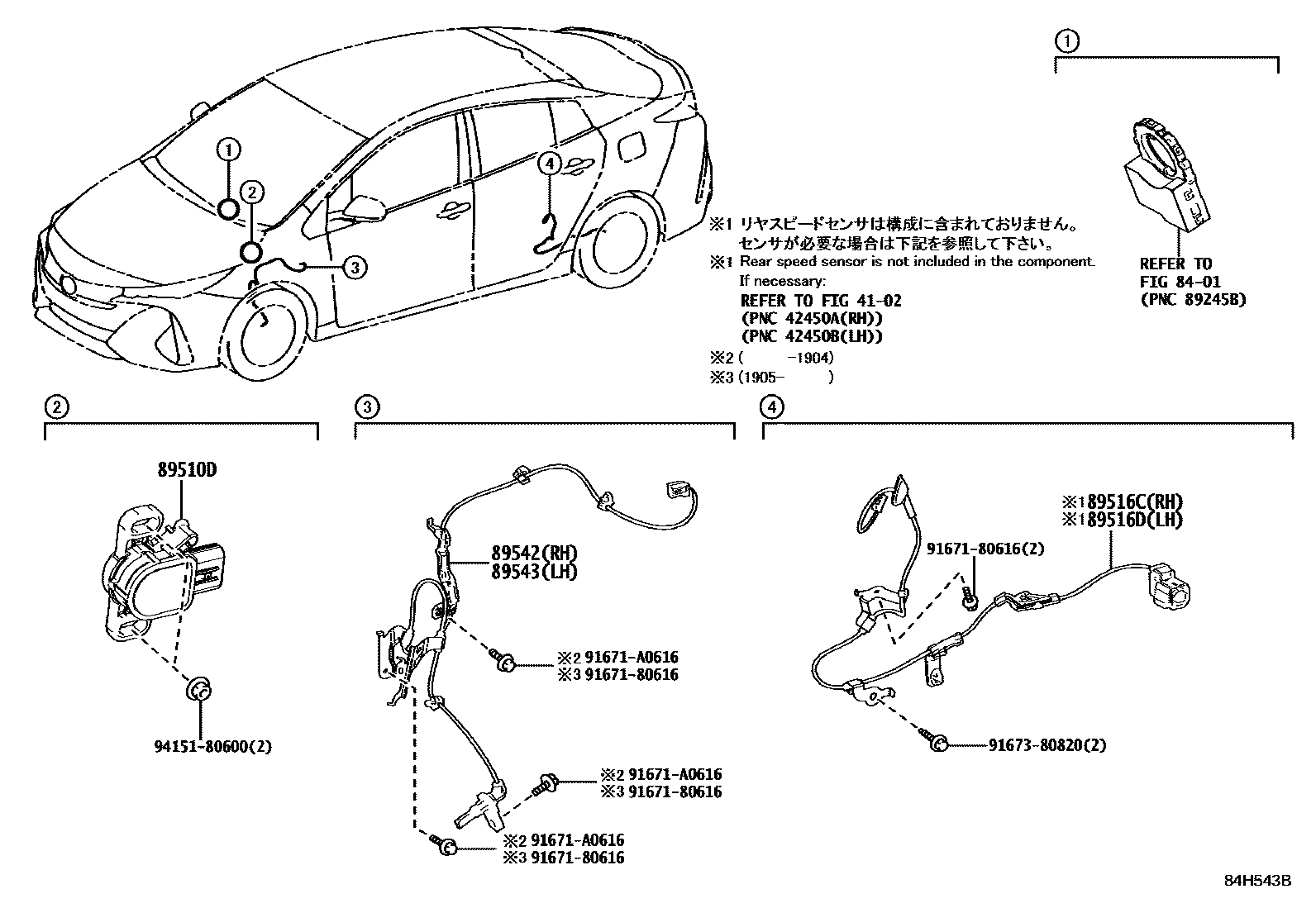

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47040iZVW52201609-201904

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47110iZVW52201609-201904

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47120iZVW52201609-201904

89542SENSOR, SPEED, FRONT RH

main89542-47040iZVW52201609-201904

89543SENSOR, SPEED, FRONT LH

main89543-47040iZVW52201609-201904

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380820

main91673-80820

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
