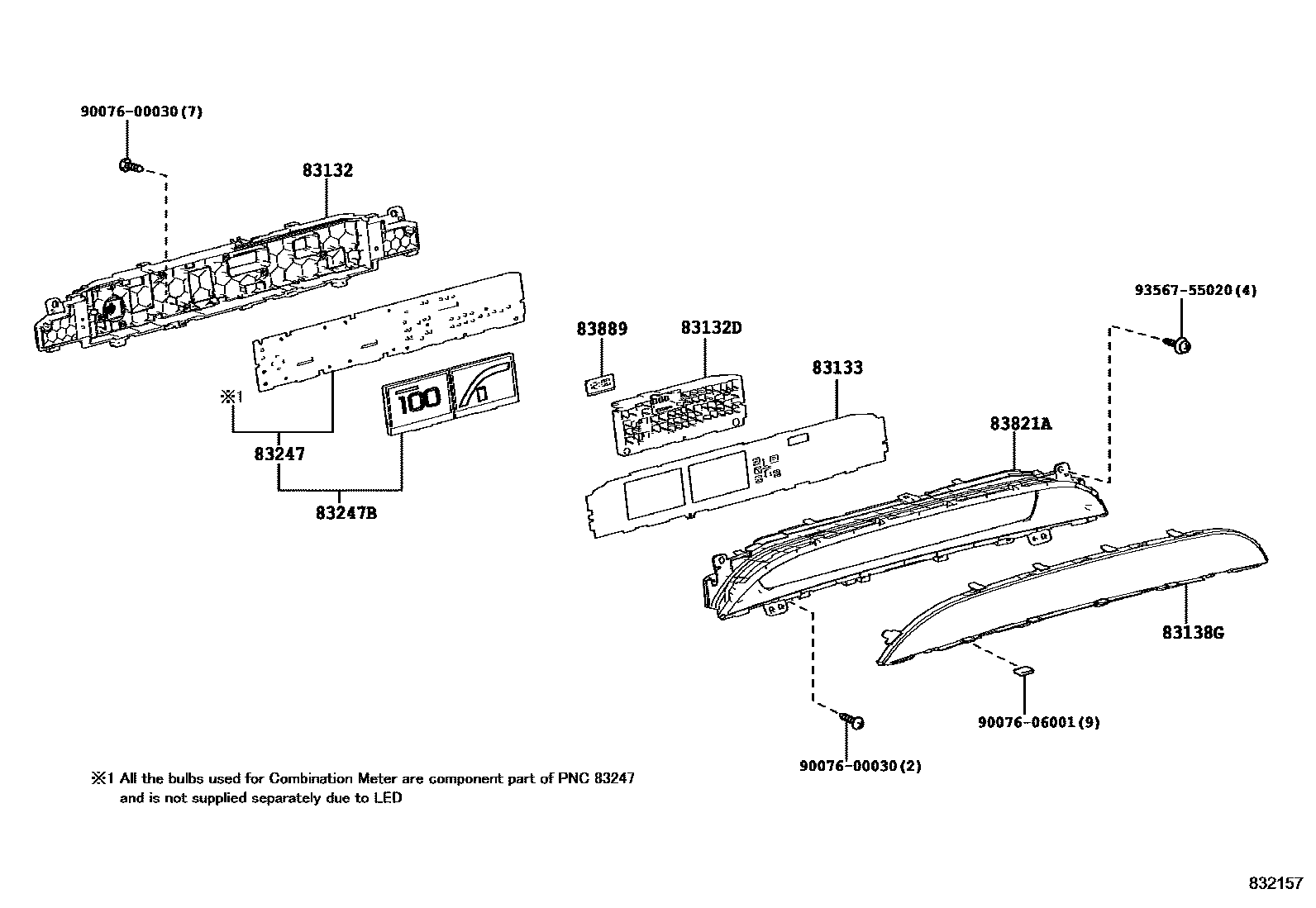

METER

83132CASE, COMBINATION METER

main83841-47L20i201905

83132DCASE, COMBINATION METER, NO.2

main83842-47L20i201905

83133PLATE, COMBINATION METER, NO.1

main83811-47P40i201609-201904

main83811-47G60supersedes 83811-47G50i202007

CANADA SPEC

main83811-47P50i201609-201801

CANADA SPEC

main83811-47P70i201609-201812

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83811-47T70i201801-201904

CANADA SPEC

main83811-47W40supersedes 83811-47W30i201905-202007

CANADA SPEC

main83811-47W70i201905-202007

KOREA SPEC&WITH(HEAD UP DISPLAY)

main83811-47X60i201812-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83811-47Z90i202007-202106

KOREA SPEC&WITH(HEAD UP DISPLAY)

83138GGLASS, COMBINATION METER

main83852-47L00i201609-201904

83247PLATE, METER CIRCUIT

main83861-47G60supersedes 83861-47G50i202007-202106

CANADA SPEC

main83861-47P50supersedes 83861-4E401i201609-201611

CANADA SPEC

main83861-47P51supersedes 83861-47P41i201611-201801

CANADA SPEC

main83861-47P70i201609-201611

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83861-47P71i201611-201801

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83861-47R60supersedes 83861-47P41i201611-201801

HAWAII SPEC

main83861-47T70supersedes 83861-47T60i201801-201812

CANADA SPEC

main83861-47U00i201801-201812

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83861-47W40supersedes 83861-47W30i201905-202007

CANADA SPEC

main83861-47W70i201905-202007

KOREA SPEC&WITH(HEAD UP DISPLAY)

main83861-47X30supersedes 83861-47X20i201812-201904

CANADA SPEC

main83861-47X60i201812-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83861-47Z90i202007-202106

KOREA SPEC&WITH(HEAD UP DISPLAY)

main83861-4E410supersedes 83861-4E400i202106-202111

CANADA SPEC

main83861-4E411supersedes 83861-4E401i202111

CANADA SPEC

main83861-4E440i202106-202111

KOREA SPEC

main83861-4E441i202111

KOREA SPEC

83247BPLATE, METER CIRCUIT, NO.2

main83862-47G60supersedes 83862-47G50i202007-202106

CANADA SPEC

main83862-47P50supersedes 83862-4E401i201609-201611

CANADA SPEC

main83862-47P51supersedes 83862-47P41i201611-201801

CANADA SPEC

main83862-47P70i201609-201611

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83862-47P71i201611-201801

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83862-47R60supersedes 83862-47P41i201611-201801

HAWAII SPEC

main83862-47T70supersedes 83862-47T60i201801-201812

CANADA SPEC

main83862-47U00i201801-201812

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83862-47W40supersedes 83862-47W30i201905-202007

CANADA SPEC

main83862-47W70i201905-202007

KOREA SPEC&WITH(HEAD UP DISPLAY)

main83862-47X30supersedes 83862-47X20i201812-201904

CANADA SPEC

main83862-47X60i201812-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT

main83862-47Z90i202007-202106

KOREA SPEC&WITH(HEAD UP DISPLAY)

main83862-4E410supersedes 83862-4E400i202106-202111

CANADA SPEC

main83862-4E411supersedes 83862-4E401i202111

CANADA SPEC

main83862-4E440i202106-202111

KOREA SPEC

main83862-4E441i202111

KOREA SPEC

83821ACOVER, COMBINATION METER, NO.1

main83821-47L20i201609-201904

83889MULTI-DISPLAY, COMBINATION METER

main83889-62010i201609-201904

9007600030

main90076-00030

9007606001

main90076-06001

9356755020

main93567-55020

11 parts on this diagram · 2 diagrams in section
