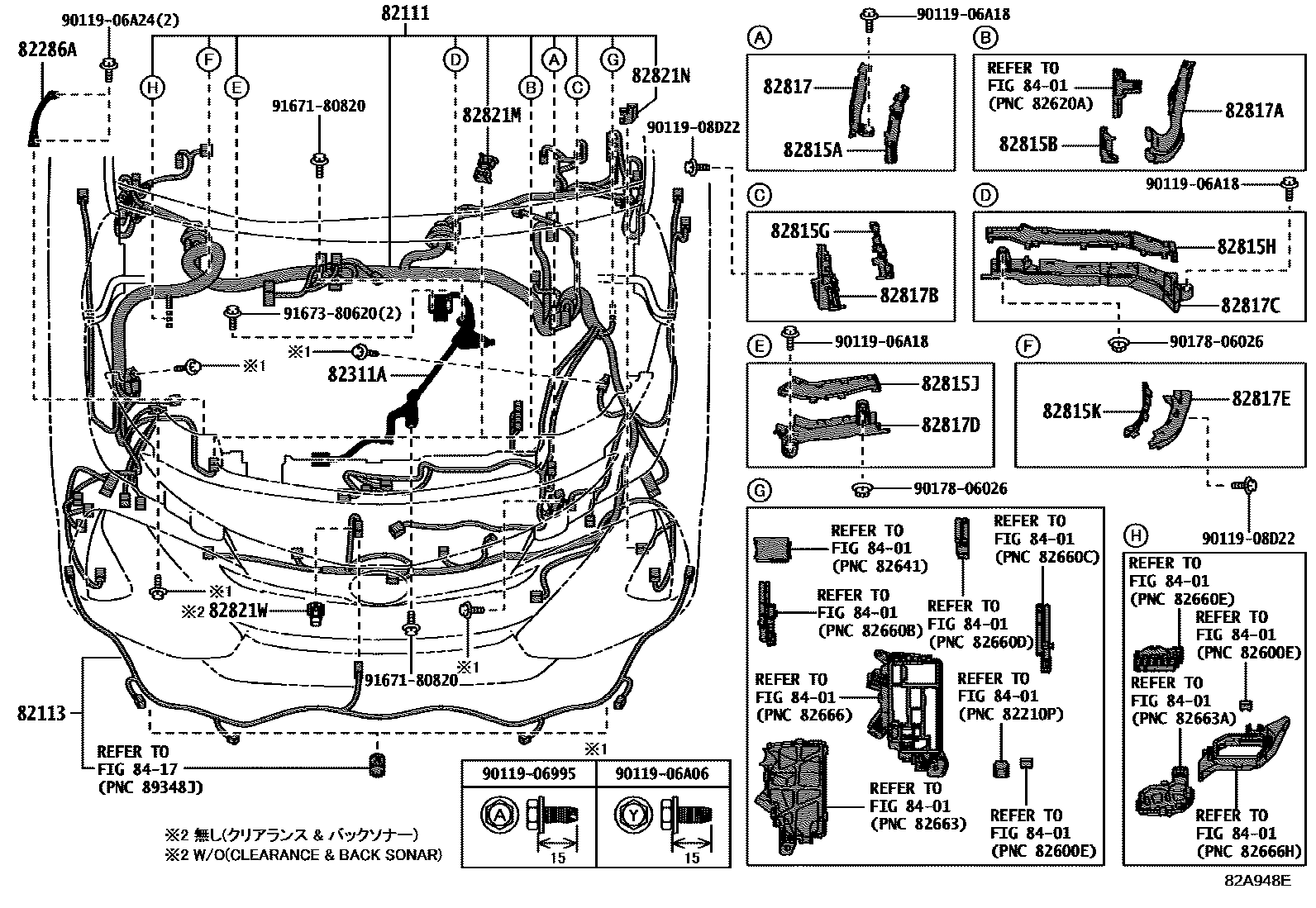

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
CANADA SPEC
CANADA SPEC
CANADA SPEC
CANADA SPEC
KOREA SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT
KOREA SPEC
KOREA SPEC
KOREA SPEC
82113WIRE, ENGINE ROOM, NO.3
WITH(*ICS & *IPA)
USA L2 PACKAGE
82286AWIRE, EARTH, NO.2
82311AWIRE, AIR CONDITIONER
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815HCOVER, WIRING HARNESS PROTECTOR NO.6
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82815KCOVER, WIRING HARNESS PROTECTOR, NO.8
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82817DPROTECTOR, WIRING HARNESS, NO.5
82817EPROTECTOR, WIRING HARNESS, NO.6
82821MCOVER, CONNECTOR
82821NCOVER, CONNECTOR
82821WCOVER, CONNECTOR
8401
8417
9011906995
main90119-06995
9011906A06
main90119-06A06
9011906A18
main90119-06A18
9011906A24
main90119-06A24
9011908D22
main90119-08D22
9017806026
main90178-06026
9167180820
main91671-80820
9167380620
main91673-80620
29 parts on this diagram · 12 diagrams in section
