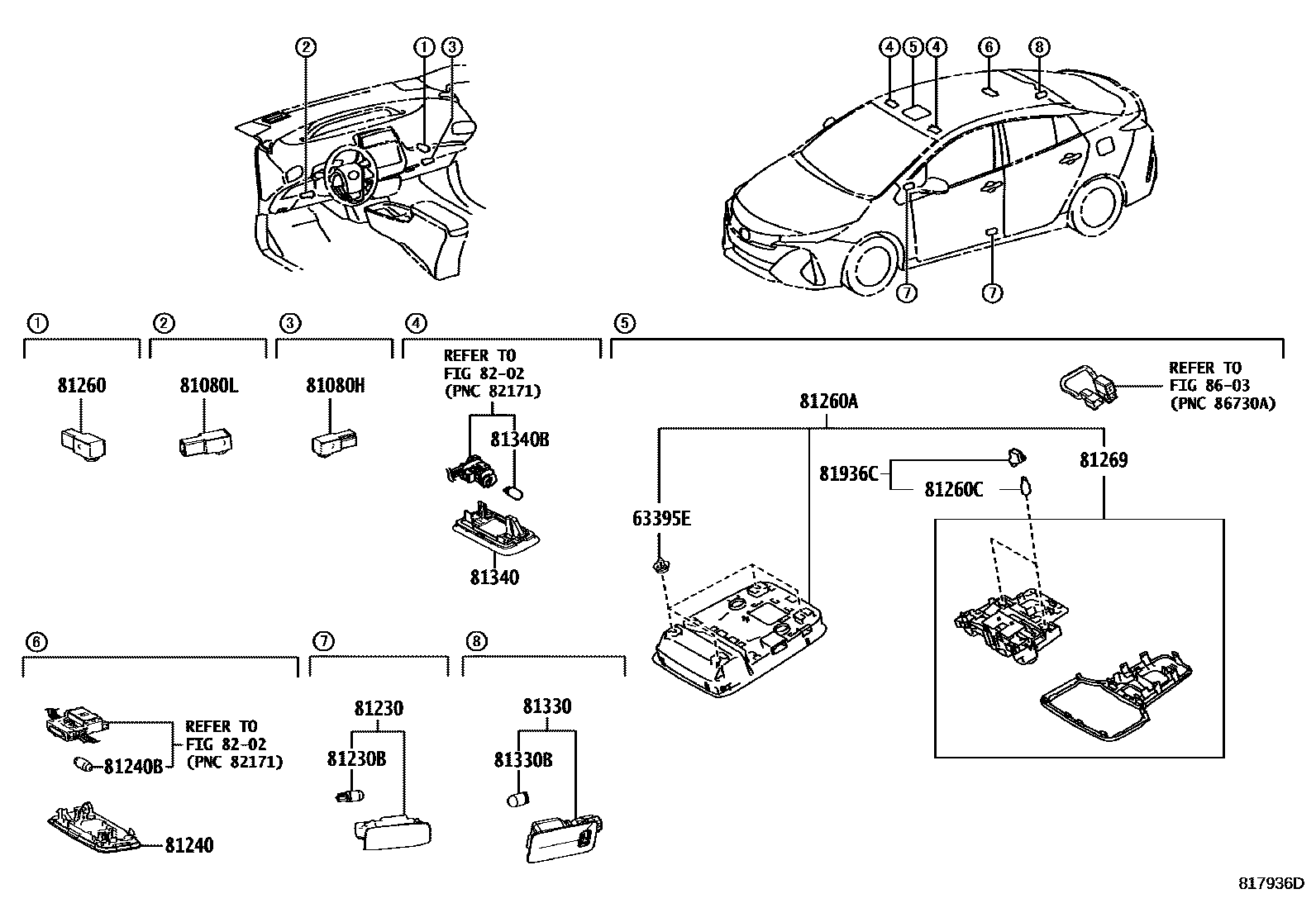

INTERIOR LAMP

0001 1 0002 1WITH (TELEMATICS) 0003 1 0004 1 0005 1WITH (TELEMATICS)

63395ECLIP(FOR MAP LAMP)

main90467-09240×4iZVW52201905-201906

main90467-09245×4iZVW52201907

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290iZVW52..G201905

main81080-48010iZVW52..G201609-201707

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290iZVW52..G201707-201904

main81080-48010iZVW52..G201609-201707

81230LAMP ASSY, COURTESY

main81230-30200×2iZVW52201609-201904

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZVW52201609-201904

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-47010-B0iZVW52201609-201904

COOL GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW52201609-201904

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iZVW52201707-201904

main81080-48010iZVW52201609-201707

81260ALAMP ASSY, MAP

main81208-47070-B0iZVW52201609-201904

COOL GRAY,TRIM1#,2#

main81208-47200-B0supersedes 81208-47200-B0iZVW52..E201905-202007

COOL GRAY,TRIM1#,2#

81260CBULB(FOR MAP LAMP)

main99132-12050×2iZVW52201609-201904

12V 5W

81269SWITCH, MAP LAMP

main81206-47020iZVW52201609-201904

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iZVW52201609-201904

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iZVW52201609-201904

12V 5W

81340LAMP ASSY, VANITY

main81340-30110×2iZVW52201905

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZVW52201905

12V 8W

81936CBULB ASSY

main81936-12160×2iZVW52201609-201904

8202

8603

18 parts on this diagram · 5 diagrams in section
