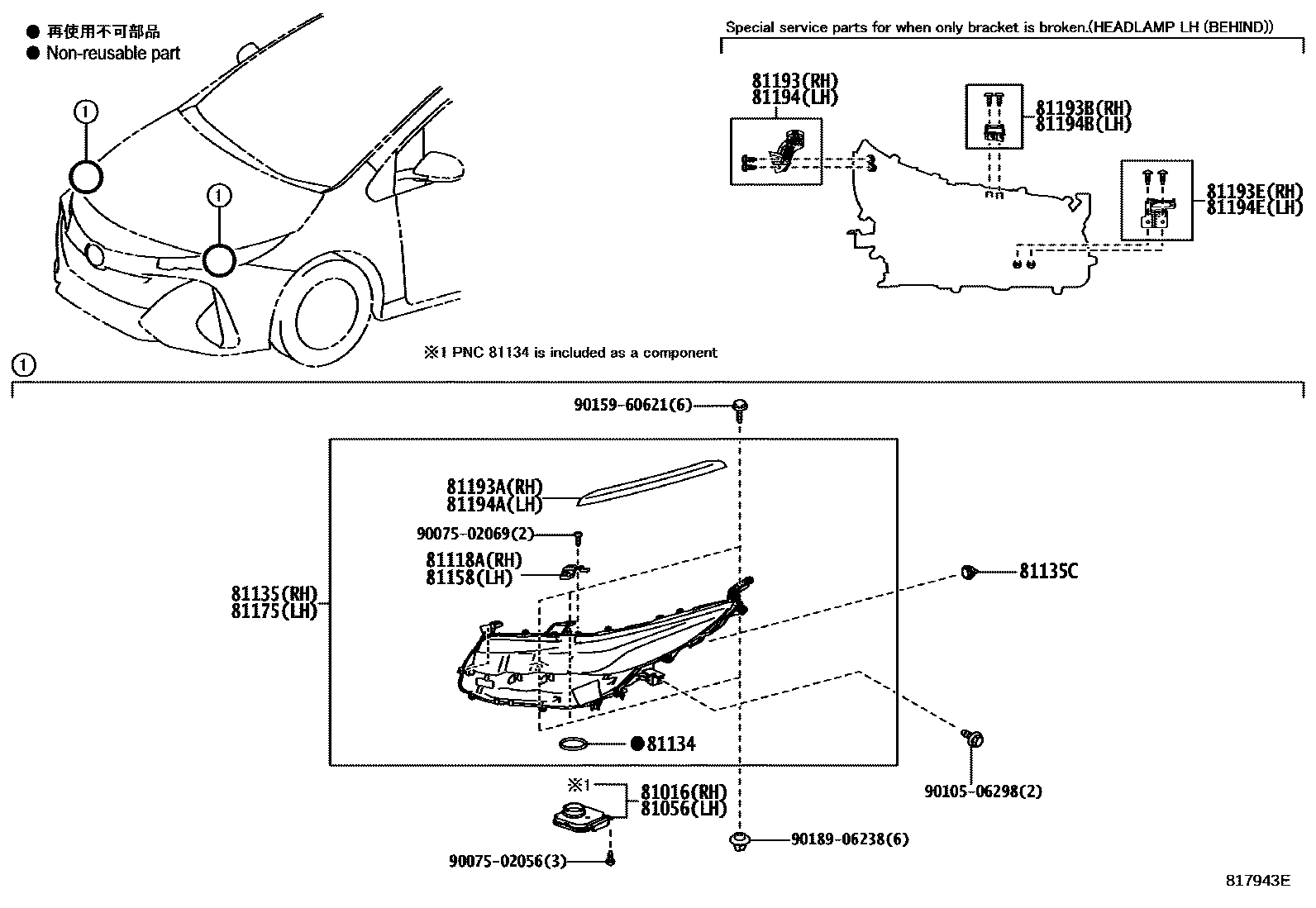

HEADLAMP

0001 1 0002 1KOREA SPEC

81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1

main81016-47800iZVW52201609-201904

main81016-47770iZVW52..E201609-201904

KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT

81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1

main81056-47800iZVW52201609-201904

main81056-47630iZVW52..E201905-202211

KOREA SPEC

81118ABRACKET, HEADLAMP, RH

main81118-47770iZVW52201609-201904

81134GASKET, HEADLAMP

main90075-23003iZVW52201609-201904

81135UNIT ASSY, HEADLAMP, RH

main81145-47800iZVW52201609-201904

main81145-47801iZVW52201905-202211

main81145-47790iZVW52..E201609-201904

KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT

main81145-47791iZVW52..E201905-202211

KOREA SPEC

81135CCOVER, HEADLAMP BACK, NO.1

main81135-22B70×2iZVW52201609-201904

81158BRACKET, HEADLAMP, LH

main81158-47630iZVW52201609-201904

81175UNIT ASSY, HEADLAMP, LH

main81185-47800iZVW52201609-201904

main81185-47801iZVW52201905-202211

main81185-47790iZVW52..E201609-201904

KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT

main81185-47791iZVW52..E201905-202211

KOREA SPEC

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-47160iZVW52201609-201904

81193APROTECTOR, HEADLAMP, RH

main81117-47770iZVW52201609-201708

main81117-47800iZVW52201708-201904

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-47180iZVW52201905

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-47170iZVW52201609-201904

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-47150iZVW52201609-201904

81194APROTECTOR, HEADLAMP, LH

main81157-47630iZVW52201609-201708

main81157-47800iZVW52201708-201904

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-47170iZVW52201609-201904

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-47160iZVW52201609-201904

9007502056

main90075-02056

9007502069

main90075-02069

9010506298

main90105-06298

9015960621

main90159-60621

9018906238

main90189-06238

21 parts on this diagram · 2 diagrams in section
