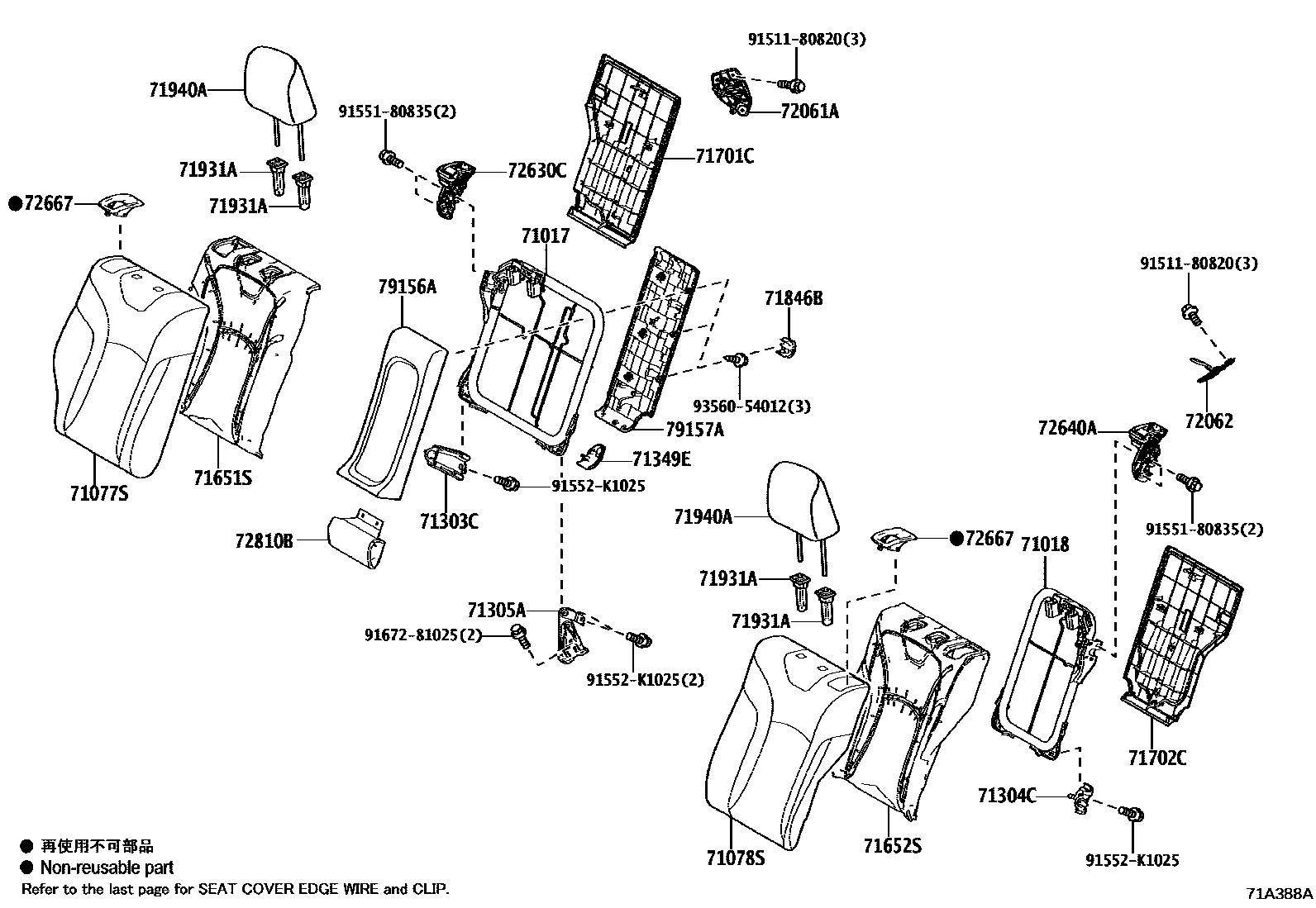

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47220i201905

main71017-47240i201609-201904

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47140i201609-201904

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47680-B4i201609-201610

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71077-47680-B5i201610-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71077-47680-C4i201609-201610

BLACK,TRIM2#

main71077-47680-C5i201610-201904

BLACK,TRIM2#

main71077-47A10-B3supersedes 71077-47890-B2i201905

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71077-47A10-C8supersedes 71077-47890-C1i201905

BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47470-B4i201609-201610

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71078-47470-B5i201610-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71078-47470-C4i201609-201610

BLACK,TRIM2#

main71078-47470-C5i201610-201904

BLACK,TRIM2#

main71078-47620-B2supersedes 71078-47580-B1i201905

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71078-47620-C7supersedes 71078-47580-C1i201905

BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47030i201609-201904

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47030i201905

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040i201905

main71305-47050i201609-201904

71349ECOVER, REAR SEATBACK HINGE

main71349-47040-C0i201609-201904

BLACK,TRIM1#,2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47200i201905

main71651-47240i201609-201904

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47120i201905

main71652-47170i201609-201904

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-47020i201905

main71701-47030i201609-201904

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-47020i201609-201904

71846BCAP, REAR SEATBACK BOARD, NO.1

main71846-47010-C0×3i201609-201904

BLACK,TRIM1#,2#

71931ASUPPORT, REAR SEAT HEADREST

main71955-47010-B2×4i201609-201904

W/O(LOCK),COOL GRAY,TRIM1#

main71955-47010-B6×4i201905

W/O(LOCK),GRAY,TRIM1#

main71955-47010-C0×4i201609-201701

W/O(LOCK),BLACK,TRIM2#

main71955-47010-C2×4i201701-201904

W/O(LOCK),BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-47550-B4×2i201609-201903

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),COOL GRAY,TRIM1#

main71940-47550-B5×2supersedes 71940-47520-B9i201905

GRAY,TRIM1#

main71940-47550-B6×2i201903-201904

DK.GRAY,TRIM20

main71940-47550-C3×2supersedes 71940-47520-C4i201903-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM20

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-47010i201609-201904

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-47010i201609-201904

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-B5i201905

GRAY,TRIM1#

main72630-47050-C0i201609-201612

BLACK,TRIM1#,2#

main72630-47050-C2i201905

BLACK,TRIM2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-B5i201905

GRAY,TRIM1#

main72640-47050-C0i201609-201612

BLACK,TRIM1#,2#

main72640-47050-C2i201612-201904

BLACK,TRIM1#,2#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010×2i201905-202007

main72667-47010-B5×2i202007

GRAY,TRIM1#

main72667-47010-C0×2i201609-201612

BLACK,TRIM1#,2#

main72667-47010-C1×2i202007

BLACK,TRIM2#

72810BARMREST ASSY, NO.1 SEAT

main72810-47031-C0supersedes 72810-47011-C0i201609-201904

KOREA SPEC&WITH(HEAD UP DISPLAY)&FRONT SEAT-*DRS(POWER SEAT),BLACK,TRIM1#,2#

79156APLATE, NO.1 SEAT SIDE, NO.1

main79156-47010-C0i201609-201904

BLACK,TRIM1#,2#

79157APLATE, NO.1 SEAT SIDE, NO.2

main79157-47010-C0i201609-201904

BLACK,TRIM1#,2#

9151180820

main91511-80820

9155180835

main91551-80835

91552K1025

main91552-K1025

9167281025

main91672-81025

9356054012

main93560-54012

28 parts on this diagram · 5 diagrams in section
