FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-47152iZVW52201612-201901

REFER TO PNC 68141C

sub68141-47052

main67001-47153iZVW52201901-201904

REFER TO PNC 68141C

main67001-47160iZVW52201609-201612

REFER TO PNC 68141C

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iZVW52201609-201904

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-47162iZVW52201612-201901

REFER TO PNC 68151D

sub68151-47052

main67002-47163iZVW52201905

main67002-47180iZVW52201609-201612

REFER TO PNC 68151D

67111PANEL, FRONT DOOR, OUTER RH

main67111-47050iZVW52201609-201904

67112PANEL, FRONT DOOR, OUTER LH

main67112-47050iZVW52201609-201904

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-47010iZVW52201609-201904

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-47010iZVW52201609-201904

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-47050iZVW52201609-201904

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-47050iZVW52201905

67663DGARNISH, DOOR FRAME, RH

main67663-47010iZVW52201609-201904

67664CGARNISH, DOOR FRAME, LH

main67664-47010iZVW52201905

67811PAD, FRONT DOOR SILENCER

main67811-12180×2iZVW52202005

80X80

main67811-33040×2iZVW52201905-202004

70X120

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-47120iZVW52201609-201904

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iZVW52201609-201904

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-47100iZVW52201905

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-47010iZVW52201905

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-47010iZVW52201905

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060×6iZVW52201705-201904

main67837-48050×6iZVW52201609-201704

67837DSEAL, FRONT DOOR VENT, RH

main67837-47020iZVW52201609-201904

67838DSEAL, FRONT DOOR VENT, LH

main67838-47010iZVW52201609-201904

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-47010iZVW52201609-201904

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-47010iZVW52201609-201904

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-47050iZVW52201609-201904

main67861-47060iZVW52202101

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-47050iZVW52201609-201904

main67862-47060iZVW52202101

67867CLIP, DOOR WEATHERSTRIP

main67867-52010×2iZVW52201609-201904

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×18iZVW52201609-201904

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×18iZVW52201609-201904

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iZVW52201609-201904

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iZVW52201609-201904

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-47230iZVW52201609-201904

main68101-47231iZVW52202008

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-47230iZVW52201609-201904

main68102-47231iZVW52202008

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-47030iZVW52201609-201904

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-47030iZVW52201609-201904

68141CRUN, FRONT DOOR GLASS, RH

main68141-47061iZVW52201609-201901

REFER TO ILLUST.

main68141-47062iZVW52201901-201904

REFER TO ILLUST.

68151DRUN, FRONT DOOR GLASS, LH

main68151-47061iZVW52201609-201901

REFER TO ILLUST.

main68151-47062iZVW52201905

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-47010iZVW52201609-201904

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-47010iZVW52201609-201904

68610CHECK ASSY, FRONT DOOR

main68610-47040×2iZVW52201609-201904

7503

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-47030iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-47030iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-47060iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-47060iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-47050iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-47050iZVW52201609-201904

0 OR 1PIECE,REF.ILL.

6783347010COVER, REAR DOOR SERVICE HOLE

main67833-47010

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001620

main90950-01620

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

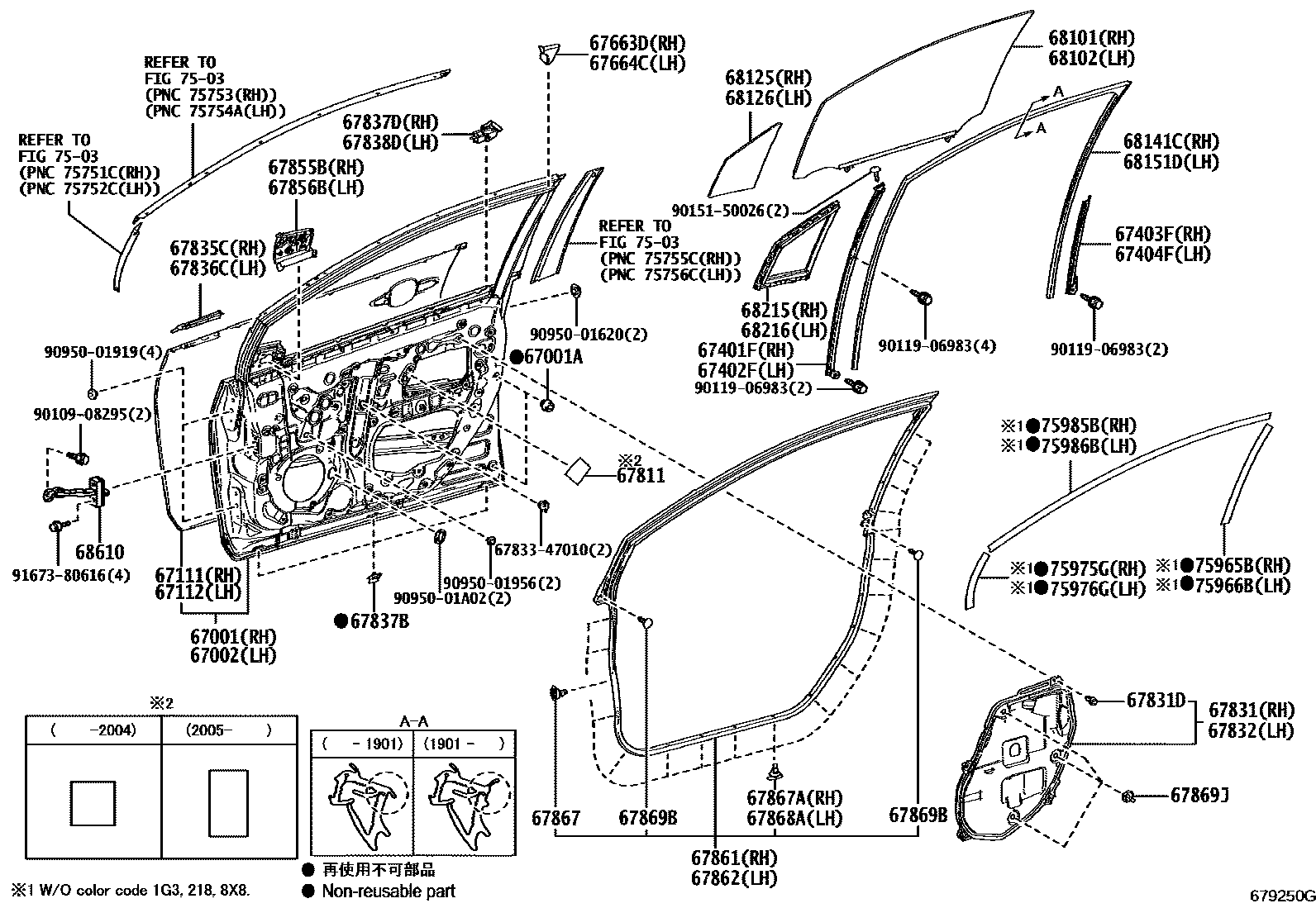

54 parts on this diagram · 2 diagrams in section
