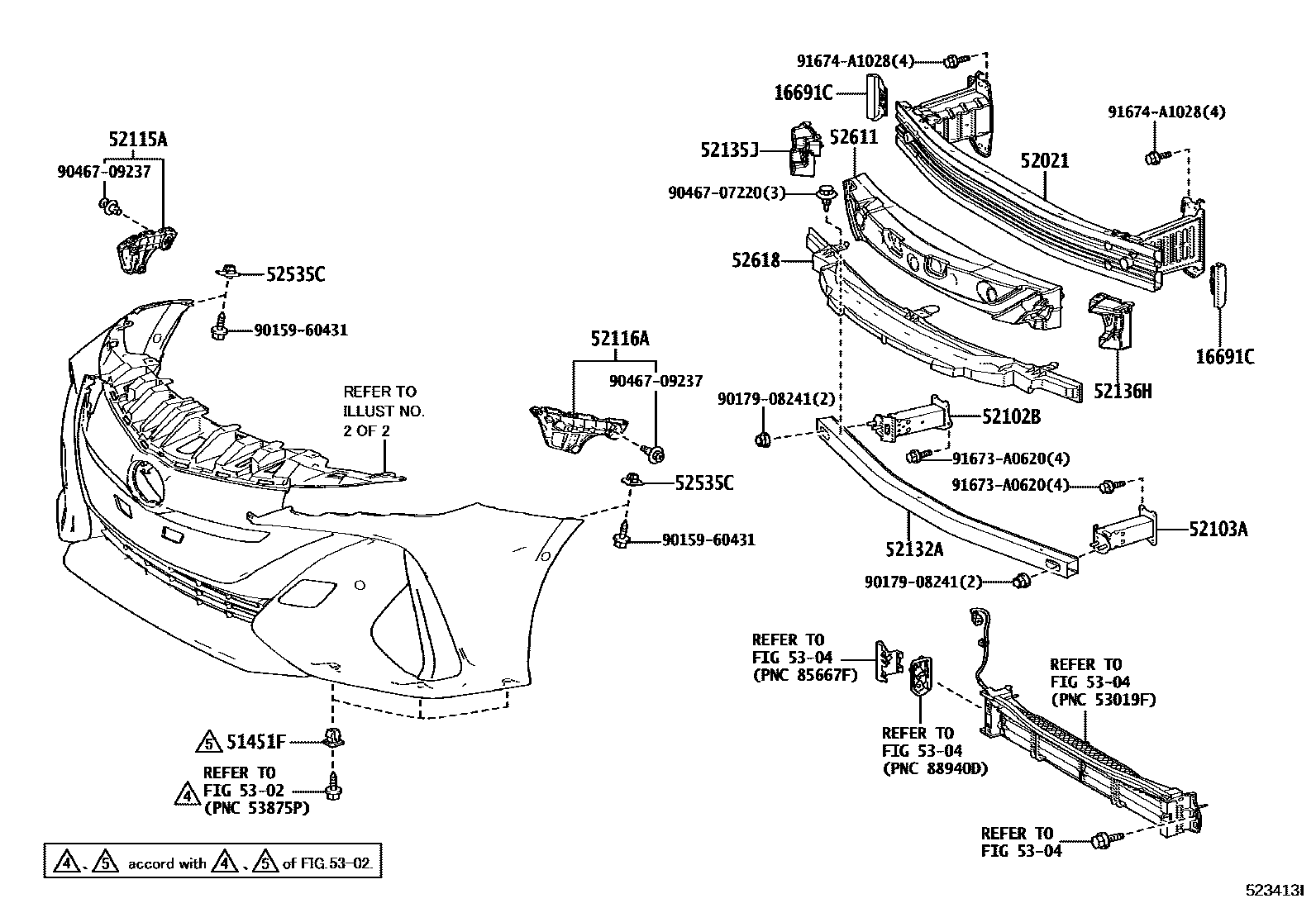

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

16691CPLATE, RADIATOR SIDE AIR GUIDE, FRONT

main16691-37020×2i2ZRFXE..ZVW52201905

main16691-37040×2i2ZRFXE..ZVW52201609-201801

51451FGROMMET, NO.1

main90189-06193×6iZVW52201905

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-47120iZVW52201609-201904

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-47030iZVW52201609-201904

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-47020iZVW52201905

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47070iZVW52201609-201904

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47070iZVW52201609-201904

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-47010iZVW52201609-201904

52135JREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH

main52135-47050iZVW52201609-201904

52136HREINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH

main52136-47040iZVW52201609-201904

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2iZVW52201609-201904

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47180iZVW52201609-201904

52618ABSORBER, FRONT BUMPER, LOWER

main52618-47110iZVW52201609-201704

main52618-47111iZVW52201705-201904

5302

5304

9015960431

main90159-60431

9017908241

main90179-08241

9046707220

main90467-07220

9046709237

main90467-09237

91673A0620

main91673-A0620

91674A1028

main91674-A1028

21 parts on this diagram · 2 diagrams in section
