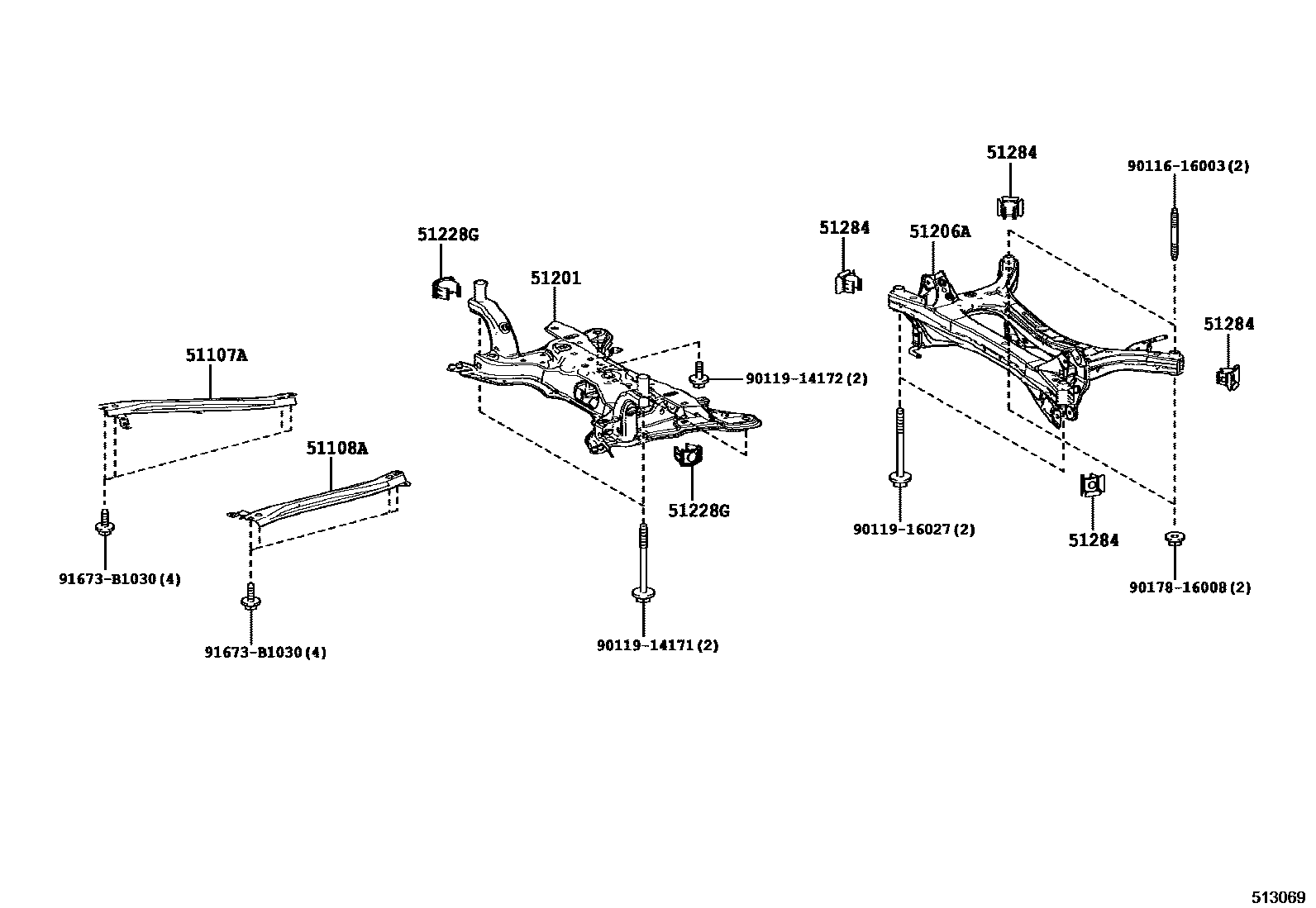

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47020iZVW52201609-201904

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47020iZVW52201609-201904

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47070iZVW52201609-201704

main51201-47071iZVW52201705-201902

main51201-47072iZVW52201903-201904

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47011iZVW52201609-201702

main51206-47012iZVW52201703-201904

main51206-47013iZVW52202012

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010×2iZVW52201609-201904

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010×4iZVW52201609-201904

9011616003

main90116-16003

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

12 parts on this diagram · 2 diagrams in section
