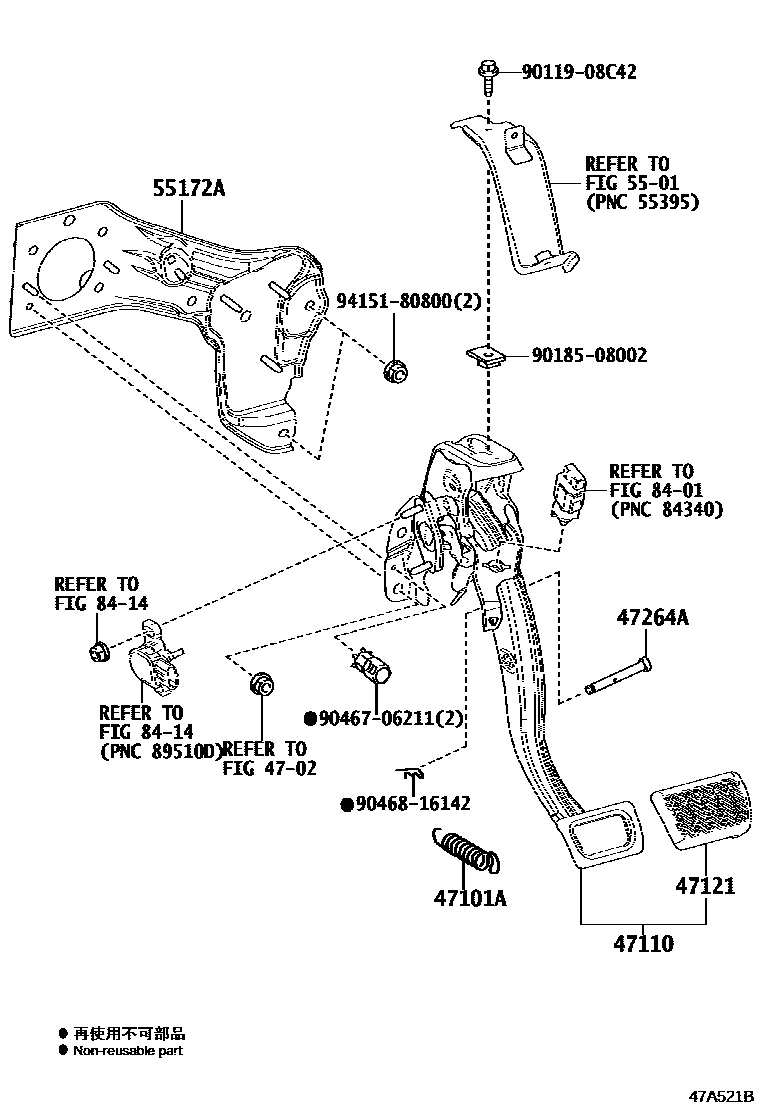

BRAKE PEDAL & BRACKET

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZVW52201905

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47060iZVW52201609-201904

47121PAD, BRAKE PEDAL

main47121-47010iZVW52201905

47264APIN(FOR PUSH ROD)

main90249-08309iZVW52201609-201904

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iZVW52201905

main55172-47030iZVW52201609-201904

8401

8414

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
