IGNITION COIL & SPARK PLUG / GLOW PLUG

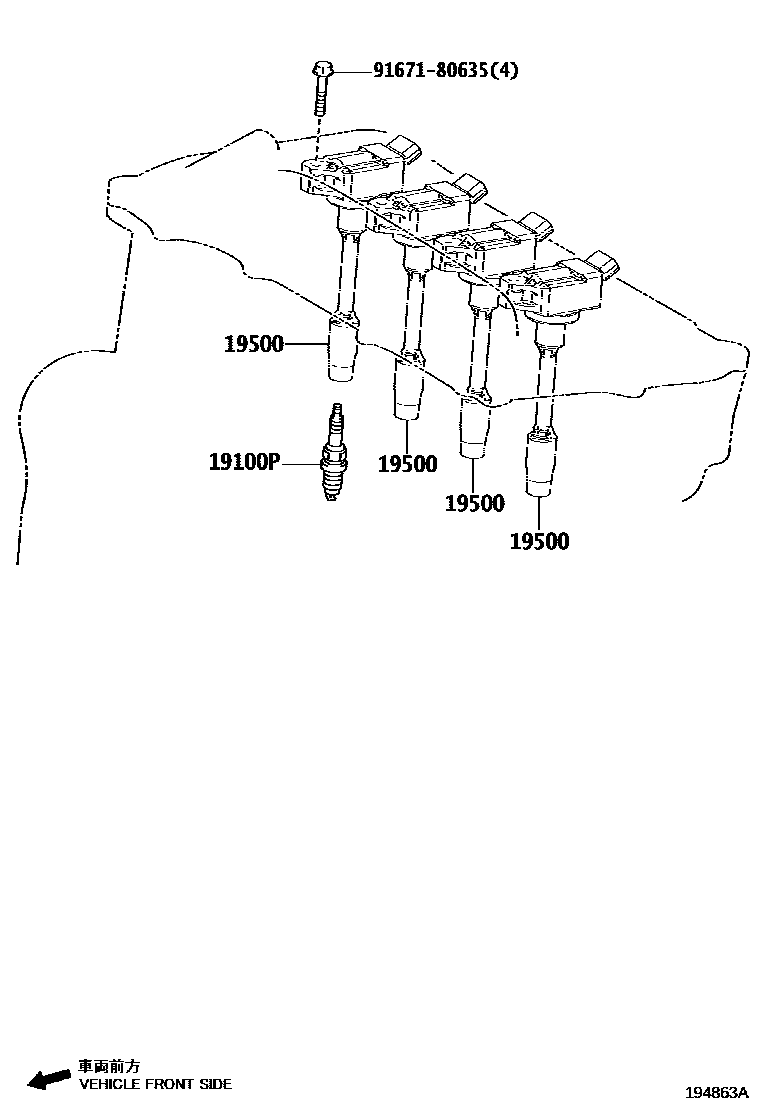

Parts diagram

19100PPLUG, SPARK

main90919-01281i201609-201708

FC16HR-C9

main90919-01298i201709-201904

FC16HR-CY9

19500COIL ASSY, IGNITION

main90919-02272i201609-201904

9167180635

main91671-80635

3 parts on this diagram · 1 diagram in section
