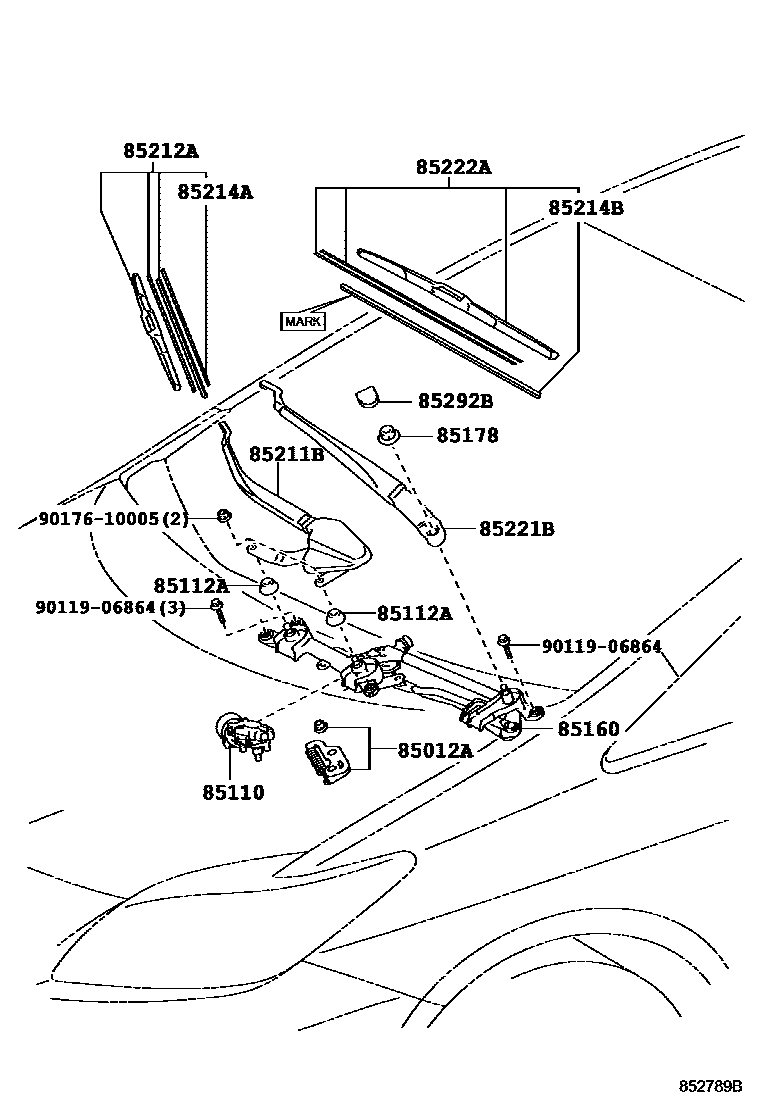

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iZVW35201201-201506

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47240iZVW35201304-201406

main85110-47280iZVW35201406-201506

main85110-50140iZVW35201201-201303

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-47010×2iZVW35201201-201506

85160LINK ASSY, WINDSHIELD WIPER

main85150-47140iZVW35201201-201506

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iZVW35201201-201207

main90182-10006iZVW35201207-201506

85211BARM, FRONT WIPER, RH

main85211-47100iZVW35201201-201506

85212ABLADE, FR WIPER, RH

main85212-47040iZVW35201201-201506

85214ARUBBER, WIPER, RH

main85214-30390iZVW35201201-201506

85214BRUBBER, WIPER, LH

main85214-52110iZVW35201405-201506

MARK=352

main85214-68020iZVW35201201-201405

MARK=244

85221BARM, FRONT WIPER, LH

main85221-47090iZVW35201201-201506

85222ABLADE, FR WIPER, LH

main85222-47100iZVW35201302-201405

MARK=244

main85222-47101iZVW35201405-201506

MARK=352

main85222-75011iZVW35201201-201301

MARK=244

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW35201201-201506

9011906864

main90119-06864

9017610005

main90176-10005

14 parts on this diagram · 1 diagram in section
