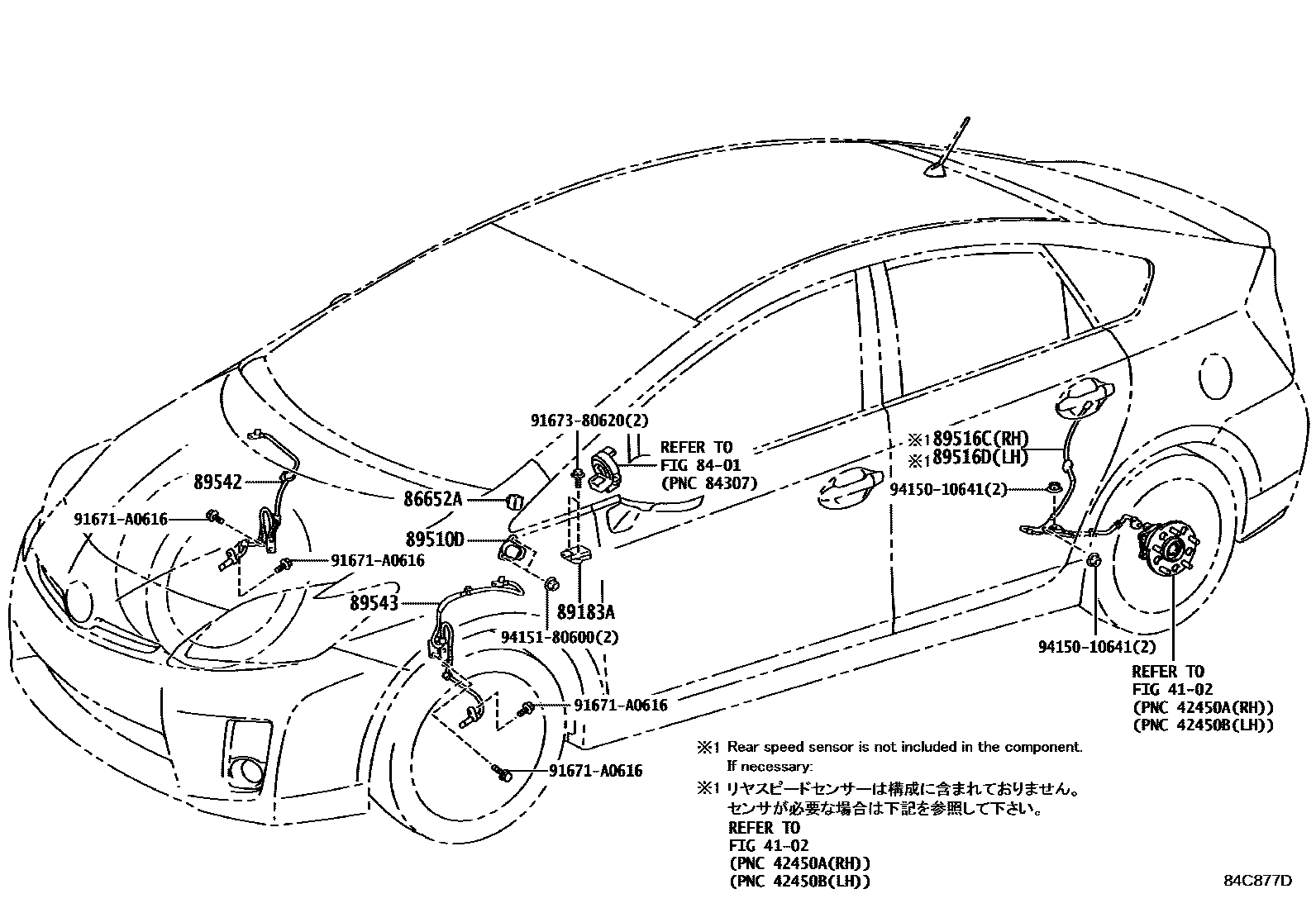

ABS & VSC
4102REAR AXLE SHAFT & HUB
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH); SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
89183ASENSOR, YAWRATE
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
91671A0616
main91671-A0616
9167380620
main91673-80620
9415010641
main94150-10641
9415180600
main94151-80600
13 parts on this diagram · 1 diagram in section
