CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011i201201-201506

CRUISE CONTROL-WITH(ELECTRIC TYPE)

main84632-58011i201201-201506

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH); PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020i201201-201506

CRUISE CONTROL-WITH(ELECTRIC TYPE)

main84633-48010i201201-201506

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH); PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-47060i201201-201210

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),MARK=88210-47060; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),MARK=88210-47060

main88210-47061i201210-201506

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),MARK=88210-47061; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),MARK=88210-47061

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-47010i201201-201506

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH); PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

88215ABRACKET, MILLIMETER WAVE RADAR SENSOR, NO.2

main88215-47020i201201-201506

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH); PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

9011906508

main90119-06508

9011906911

main90119-06911

9015950199

main90159-50199

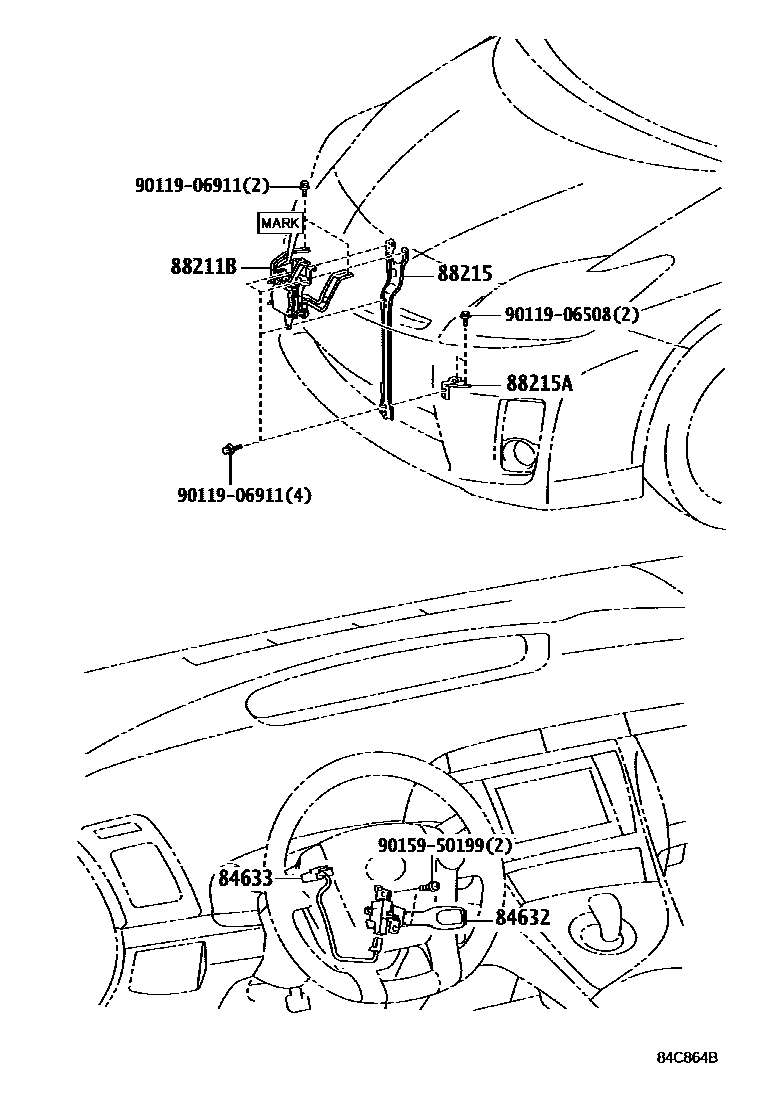

8 parts on this diagram · 1 diagram in section
