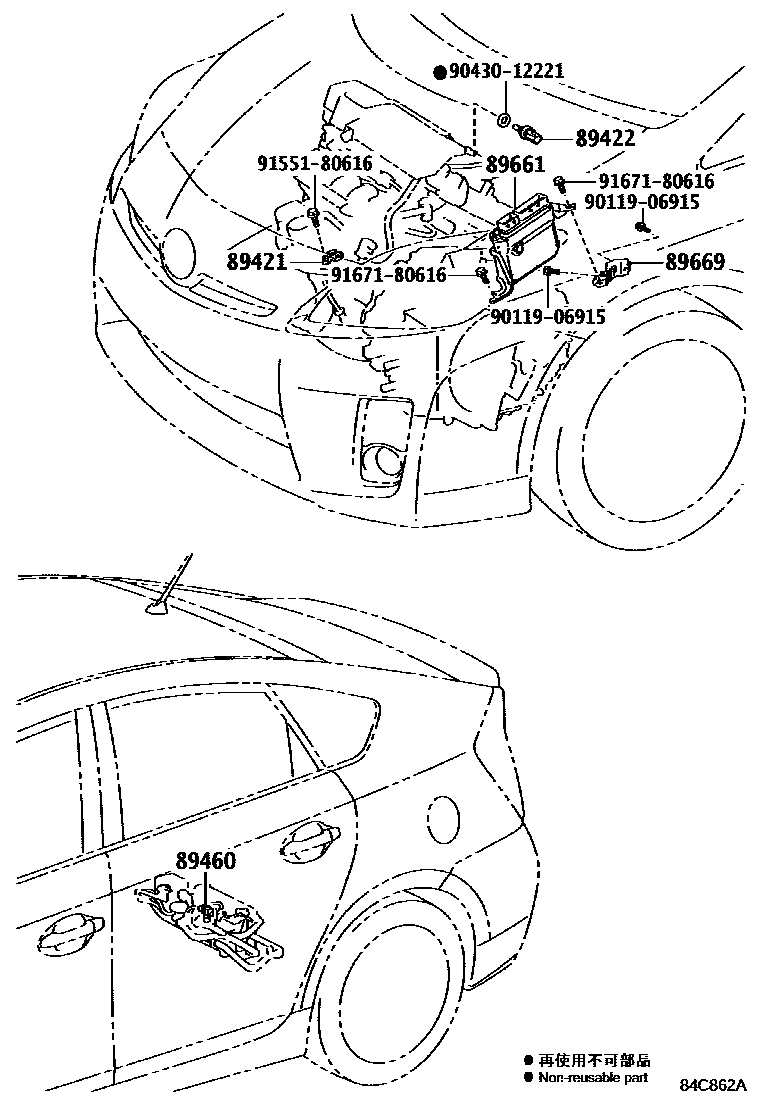

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW35201201-201506

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW35201201-201506

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iZVW35201201-201506

89661COMPUTER, ENGINE CONTROL

main89660-47590iZVW35201201-201309

main89660-47591iZVW35201309-201310

main89660-47740iZVW35201310-201506

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW35201201-201506

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section
