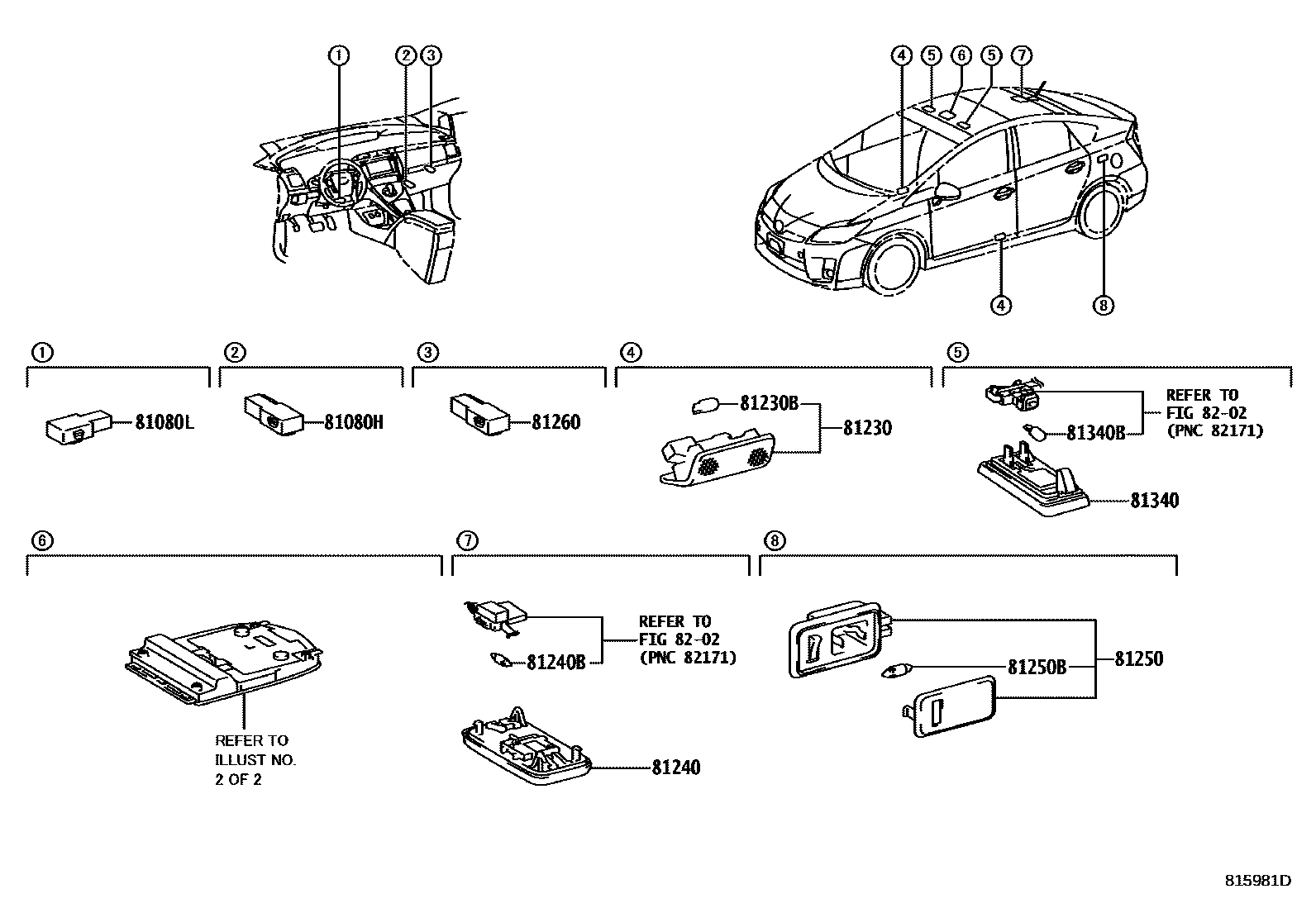

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iZVW35..G; ZVW35..S201201-201506

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iZVW35..G; ZVW35..S201201-201506

SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)

81230LAMP ASSY, COURTESY

main81230-30200×2iZVW35201306-201506

main81230-47010×2iZVW35201201-201305

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZVW35201201-201506

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B0iZVW35..G,S; ZVW35..L201201-201506

LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW35201201-201506

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZVW35201201-201504

main81330-58010iZVW35201505-201506

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZVW35201505-201506

12V 5W

main99132-13050iZVW35201201-201505

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZVW35201201-201506

81340LAMP ASSY, VANITY

main81340-30110×2iZVW35201201-201506

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZVW35201201-201506

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

12 parts on this diagram · 2 diagrams in section
