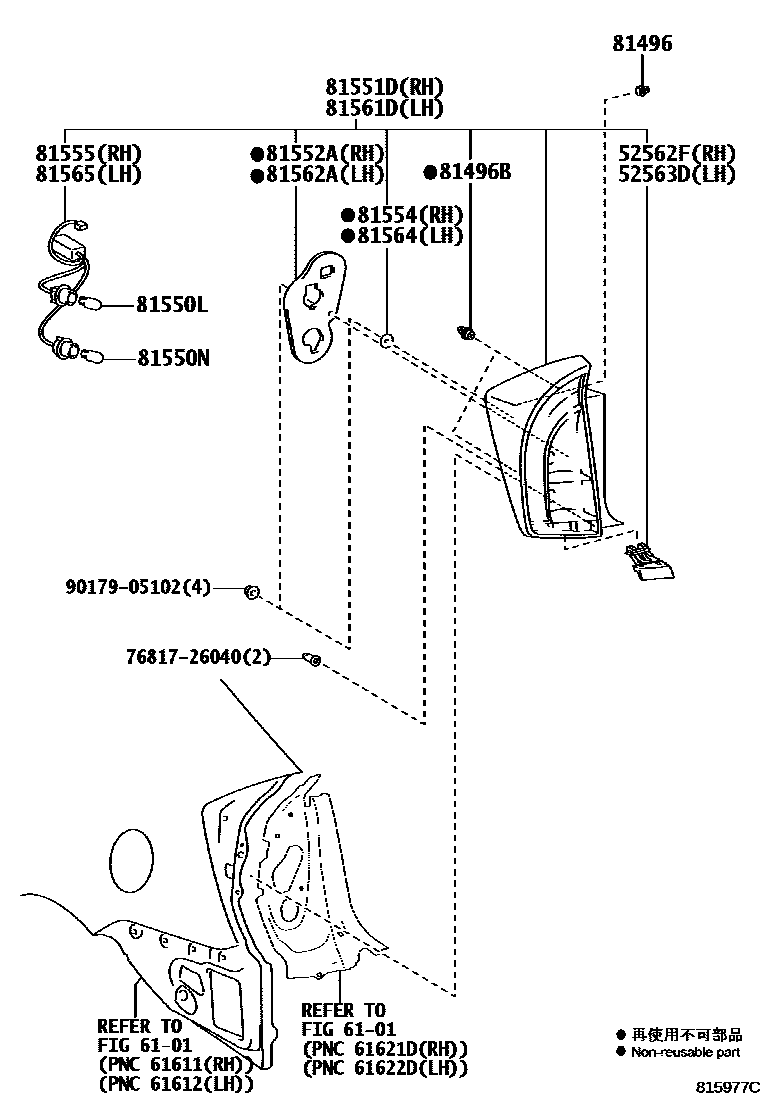

REAR COMBINATION LAMP
52562FRETAINER, REAR BUMPER, UPPER SIDE
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
main76817-26040
9017905102
main90179-05102
17 parts on this diagram · 1 diagram in section
