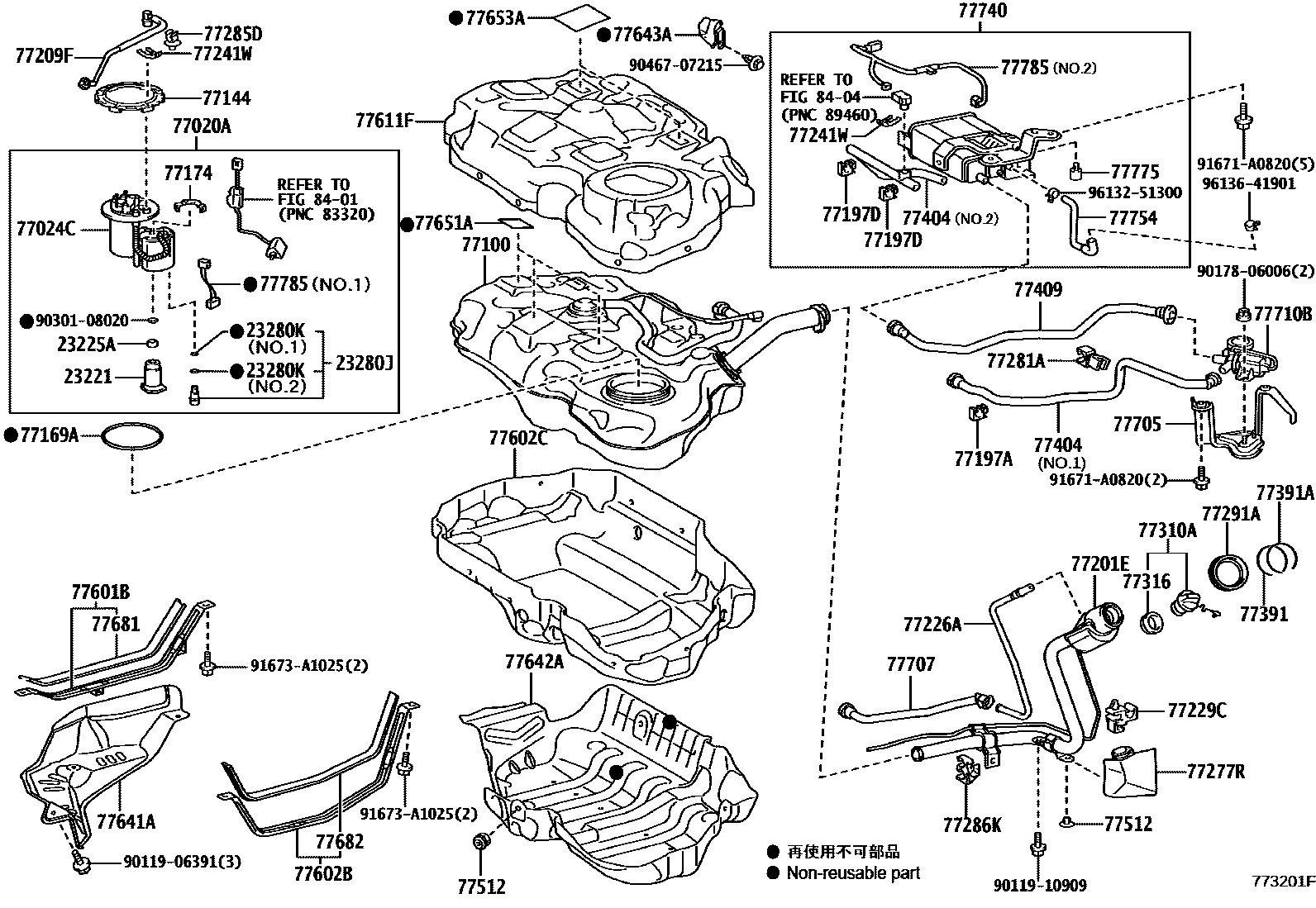

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23221PUMP, FUEL

main23220-47011i2ZRFXE..ZVW35201201-201506

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVW35201201-201506

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVW35201201-201506

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVW35201201-201506

NO.1

main90301-15024i2ZRFXE..ZVW35201201-201506

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-47081iZVW35201201-201506

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-47030iZVW35201201-201506

77100TANK ASSY, FUEL

main77001-47210iZVW35201201-201506

77144RETAINER, FUEL PUMP GAUGE

main77144-47041iZVW35201201-201506

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iZVW35201201-201506

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iZVW35201201-201506

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42020iZVW35201201-201506

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42020×3iZVW35201201-201506

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-47220iZVW35201201-201506

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47051iZVW35201201-201506

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47050iZVW35201201-201404

main77226-47051iZVW35201405-201506

77229CCLAMP, BREATHER TUBE

main77229-47120iZVW35201201-201506

77241WCLIP, TUBE JOINT

main77241-33011iZVW35201201-201506

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-47050iZVW35201201-201506

77281ACLAMP, FUEL FILLER PIPE

main77281-47130iZVW35201201-201506

77285DCLAMP, FUEL TUBE, NO.1

main77285-47090iZVW35201201-201506

77286KCLAMP, FUEL TUBE, NO.2

main77286-47040iZVW35201201-201506

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47030iZVW35201201-201506

77310ACAP ASSY, FUEL TANK

main77300-47050iZVW35201201-201310

main77300-53040iZVW35201310-201506

77316GASKET, FUEL TANK CAP

main77316-75020iZVW35201201-201506

77391RING, FUEL INLET BOX

main77391-12020iZVW35201201-201506

77391ARING, FUEL INLET BOX

main77391-44020iZVW35201201-201506

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-47150iZVW35201201-201506

NO.1

main77404-47160iZVW35201201-201506

NO.2

77409HOSE SUB-ASSY, FUEL, NO.3

main77409-47010iZVW35201201-201506

77512BRACKET, FUEL TANK, REAR

main77512-35140×2iZVW35201201-201506

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-47090iZVW35201201-201506

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-47090iZVW35201201-201506

77602CCOVER SUB-ASSY, FUEL TANK, LOWER

main77602-47080iZVW35201201-201506

77611FCOVER, FUEL TANK, UPPER

main77611-47060iZVW35201201-201506

77641APROTECTOR, FUEL TANK, NO.1

main77641-47020iZVW35201201-201506

77642APROTECTOR, FUEL TANK, NO.2

main77641-47050iZVW35201201-201506

77643APROTECTOR, FUEL TANK, NO.3

main77642-47040iZVW35201201-201506

77651ACUSHION, FUEL TANK, NO.1

main77651-12070×3iZVW35201201-201506

77653ACUSHION, FUEL TANK, NO.3

main77653-36010×2iZVW35201201-201506

77681SEAT, FUEL TANK BAND, RH

main77681-47020iZVW35201201-201506

77682SEAT, FUEL TANK BAND, LH

main77682-47020iZVW35201201-201506

77705BRACKET SUB-ASSY, CHARCOAL CANISTER

main77705-47010iZVW35201201-201506

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-47020iZVW35201201-201506

77710BVALVE ASSY, FUEL TANK SOLENOID MAIN

main77710-47030iZVW35201201-201506

77740CANISTER ASSY, CHARCOAL

main77740-47100iZVW35201201-201506

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-47080iZVW35201201-201506

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-47010iZVW35201201-201506

77785HARNESS, FUEL PUMP

main77785-12010iZVW35201201-201506

NO.1

main77785-47040iZVW35201201-201506

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906391

main90119-06391

9011910909

main90119-10909

9017806006

main90178-06006

9030108020

main90301-08020

9046707215

main90467-07215

91671A0820

main91671-A0820

91673A1025

main91673-A1025

9613251300

main96132-51300

9613641901

main96136-41901

58 parts on this diagram · 3 diagrams in section
