SEAT BELT & CHILD RESTRAINT SEAT

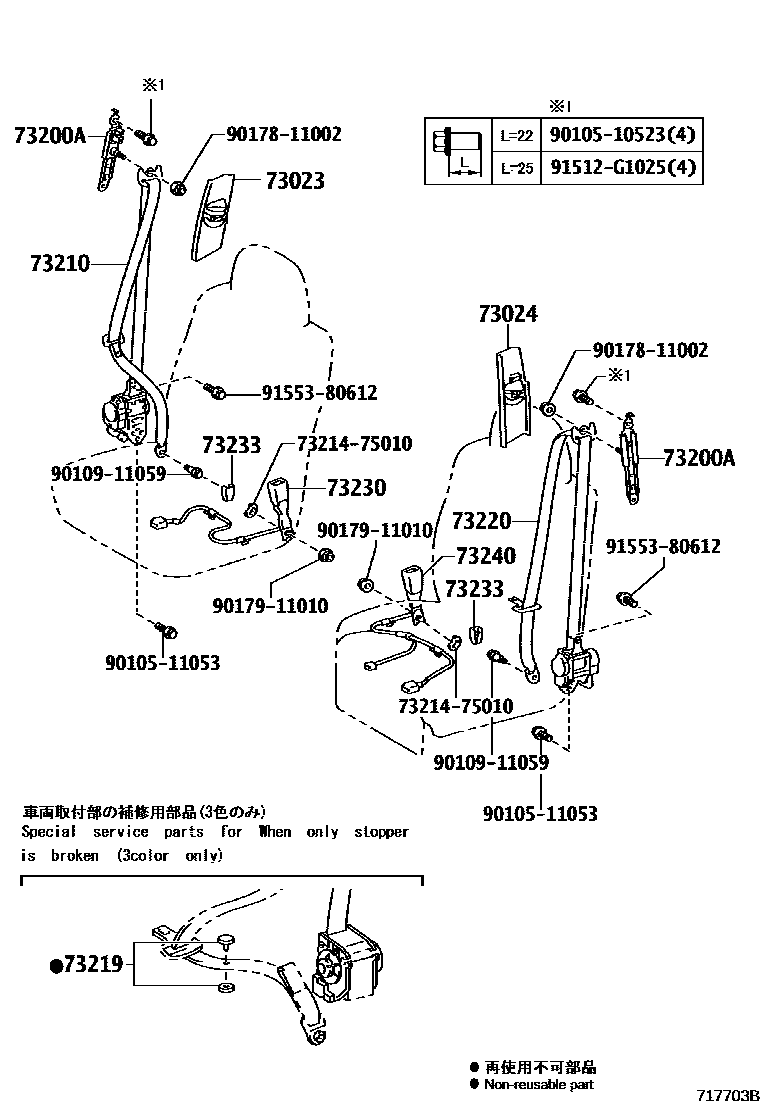

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53020-B0i201201-201506
LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53020-B0i201201-201506
LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010×2i201201-201505
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47122-B1i201201-201310
GRAY/LT.GRAY,TRIM1#,6#
main73210-47122-B2i201201-201310
GREGE/LT.GRAY,TRIM4#
main73210-47230-B0i201310-201506
GRAY/LT.GRAY,TRIM1#; GRAY/LT.GRAY,TRIM1#,6#
main73210-47132-B1i201201-201310
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GRAY/LT.GRAY,TRIM1#,6#
main73210-47132-B2i201201-201310
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GREGE/LT.GRAY,TRIM4#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GREGE/LT.GRAY,TRIM4#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GREGE/LT.GRAY,TRIM4#
main73210-47240-B0i201310-201506
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GRAY/LT.GRAY,TRIM1#,6#
73219STOPPER, TONGUE PLATE
main73219-02010i201201-201506
BLACK
main73219-02020i201201-201506
GRAY
main73219-02030i201201-201506
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47092-B1i201201-201310
GRAY/LT.GRAY,TRIM1#,6#
main73220-47092-B2i201201-201310
GREGE/LT.GRAY,TRIM4#
main73220-47180-B0i201310-201506
GRAY/LT.GRAY,TRIM1#; GRAY/LT.GRAY,TRIM1#,6#
main73220-47102-B1i201201-201310
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GRAY/LT.GRAY,TRIM1#,6#
main73220-47102-B2i201201-201310
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GREGE/LT.GRAY,TRIM4#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GREGE/LT.GRAY,TRIM4#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GREGE/LT.GRAY,TRIM4#
main73220-47190-B0i201310-201506
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GRAY/LT.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),GRAY/LT.GRAY,TRIM1#,6#
73230BELT ASSY, FRONT SEAT INNER, RH
main73240-47080-B0i201201-201310
MD.GRAY,TRIM1#,6#
main73240-47080-E0i201201-201310
GREGE,TRIM4#
main73240-47160-B0i201310-201506
MD.GRAY,TRIM1#; MD.GRAY,TRIM1#,6#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C0×2i201201-201506
BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM1#,4#,6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-47240-B0i201201-201310
MD.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,MD.GRAY,TRIM1#,6#; SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-*DA SDARS *BT USB 6SPEAKER,MD.GRAY,TRIM1#,6#
main73230-47240-E0i201201-201310
GREGE,TRIM4#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,GREGE,TRIM4#; SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-*DA SDARS *BT USB 6SPEAKER,GREGE,TRIM4#
main73230-47260-B0i201201-201310
MD.GRAY,TRIM1#,6#
main73230-47260-E0i201201-201310
GREGE,TRIM4#
main73230-47360-B0i201310-201506
MD.GRAY,TRIM1#; MD.GRAY,TRIM1#,6#
main73230-47370-B0i201310-201506
MD.GRAY,TRIM1#,6#; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-AVN SDARS *BT USB JBL 8SPEAKER,MD.GRAY,TRIM1#,6#; SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO-*DA SDARS *BT USB 6SPEAKER,MD.GRAY,TRIM1#,6#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
91512G1025
main91512-G1025
9155380612
main91553-80612

17 parts on this diagram · 2 diagrams in section
