REAR SEAT & SEAT TRACK

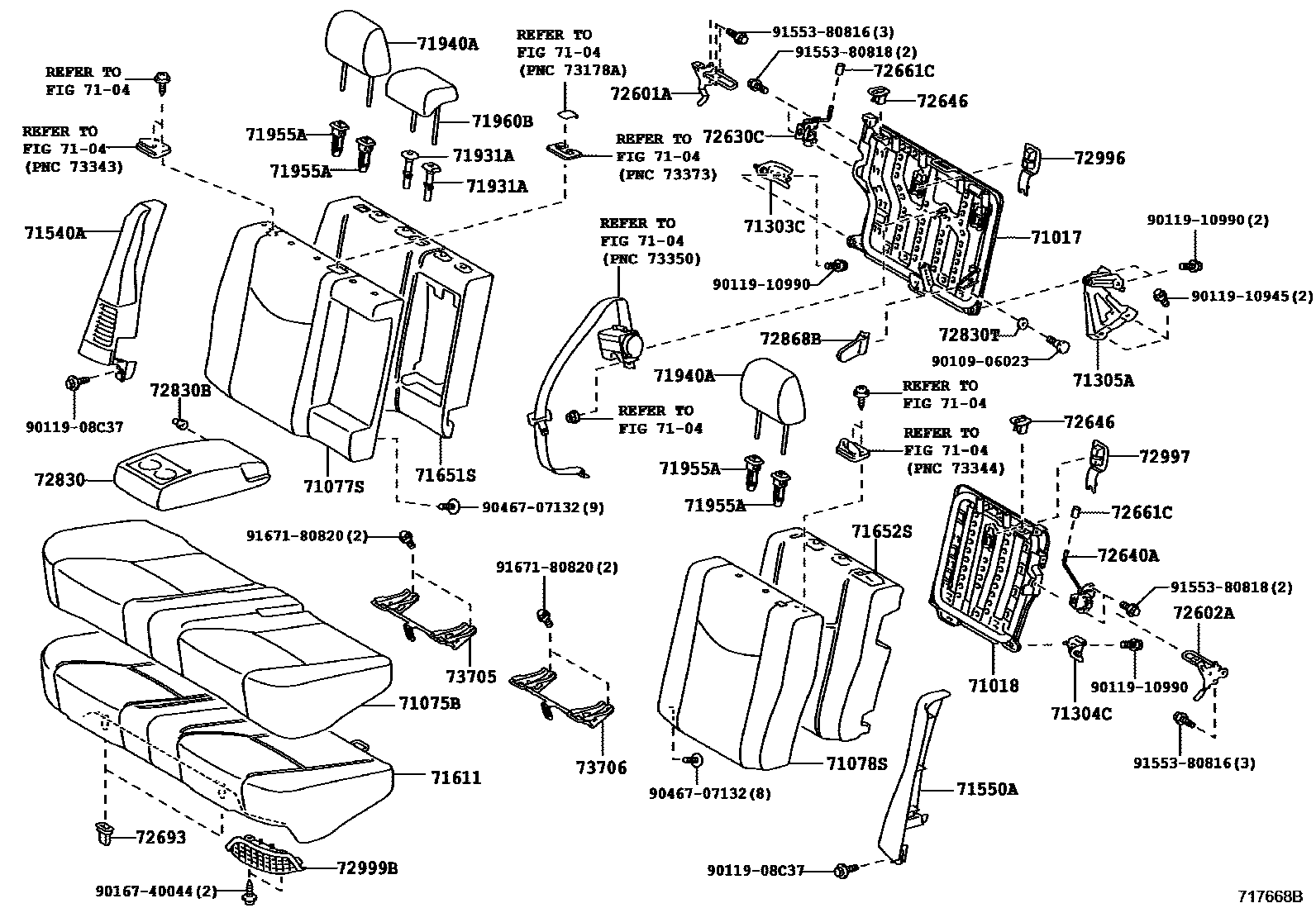

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-47100i201201-201506
main71017-47140i201201-201506
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-47050i201201-201506
main71018-47060i201201-201506
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-47240-B2i201201-201506
MD.GRAY,TRIM1#
main71075-47240-E2i201201-201310
GREGE,TRIM4#
main71075-47240-G2i201201-201506
AQUA,TRIM6#
main71075-47270-B5i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
main71075-47270-E4i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
main71075-47270-G5i201201-201506
AQUA,TRIM6#; FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-47252-B5i201201-201506
MD.GRAY/LT.GRAY,TRIM1#
main71077-47252-E5i201201-201310
GREGE/LT.GRAY,TRIM4#
main71077-47252-G6i201201-201506
AQUA/LT.GRAY,TRIM6#
main71077-47332-B1i201201-201506
MD.GRAY/LT.GRAY,TRIM1#
main71077-47381-B6i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
main71077-47381-E6i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
main71077-47381-G6i201201-201506
AQUA,TRIM6#; FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-47171-B5i201201-201506
MD.GRAY/LT.GRAY,TRIM1#
main71078-47171-E5i201201-201310
GREGE/LT.GRAY,TRIM4#
main71078-47171-G6i201201-201506
AQUA/LT.GRAY,TRIM6#
main71078-47211-B1i201201-201506
MD.GRAY/LT.GRAY,TRIM1#
main71078-47250-B5i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
main71078-47250-E3i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
main71078-47250-G3i201201-201506
AQUA,TRIM6#; FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-47020i201201-201506
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-47020i201201-201506
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-47030i201201-201506
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-47040-B3i201201-201504
MD.GRAY,TRIM1#
main71540-47040-E3i201201-201310
GREGE,TRIM4#
main71540-47040-G3i201201-201504
AQUA,TRIM6#
main71540-47041i201505-201506
main71540-47061-B5i201201-201504
GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71540-47061-E4i201201-201310
GREGE,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71540-47061-G9i201201-201504
AQUA,TRIM6#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
main71540-47062i201505-201506
SEAT COVER MATERIAL-SYNTHETIC LEATHER
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-47040-B3i201201-201506
MD.GRAY,TRIM1#
main71550-47040-E3i201201-201310
GREGE,TRIM4#
main71550-47040-G3i201201-201506
AQUA,TRIM6#
main71550-47061-B5i201201-201506
GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71550-47061-E4i201201-201310
GREGE,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71550-47061-G9i201201-201506
AQUA,TRIM6#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71611PAD, REAR SEAT CUSHION
main71503-47110i201201-201506
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-47130i201201-201506
main71651-47140i201201-201506
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-47060i201201-201506
main71652-47070i201201-201506
71931ASUPPORT, REAR SEAT HEADREST
main71930-47020-B0×3i201201-201506
W(LOCK),MD.GRAY,TRIM1#
main71930-47020-E0i201201-201310
W(LOCK),GREGE,TRIM4#
main71930-47020-G0i201201-201506
W(LOCK),AQUA,TRIM6#
main71931-47020-B0i201201-201506
W/O(LOCK),MD.GRAY,TRIM1#
main71931-47020-E0i201201-201310
W/O(LOCK),GREGE,TRIM4#
main71931-47020-G0i201201-201506
W/O(LOCK),AQUA,TRIM6#
71940AHEADREST ASSY, REAR SEAT
main71940-47131-B1×2i201201-201506
MD.GRAY,TRIM1#
main71940-47131-E1×2i201201-201310
GREGE,TRIM4#
main71940-47131-G1×2i201201-201506
AQUA,TRIM6#
main71940-47171-B0×2i201201-201506
MD.GRAY,TRIM1#
main71940-47240-B3×2i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
main71940-47240-E4×2i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
main71940-47240-G4×2i201201-201506
AQUA,TRIM6#; FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71955ASUPPORT, REAR SEAT HEADREST
main71955-47010-B0×4i201201-201506
MD.GRAY,TRIM1#
main71955-47010-E0×4i201201-201310
GREGE,TRIM4#
main71955-47010-G0×4i201201-201506
AQUA,TRIM6#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-47070-B2i201201-201506
MD.GRAY,TRIM1#
main71960-47070-E2i201201-201310
GREGE,TRIM4#
main71960-47070-G2i201201-201506
AQUA,TRIM6#
main71960-47140-B3i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
main71960-47140-E5i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
main71960-47140-G5i201201-201506
AQUA,TRIM6#; FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
main72601-47030i201201-201506
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
main72602-47020i201201-201506
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47030i201201-201203
main72630-47031i201204-201506
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47030i201201-201203
main72640-47031i201204-201506
72646GROMMET, REAR SEATBACK STOP BUTTON
main72646-47010-B0×2i201201-201506
MD.GRAY,TRIM1#
main72646-47010-E0×2i201201-201310
GREGE,TRIM4#
main72646-47010-G0×2i201201-201506
AQUA,TRIM6#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
main72661-13030-B7×2i201201-201506
MD.GRAY,TRIM1#
main72661-13030-E2×2i201201-201310
GREGE,TRIM4#
main72661-13030-G1×2i201201-201506
AQUA,TRIM6#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i201201-201506
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-47080-B1i201201-201506
MD.GRAY,TRIM1#
main72830-47080-E1i201201-201310
GREGE,TRIM4#
main72830-47080-G1i201201-201506
AQUQ,TRIM6#
main72830-47160-B1i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#
main72830-47160-E1i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#; GREGE,TRIM4#
72830BBUSH(FOR REAR SEAT CENTER ARMREST)
main72622-47010i201201-201506
72830TBUSH (FOR REAR SEAT CENTER ARMREST)
main72622-47020i201201-201506
72868BCOVER, CENTER ARMREST HINGE
main72868-47020-B0i201201-201506
MD.GRAY,TRIM1#
main72868-47020-E0i201201-201310
GREGE,TRIM4#
main72868-47020-G0i201201-201506
AQUA,TRIM6#
72996COVER, REAR SEATBACK, RH
main72996-47030-B0×2i201201-201506
LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#
72997COVER, REAR SEATBACK, LH
main72996-47030-B0i201201-201506
LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#
72999BCOVER, REAR SEAT CUSHION SIDE, LH
main72999-47040-B0i201201-201506
MD.GRAY,TRIM1#
main72999-47040-E0i201201-201310
GREGE,TRIM4#
main72999-47040-G0i201201-201506
AQUA,TRIM6#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-47040i201201-201506
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-47050i201201-201506
9010906023
main90109-06023
9011908C37
main90119-08C37
9011910945
main90119-10945
9011910990
main90119-10990
9016740044
main90167-40044
9046707132
main90467-07132
9155380816
main91553-80816
9155380818
main91553-80818
9167180820
main91671-80820
