FRONT SEAT & SEAT TRACK

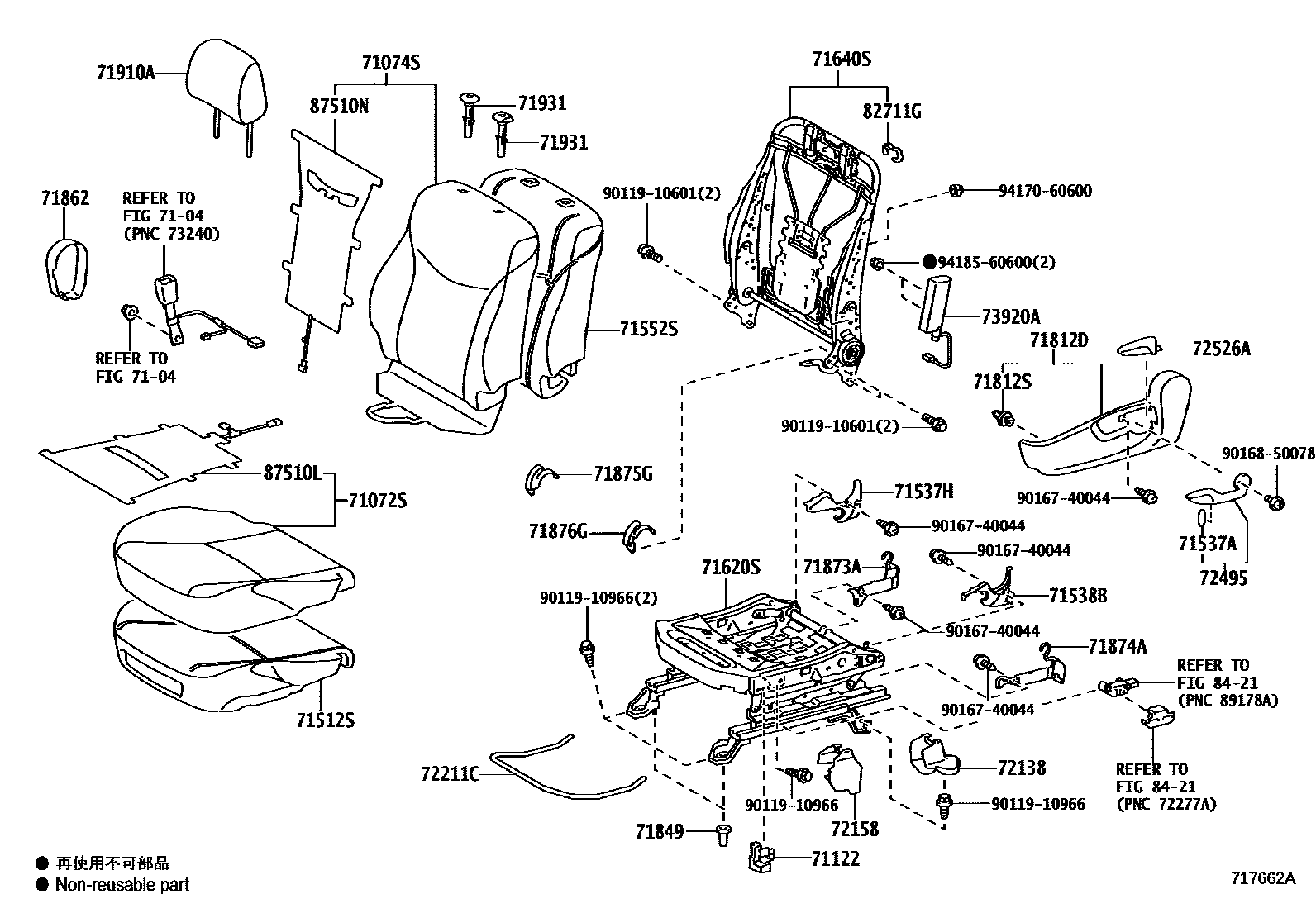

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-47430-B2i201201-201506
MD.GRAY,TRIM1#
main71072-47430-E2i201201-201310
GREGE,TRIM4#
main71072-47430-G2i201201-201506
AQUA,TRIM6#
main71072-47480-B4i201201-201506
GRAY,TRIM1#
main71072-47480-B4i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71072-47480-E3i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71072-47480-E3i201201-201310
GREGE,TRIM4#
main71072-47480-G4i201201-201506
AQUA,TRIM6#
main71072-47480-G4i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-47270-B2i201201-201310
MD.GRAY,TRIM1#
main71074-47270-E2i201201-201310
GREGE,TRIM4#
main71074-47270-G2i201201-201310
AQUA,TRIM6#
main71074-47271-B3i201310-201506
MD.GRAY,TRIM1#
main71074-47271-G3i201310-201506
AQUA,TRIM6#
main71074-47310-B3i201201-201303
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71074-47310-B3i201201-201303
GRAY,TRIM1#
main71074-47310-E3i201201-201303
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71074-47310-E3i201201-201303
GREGE,TRIM4#
main71074-47310-G4i201201-201303
AQUA,TRIM6#
main71074-47310-G4i201201-201303
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
main71074-47311-B3i201303-201310
GRAY,TRIM1#
main71074-47311-B3i201303-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71074-47311-E3i201303-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71074-47311-E3i201303-201310
GREGE,TRIM4#
main71074-47311-G4i201303-201310
AQUA,TRIM6#
main71074-47311-G4i201303-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
main71074-47312-B4i201310-201506
GRAY,TRIM1#
main71074-47312-B4i201310-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71074-47312-G5i201310-201506
AQUA,TRIM6#
main71074-47312-G5i201310-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71122BRACKET, FRONT SEAT CUSHION, LH
main71122-47010i201201-201506
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-47070i201201-201506
main71512-47110i201301-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71512-47190i201201-201301
SEAT COVER MATERIAL-SYNTHETIC LEATHER
71537APROTECTOR, FRONT SEAT CUSHION
main71537-47040i201201-201506
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-47010-B0i201201-201506
MD.GRAY,TRIM1#
main71537-47010-E0i201201-201310
GREGE,TRIM4#
main71537-47010-G0i201201-201506
AQUA,TRIM6#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-47010-B0i201201-201506
MD.GRAY,TRIM1#
main71538-47010-E0i201201-201310
GREGE,TRIM4#
main71538-47010-G0i201201-201506
AQUA,TRIM6#
main71538-52050-B0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MD.GRAY,TRIM1#
main71538-52050-B0i201201-201506
MD.GRAY,TRIM1#
main71538-52050-E0i201201-201310
GREGE,TRIM4#
main71538-52050-E0i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71538-52050-G0i201201-201506
AQUA,TRIM6#
main71538-52050-G0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-47140i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71552-47160i201201-201506
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-47130i201201-201209
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71620-47131i201209-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
main71620-47190i201201-201209
main71620-47191i201209-201506
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-47020i201201-201506
main71640-47110i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-47100-B0i201201-201506
MD.GRAY,TRIM1#
main71812-47100-E0i201201-201310
GREGE,TRIM4#
main71812-47100-G0i201201-201506
AQUA,TRIM6#
main71812-47120-B0i201201-201506
MD.GRAY,TRIM1#
main71812-47120-B0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MD.GRAY,TRIM1#
main71812-47120-E0i201201-201310
GREGE,TRIM4#
main71812-47120-E0i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71812-47120-G0i201201-201506
AQUA,TRIM6#
main71812-47120-G0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
main71769-47020i201201-201506
71849CAP, SEAT ADJUSTER COVER, LH
main71848-47010i201201-201506
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47040-B0i201201-201506
MD.GRAY,TRIM1#
main71862-47040-E0i201201-201310
GREGE,TRIM4#
main71862-47040-G0i201201-201506
AQUA,TRIM6#
main71862-76010-B0i201201-201506
MD.GRAY,TRIM1#
main71862-76010-B0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MD.GRAY,TRIM1#
main71862-76010-E0i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71862-76010-E0i201201-201310
GREGE,TRIM4#
main71862-76010-G0i201201-201506
AQUA,TRIM6#
main71862-76010-G0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-47040i201201-201506
main71873-60030i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47040i201201-201506
main71874-60110i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-47030-B0i201201-201506
MD.GRAY,TRIM1#
main71875-47030-E0i201201-201310
GREGE,TRIM4#
main71875-47030-G0i201201-201506
AQUA,TRIM6#
main71875-60210-B1i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MD.GRAY,TRIM1#
main71875-60210-B1i201201-201506
MD.GRAY,TRIM1#
main71875-60210-E4i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71875-60210-E4i201201-201310
GREGE,TRIM4#
main71875-60210-G0i201201-201506
AQUA,TRIM6#
main71875-60210-G0i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47030-B0i201201-201506
MD.GRAY,TRIM1#
main71876-47030-E0i201201-201310
GREGE,TRIM4#
main71876-47030-G0i201201-201506
AQUA,TRIM6#
71910AHEADREST ASSY, FRONT SEAT
main71910-47110-B1i201201-201506
MD.GRAY,TRIM1#
main71910-47110-E1i201201-201310
GREGE,TRIM4#
main71910-47110-G2i201201-201506
AQUA,TRIM6#
main71910-47180-B4i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#
main71910-47180-B4i201201-201506
GRAY,TRIM1#
main71910-47180-E6i201201-201310
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
main71910-47180-E6i201201-201310
GREGE,TRIM4#
main71910-47180-G6i201201-201506
AQUA,TRIM6#
main71910-47180-G6i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-B0i201201-201506
W(LOCK),MD.GRAY,TRIM1#
main71930-47020-E0i201201-201310
W(LOCK),GREGE,TRIM4#
main71930-47020-G0i201201-201506
W(LOCK),AQUA,TRIM6#
main71931-47020-B0i201201-201506
W/O(LOCK),MD.GRAY,TRIM1#
main71931-47020-E0i201201-201310
W/O(LOCK),GREGE,TRIM4#
main71931-47020-G0i201201-201506
W/O(LOCK),AQUA,TRIM6#
72138COVER, SEAT TRACK, OUTER LH
main72138-47040-B0i201201-201506
MD.GRAY,TRIM1#
main72138-47040-C0i201201-201506
BLACK,TRIM2#,4#,6#
main72138-47040-C0i201201-201506
BLACK,TRIM4#,6#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-47040-B0i201201-201506
MD.GRAY,TRIM1#
main72158-47040-C0i201201-201506
BLACK,TRIM2#,4#,6#
main72158-47040-C0i201201-201506
BLACK,TRIM4#,6#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-47020i201201-201506
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47020i201201-201506
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-47010-B0i201201-201506
MD.GRAY,TRIM1#
main72495-47010-E0i201201-201310
GREGE,TRIM4#
main72495-47010-G0i201201-201506
AQUA,TRIM6#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-47010-B0i201201-201506
MD.GRAY,TRIM1#
main72526-47010-E0i201201-201310
GREGE,TRIM4#
main72526-47010-G0i201201-201506
AQUA,TRIM6#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-47040i201201-201506
82711GCLAMP, WIRING HARNESS
main82711-12120i201201-201506
8421AIR BAG
→ Go to FIG 84-21
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-47070i201201-201506
main87510-47090i201201-201506
FRONT SEAT-*PSE(*DRS),OCCUPANT DETECTION(*PAS)&SEAT COVER MATERIAL-SYNTHETIC LEATHER
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-47030i201201-201506
9011910601
main90119-10601
9011910966
main90119-10966
9016740044
main90167-40044
9016850078
main90168-50078
9417060600
main94170-60600
9418560600
main94185-60600

38 parts on this diagram · 4 diagrams in section
