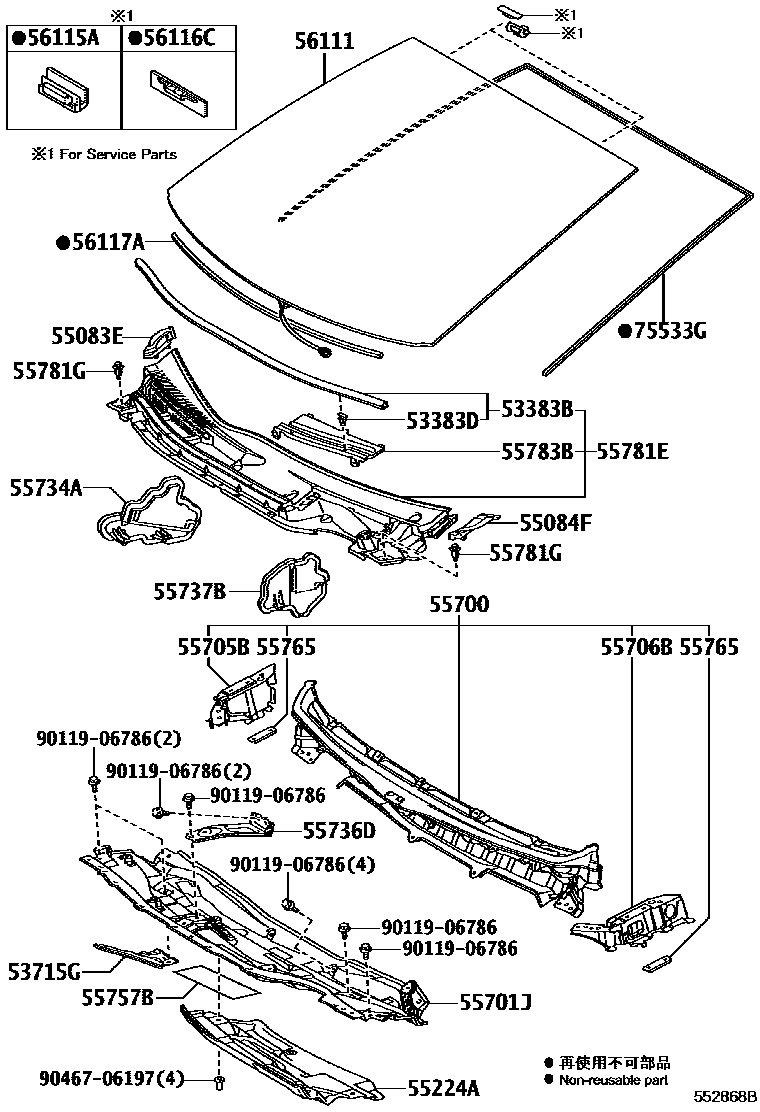

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700PANEL ASSY, FRONT
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55757BSHEET COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN; *LAM,T=4.56,GREEN,AUDIO-*DA SDARS *BT USB 6SPEAKER; *LAM,T=4.56,GREEN,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN; *LAM,T=4.56,GREEN,AUDIO-*DA SDARS *BT USB 6SPEAKER; *LAM,T=4.56,GREEN,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN,AUDIO-*DA SDARS *BT USB 6SPEAKER; *LAM,T=4.56,GREEN,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1227; L=1227,AUDIO-*DA SDARS *BT USB 6SPEAKER; L=1227,AUDIO-AVN SDARS *BT USB JBL 8SPEAKER
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9046706197
main90467-06197
25 parts on this diagram · 1 diagram in section
