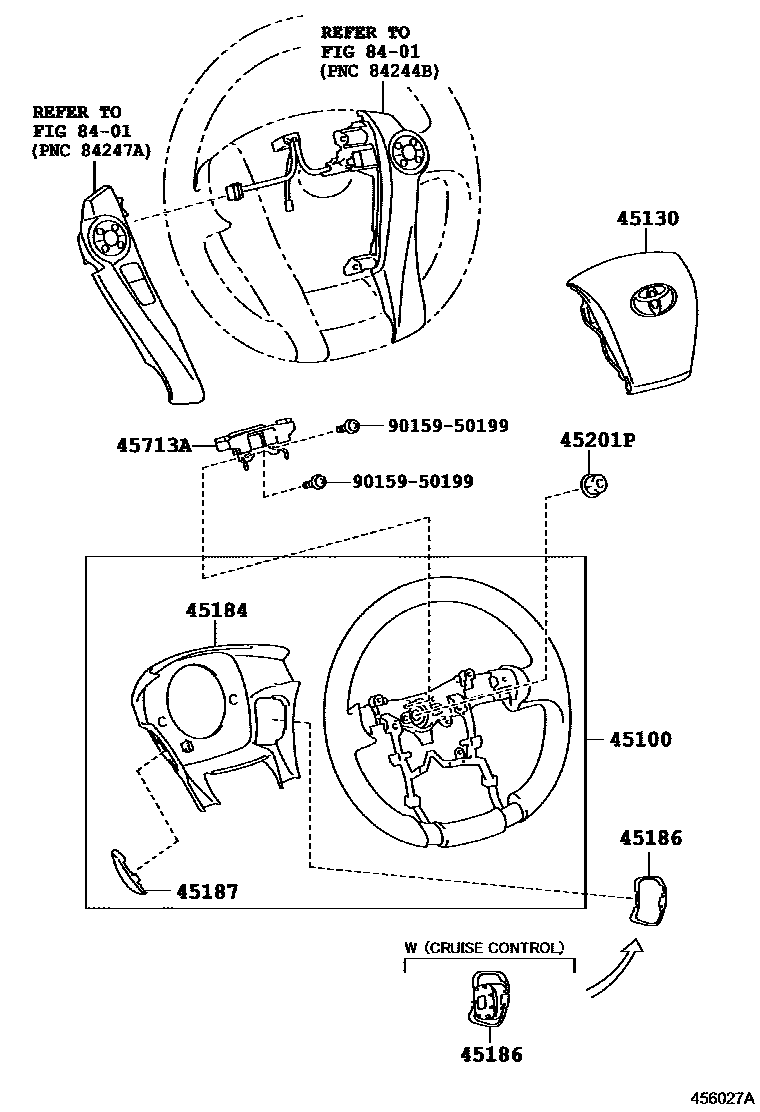

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM1#,2#,4#,6#; 4-SPOKE,URETHANE,BLACK,TRIM1#,4#,6#
4-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#,6#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,4#,6#
45130BUTTON ASSY, HORN
BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM1#,4#,6#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM1#,4#,6#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM1#,2#,4#,6#; CRUISE CONTROL-WITH(ELECTRIC TYPE),BLACK,TRIM1#,4#,6#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM1#,2#,4#,6#; BLACK,TRIM1#,4#,6#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
9015950199
main90159-50199
9 parts on this diagram · 1 diagram in section
