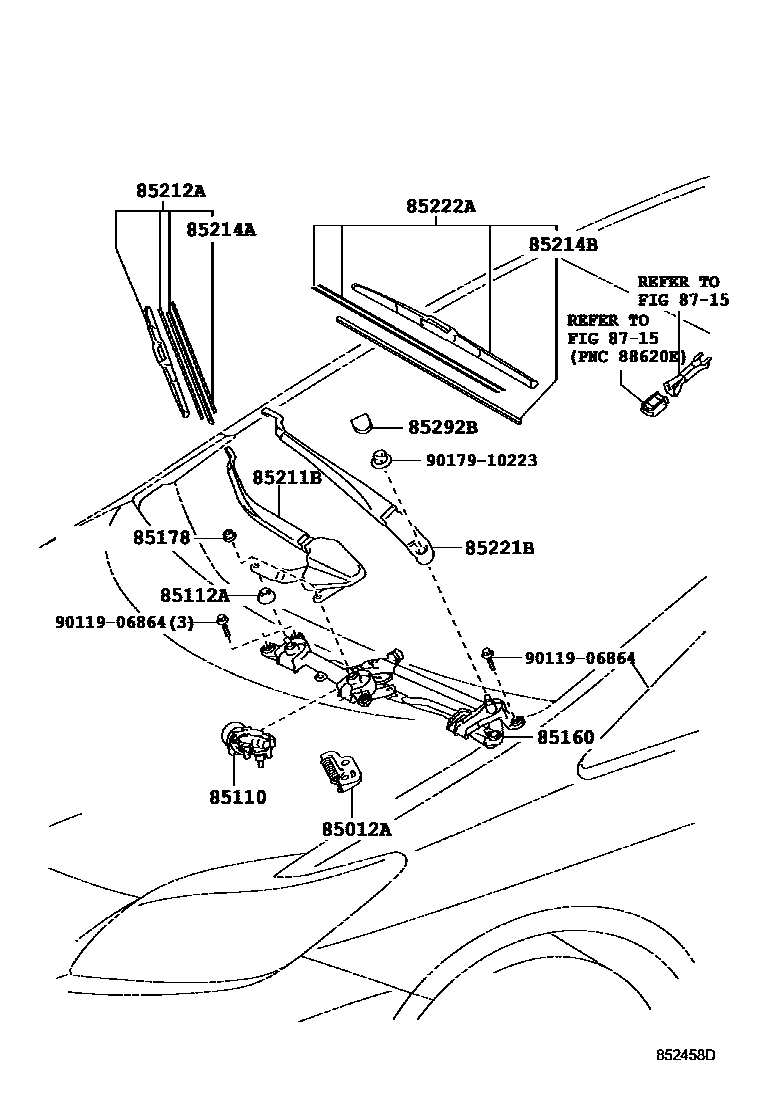

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iZVW35200912

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50140iZVW35200912

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-47010×2iZVW35200912

85160LINK ASSY, WINDSHIELD WIPER

main85150-47140iZVW35200912

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iZVW35200912

85211BARM, FRONT WIPER, RH

main85211-47100iZVW35200912-201010

85212ABLADE, FR WIPER, RH

main85212-47040iZVW35200912-201010

85214ARUBBER, WIPER, RH

main85214-30390iZVW35200912

85214BRUBBER, WIPER, LH

main85214-68020iZVW35200912

85221BARM, FRONT WIPER, LH

main85221-47090iZVW35200912-201010

85222ABLADE, FR WIPER, LH

main85222-75010iZVW35200912-201010

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW35200912

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9011906864

main90119-06864

9017910223

main90179-10223

15 parts on this diagram · 1 diagram in section
