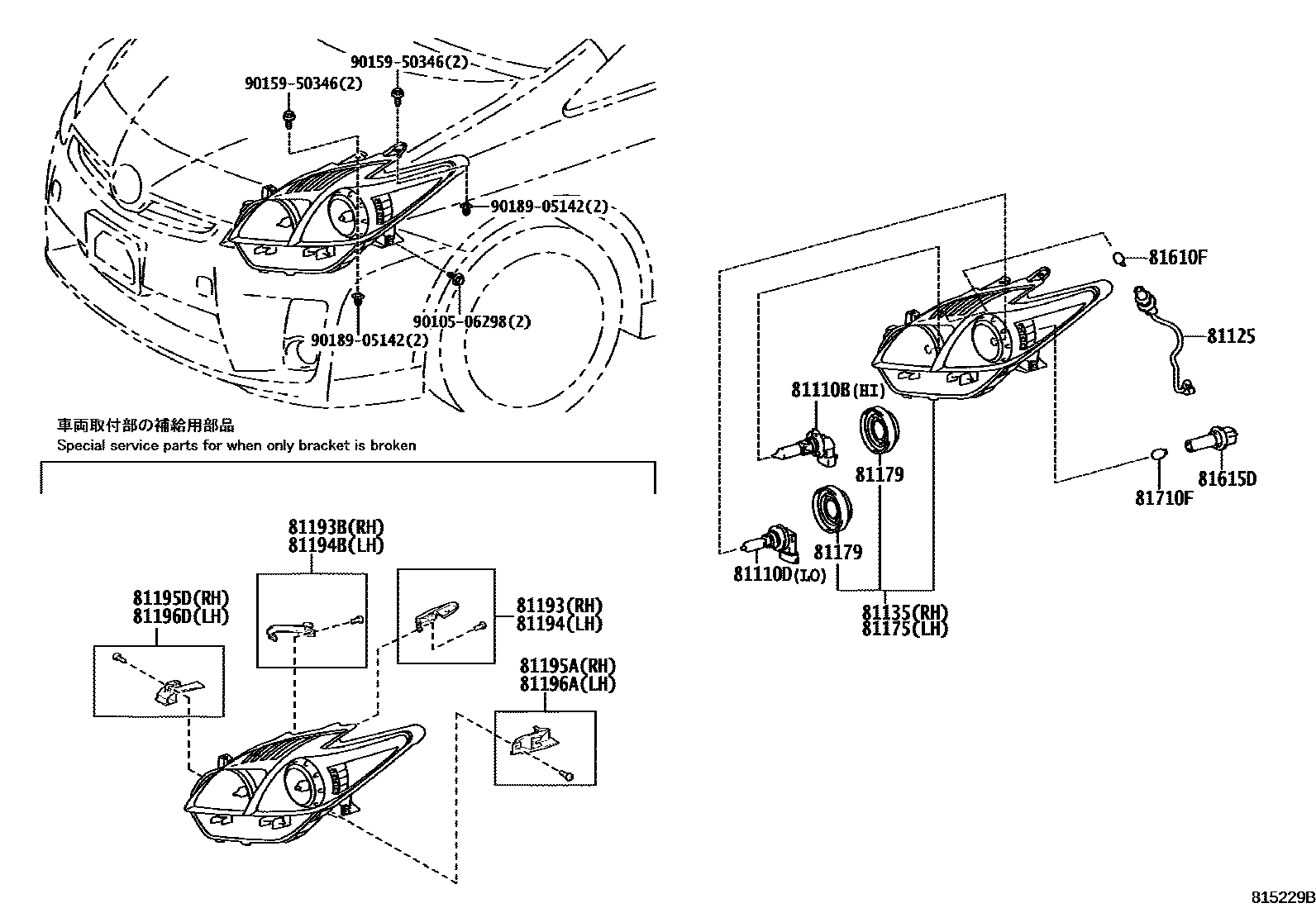

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iZVW35200912

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iZVW35200912

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81125-47230iZVW35200912

81135UNIT ASSY, HEADLAMP, RH

main81130-47211iZVW35200912

81175UNIT ASSY, HEADLAMP, LH

main81170-47211iZVW35200912

81179COVER, HEADLAMP SOCKET

main90075-65006iZVW35200912

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-47030iZVW35200912

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-47040iZVW35200912

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-47030iZVW35200912

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-47040iZVW35200912

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-47030iZVW35200912

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-47040iZVW35200912

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-47030iZVW35200912

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-47040iZVW35200912

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iZVW35200912

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iZVW35200912

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050iZVW35200912

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

20 parts on this diagram · 1 diagram in section
