CAMERA & REAR MONITOR DISPLAY

86183ACLIP(FOR AUDIO RACK COVER)

main90467-05161-C0×3i202212-202409

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK

86470COMPUTER ASSY, DRIVER MONITOR

main86470-47010i202303-202506

ACTIVE SAFETY PACKAGE-TSS3 BASIC

86471CAMERA, DRIVER MONITOR

main86471-42010i202303

ACTIVE SAFETY PACKAGE-TSS3 BASIC

86790BCAMERA ASSY, TELEVISION, FR

main86790-47120i202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86790DCAMERA ASSY, TELEVISION, RR

main86790-47150i202212

main00000-00000i202212

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),NOT APPLICAB

main86790-47180i202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main86790-47190i202212

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-47130i202212

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-47140i202212

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-47010i202212-202409

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86792CCOMPUTER, PARKING ASSIST

main86792-47460i202212-202507

AUDIO-NA 12.3INCH PREMIUM 6SPEKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main86792-47470i202212-202409

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86796COVER, COMPUTER PARKING ASSIST

main86796-47020i202212-202409

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86797BWIRE, PARKING ASSIST

main86797-47370i202212

PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86799BWIRE, TELEVISION CAMERA, RH

main86799-47010i202212

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

86799CWIRE, TELEVISION CAMERA, LH

main86799-47010i202212

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-47020i202212-202501

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-30040i202212-202409

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

9011906A06

main90119-06A06

9015950327

main90159-50327

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

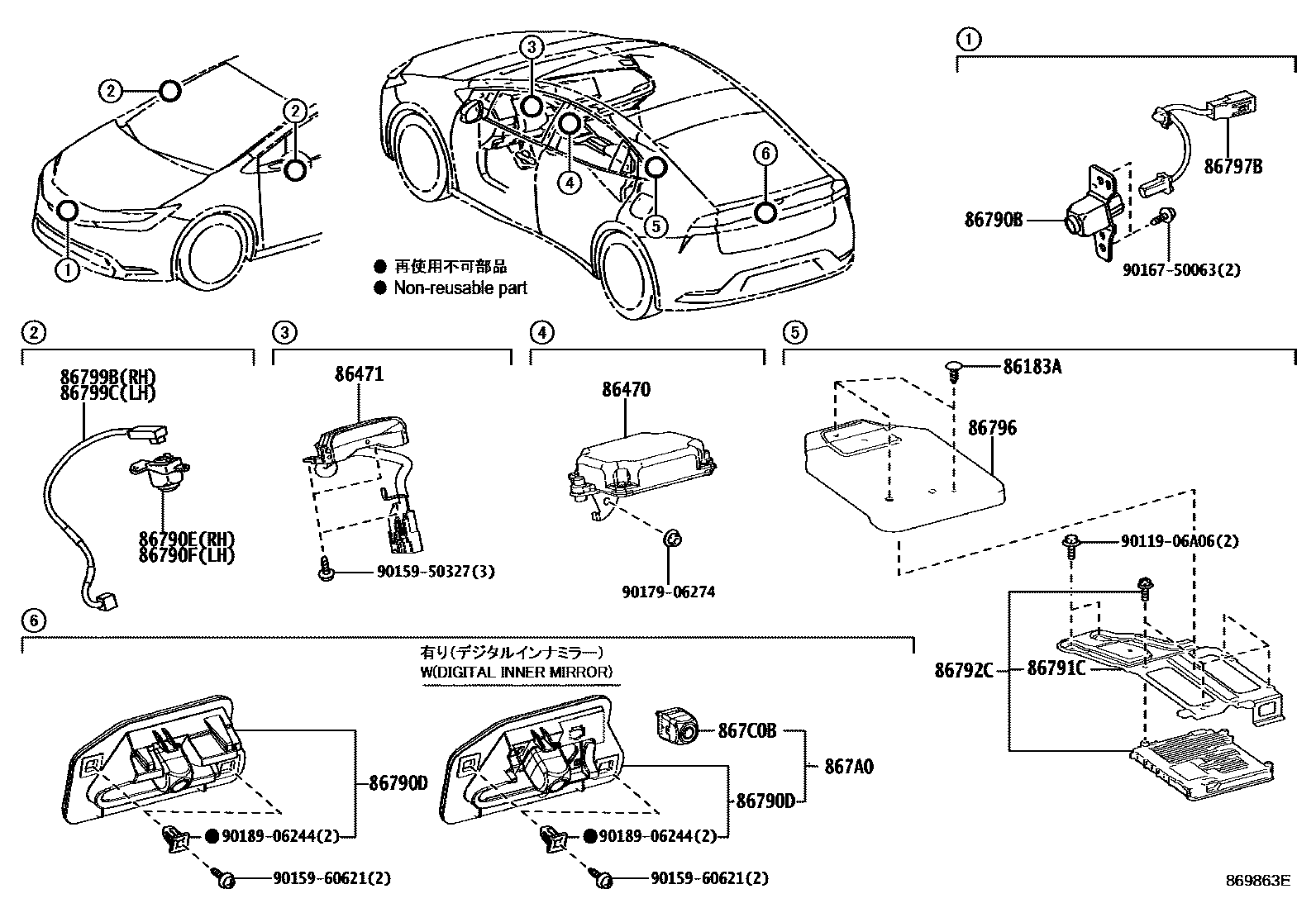

21 parts on this diagram · 1 diagram in section
