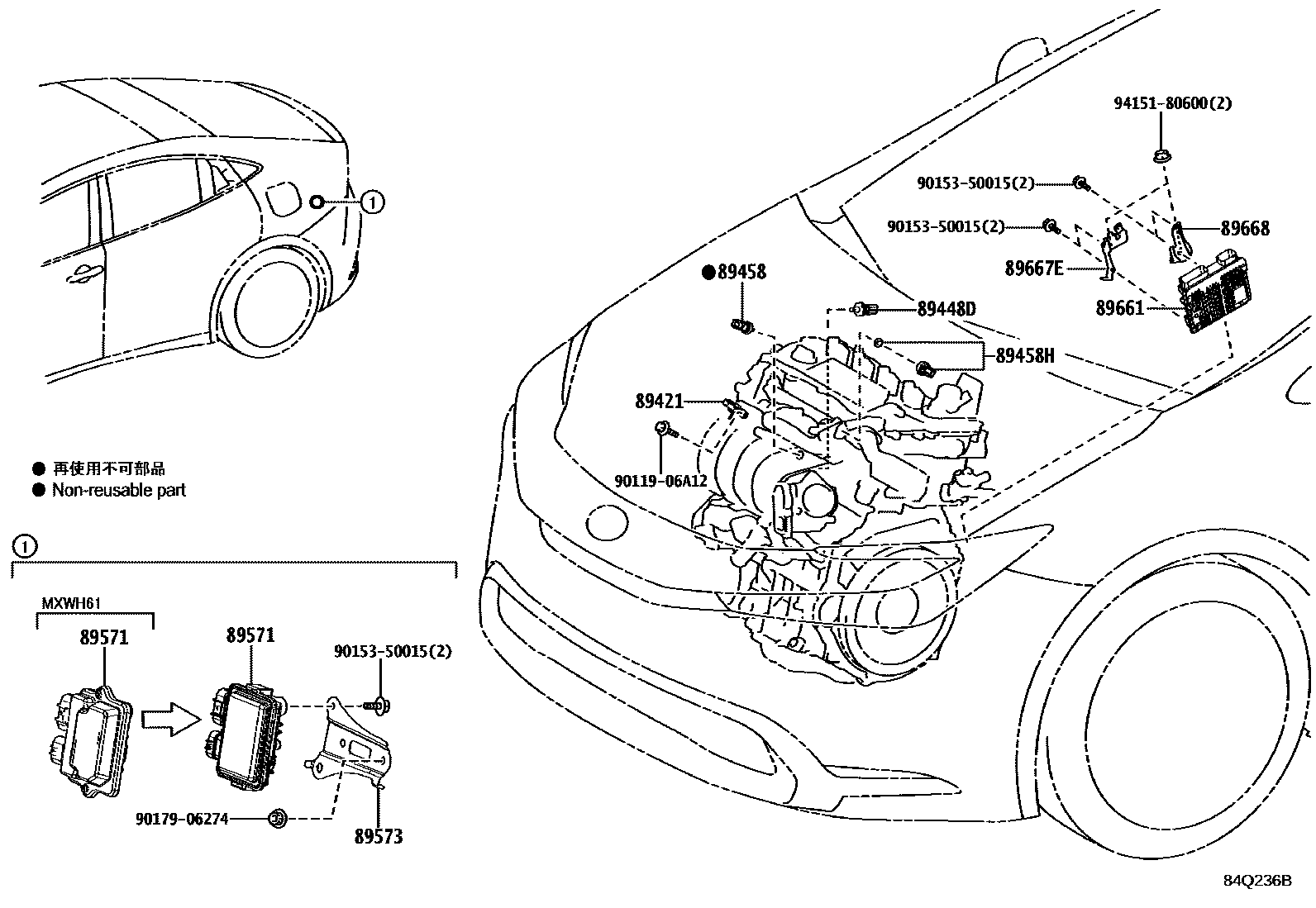

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMXWH6#202212

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMXWH6#202212

89458SENSOR, FUEL PRESSURE

main89458-33030iMXWH6#202212

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042iMXWH6#202212

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iMXWH61202303

main89571-48010iMXWH60,65202212

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-47010iMXWH6#202212

89661COMPUTER, ENGINE CONTROL

main89661-47E30iMXWH61202303-202507

DENSO,*614

main89661-47E40iMXWH60,65202212-202507

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47110iMXWH6#202212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47060iMXWH6#202212

9011906A12

main90119-06A12

9015350015

main90153-50015

9017906274

main90179-06274

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
