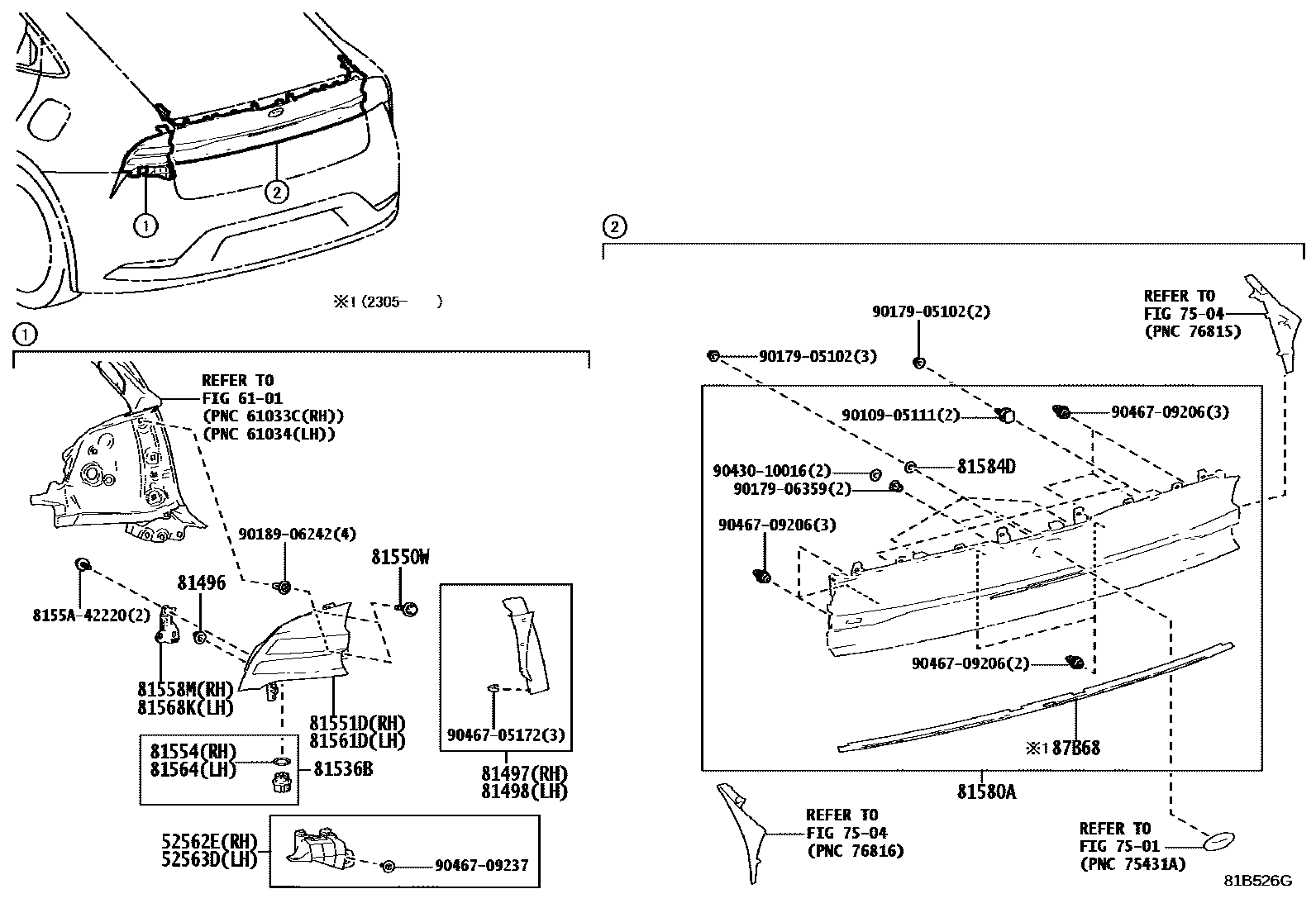

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-47030iMXWH6#202212

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-47030iMXWH6#202212

6101SIDE MEMBER

→ Go to FIG 61-01

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7504REAR MOULDING

→ Go to FIG 75-04

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iMXWH6#202212

81497COVER, REAR COMBINATION LAMP, RH

main81497-47050iMXWH6#202212

81498COVER, REAR COMBINATION LAMP, LH

main81498-47050iMXWH6#202212

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120×2iMXWH6#202212

81550WSCREW(FOR RR COMBINATION LAMP)

main90159-60621×4iMXWH6#202212

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-47510iMXWH60,65202212

main81551-47520iMXWH61202303

main81551-47490iMXWH65..G;MXWH60..E,G202212

KOREA SPEC

main81551-47500iMXWH61..E,G202303

KOREA SPEC

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81538-42200iMXWH6#202212

81558MBRACKET, REAR COMBINATION LAMP, RH

main81558-47490iMXWH6#202212

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-47510iMXWH60,65202212

main81561-47520iMXWH61202303

main81561-47490iMXWH65..G;MXWH60..E,G202212

KOREA SPEC

main81561-47500iMXWH61..E,G202303

KOREA SPEC

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81538-42200iMXWH6#202212

81568KBRACKET, REAR COMBINATION LAMP, LH

main81568-47490iMXWH6#202212

81580ALAMP ASSY, REAR

main81580-47090iMXWH60,65..E202212

main81580-47110iMXWH61..E202303

81584DGASKET, REAR LAMP

main81584-22040×3iMXWH6#202212

87B68PROTECTOR

main87268-47050iMXWH6#202305

8155A42220

main8155A-42220

9010905111

main90109-05111

9017905102

main90179-05102

9017906359

main90179-06359

9018906242

main90189-06242

9043010016

main90430-10016

9046705172

main90467-05172

9046709206

main90467-09206

9046709237

main90467-09237

28 parts on this diagram · 2 diagrams in section
