FRONT SEAT & SEAT TRACK

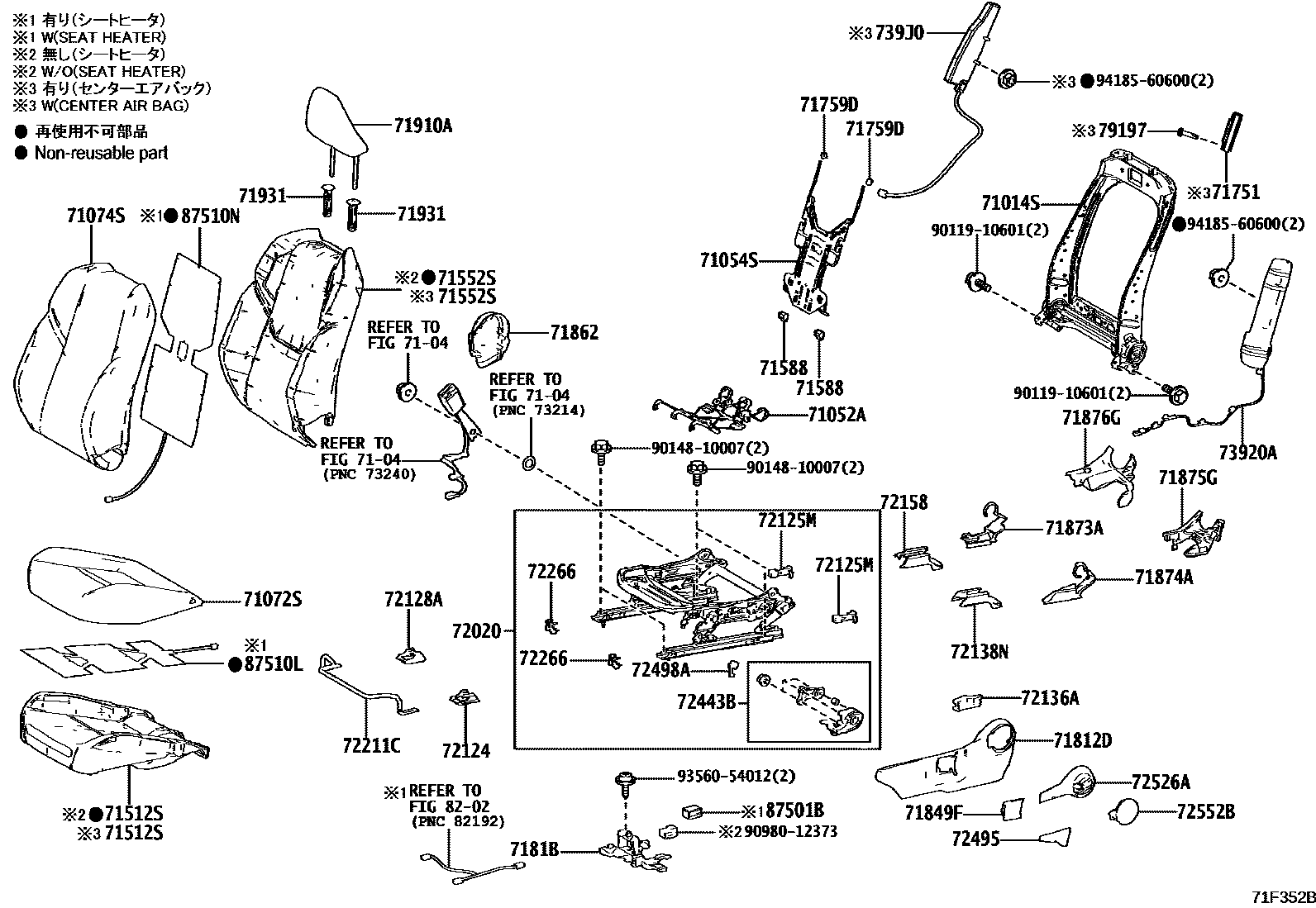

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-47220i202212
main71014-47240supersedes 71014-47250i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-11010i202212-202304
main71051-47050i202304
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-47050i202212
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-47F30-B0i202212
GRAY,TRIM1#
main71072-47F30-C0i202212
BLACK,TRIM2#
main71072-47F60-B2i202212-202501
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),LT.GRAY,TRIM1#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71072-47F60-B3supersedes 71072-47F50-B3i202501
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),LT.GRAY,TRIM1#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71072-47F60-C4i202303-202501
BLACK/RED,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/RED,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/RED,TRIM2#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/RED,TRIM2#
main71072-47F60-C5i202212-202501
BLACK/LT.GRAY,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/LT.GRAY,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/LT.GRAY,TRIM2#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/LT.GRAY,TRIM2#
main71072-47F60-C6supersedes 71072-47F50-C6i202501-202507
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),RED NO.55,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,RED NO.55,TRIM2#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,RED NO.55,TRIM2#; RED NO.55,TRIM2#
main71072-47F60-C7supersedes 71072-47F50-C7i202501
BLACK,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK,TRIM2#; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK,TRIM2#
main71072-47G40-C2i202303-202501
BLACK/RED,TRIM2#
main71072-47G40-C4i202501
RED NO.55,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-47E40-B0i202212
GRAY,TRIM1#
main71074-47E40-C0i202212
BLACK,TRIM2#
main71074-47F10-B3i202212
LT.GRAY,TRIM1#
main71074-47F10-C5i202501
BLACK/LT.GRAY,TRIM20
main71074-47F10-C6i202303-202507
BLACK/RED,TRIM2#
main71074-47F10-C7i202501
BLACK/LT.GRAY,TRIM24
main71074-47F50-B3i202212
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#
main71074-47F50-C5supersedes 71074-47F10-C5i202212
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/LT.GRAY,TRIM2#
main71074-47F50-C6i202303
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/RED,TRIM2#
main71074-47G40-B0i202212
KOREA SPEC,GRAY,TRIM1#
main71074-47G40-C0i202212
KOREA SPEC,BLACK,TRIM2#
main71074-47J10-C0supersedes 71074-47G90-C0i202303
KOREA SPEC,BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-47220i202212
main71512-47230i202303
main71512-47260supersedes 71512-47250i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-47310i202212
main71552-47350i202212
main71552-47420i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
main71552-47340i202212
KOREA SPEC
main71552-47360i202212
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
main71552-47390i202303
KOREA SPEC
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-47010×2i202212
71751HANGER, SEAT COVER
main71751-47050i202212
KOREA SPEC; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
71759DHOOK, FRONT SEATBACK, NO.2
main71759-50040×2i202212
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-47180-C0i202212
BLACK,TRIM1#,2#
main71812-47190-C0i202212
BLACK,TRIM1#,2#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-11010i202212
main7181B-47010i202212
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
main71849-12020-C0i202308
BLACK,TRIM1#,2#; BLACK,TRIM2#
main71849-47010-C1i202212-202308
BLACK,TRIM1#,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47120-C0i202212
BLACK,TRIM1#,2#
main71862-47130-C0i202212
BLACK,TRIM1#,2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47070i202212
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71874-47110i202212
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-47110i202212
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i202212
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-47040-C1i202212-202304
BLACK,TRIM1#,2#
main71876-47110-C0i202304
BLACK,TRIM1#,2#; BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47120-C0i202304
BLACK,TRIM1#,2#; BLACK,TRIM2#
main71876-62020-C0i202212-202304
BLACK,TRIM1#,2#
71910AHEADREST ASSY, FRONT SEAT
main71910-47720-B0×2i202212
GRAY,TRIM1#
main71910-47720-C2×2i202212
BLACK,TRIM2#
main71910-47730-B1×2i202212-202501
LT.GRAY,TRIM1#
main71910-47730-B2×2i202501
LT.GRAY,TRIM1#
main71910-47730-C4×2i202303-202501
BLACK/RED,TRIM2#
main71910-47730-C5×2i202212-202501
BLACK/LT.GRAY,TRIM2#
main71910-47730-C6×2i202501-202507
RED NO.55,TRIM2#
main71910-47730-C7×2i202501
BLACK,TRIM2#
main71910-47660-B0×2i202212
KOREA SPEC,LT.GRAY,TRIM1#
main71910-47660-C1×2i202212
KOREA SPEC,BLACK,TRIM2#
main71910-47680-B1×2i202212-202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#
main71910-47680-B2×2i202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,LT.GRAY,TRIM1#
main71910-47680-C4×2i202303-202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/RED,TRIM2#
main71910-47680-C5×2i202212-202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/LT.GRAY,TRIM2#
main71910-47680-C6×2i202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK/RED,TRIM2#
main71910-47680-C7×2i202501
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY,BLACK,TRIM2#
main71910-47710-C2×2supersedes 71910-47740-C0i202303
KOREA SPEC,BLACK/RED,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i202212-202501
W(LOCK),BLACK,TRIM1#,2#
main71931-47030-C4×2i202212
W/O(LOCK),BLACK,TRIM1#,2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-47340i202212
main72020-47480supersedes 72020-47350i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-47050-C0i202212
BLACK,TRIM1#,2#
72125MCOVER, SEAT TRACK, UPPER NO.3
main72125-47010×2i202212
main72125-47020×2i202212
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-47060i202212
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-33250i202212
72136ASPACER, SEAT TRACK, LOWER NO.2
main72136-12110i202212
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72138-47070-C0i202212
BLACK,TRIM1#,2#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-47090-C0i202212
BLACK,TRIM1#,2#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-47010i202212
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47010i202212
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010×2i202212
main72265-47020×2i202212
72443BGEAR, VERTICAL ADJUSTER, LH
main72443-47040i202212
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-12020-C0i202308
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72495-47020-C1i202212-202308
BLACK,TRIM1#,2#
72498ACOVER, VERTICAL ADJUSTER BRACKET, LH
main72498-47020i202212
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-33050-C0i202212
BLACK,TRIM1#,2#
72552BCOVER, RECLINING HINGE, LH
main72551-33010-C0i202212
BLACK,TRIM1#,2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-47160i202212
main73920-47180i202212
KOREA SPEC; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
739J0AIRBAG ASSY, FRONT SEAT CENTER, LH
main739J0-47010i202212
KOREA SPEC
main739J0-47020i202212
KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
79197HOOK, SEATBACK COVER
main79197-47010i202212
KOREA SPEC; KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
8202WIRING & CLAMP
→ Go to FIG 82-02
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-33010i202212
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-47260supersedes 87510-47270i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
main87510-47270i202303
CANADA SPEC
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-47080supersedes 87530-47110i202212
FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY; FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); KOREA SPEC&FRONT SEAT-*DRS(POWER SEAT & MEMORY),SPORTY
main87530-47110i202303
CANADA SPEC
9011910601
main90119-10601
9014810007
main90148-10007
9098012373
main90980-12373
9356054012
main93560-54012
9418560600
main94185-60600

51 parts on this diagram · 3 diagrams in section
