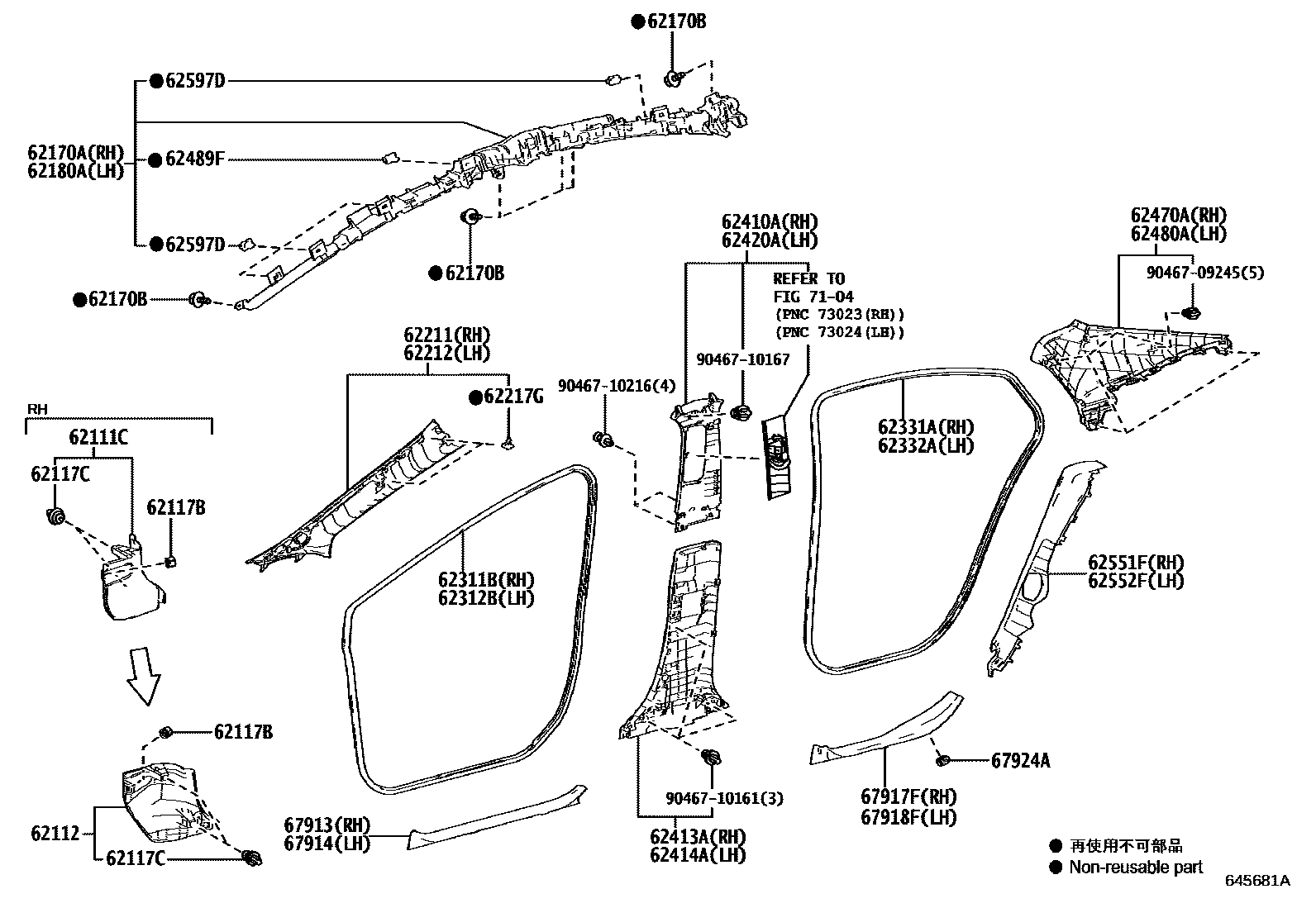

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-47170-C0iMXWH6#202212

BLACK,TRIM1#,2#

62112BOARD, COWL SIDE TRIM, LH

main62112-47250-C0iMXWH6#202212

BLACK,TRIM1#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iMXWH6#202212

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10167×4iMXWH6#202212

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-47120iMXWH6#202212

62170BBOLT, W/WASHER

main91673-80616×10iMXWH6#202212

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-47120iMXWH6#202212

62211GARNISH, FRONT PILLAR, RH

main62210-47100-B0iMXWH60,65..E; MXWH60,65..G202212

LT.GRAY/DK.GRAY,TRIM1#,2#; LT.GRAY/DK.GRAY,TRIM1#,20

main62210-47100-B1iMXWH60,65..G202212

LT.GRAY/BLACK,TRIM24

main62210-47110-B0iMXWH61..H202303

LT.GRAY/DK.GRAY,TRIM1#,20,22

main62210-47110-B1iMXWH61..H202303

LT.GRAY/BLACK,TRIM22,24

62212GARNISH, FRONT PILLAR, LH

main62220-47100-B0iMXWH60,65..E; MXWH60,65..G202212

LT.GRAY/DK.GRAY,TRIM1#,2#; LT.GRAY/DK.GRAY,TRIM1#,20

main62220-47100-B1iMXWH60,65..G202212

LT.GRAY/BLACK,TRIM24

main62220-47110-B0iMXWH60,65..H202212

LT.GRAY/DK.GRAY,TRIM1#,2#

main62220-47110-B1iMXWH61..H202303

LT.GRAY/BLACK,TRIM22,24

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020×4iMXWH6#202212

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-47060iMXWH6#202212

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-47060iMXWH6#202212

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-47060iMXWH6#202212

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-47060iMXWH6#202212

62410AGARNISH ASSY, CENTER PILLAR, RH

main62410-47110-C1iMXWH60,65202212

BLACK,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-47100-C0iMXWH6#202212

BLACK,TRIM1#,2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-47100-C0iMXWH6#202212

BLACK,TRIM1#,2#

62420AGARNISH ASSY, CENTER PILLER, LH

main62420-47110-C1iMXWH60,65202212

BLACK,TRIM1#,2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-47150-B0iMXWH6#202212

LT.GRAY,TRIM1#,2#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-47140-B0iMXWH6#202212

LT.GRAY,TRIM1#,2#

62489FCLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iMXWH6#202212

62551FGARNISH, REAR SEAT SIDE, RH

main62551-47070-C0iMXWH6#202212-202501

BLACK,TRIM1#,2#

main62551-47071-C0iMXWH60,65; MXWH61202501

BLACK,TRIM1#,2#; BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-47120-C0iMXWH6#202212-202501

BLACK,TRIM1#,2#

main62552-47121-C0iMXWH60,65; MXWH61202501

BLACK,TRIM1#,2#; BLACK,TRIM2#

62597DCLIP

main90467-18017×8iMXWH6#202212

67913PLATE, FRONT DOOR SCUFF, RH

main67913-47080-C0iMXWH60,65202212

BLACK,TRIM1#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-47080-C0iMXWH60,65202212

BLACK,TRIM1#,2#

67917FPLATE, REAR DOOR SCUFF, INSIDE RH

main67917-47100-C0iMXWH60,65202212

BLACK,TRIM1#,2#

67918FPLATE, REAR DOOR SCUFF, INSIDE LH

main67918-47100-C0iMXWH60,65202212

BLACK,TRIM1#,2#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67923-20090×2iMXWH6#202212

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046709245

main90467-09245

9046710161

main90467-10161

9046710167

main90467-10167

9046710216

main90467-10216

34 parts on this diagram · 1 diagram in section
