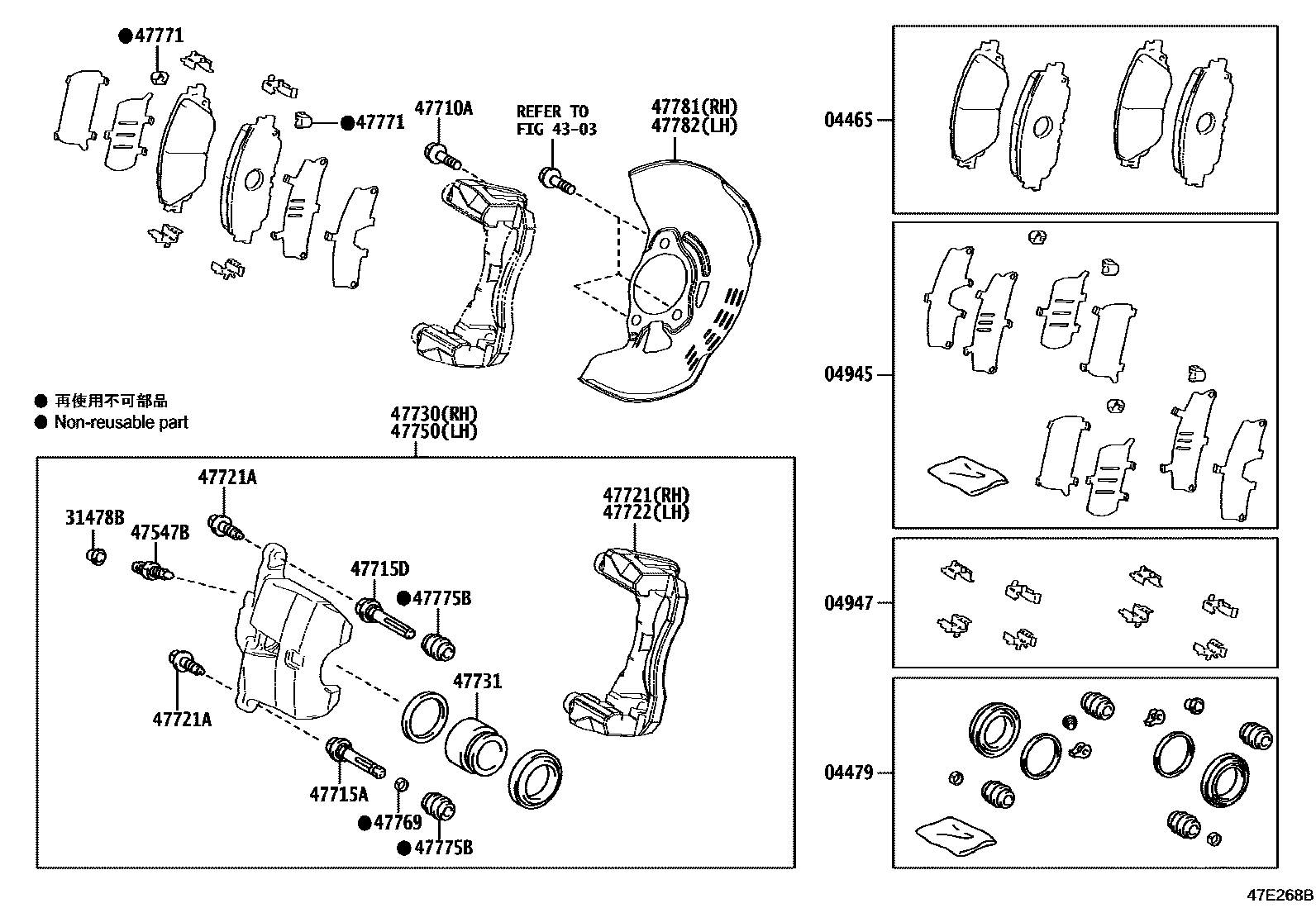

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iMXWH60202212

MARK ADVICS VC084H

main04465-16130iMXWH61,65202212

MARK ADVICS VC115

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130iMXWH60202212

main04478-33160iMXWH61,65202212

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12120iMXWH60202212

main04945-33300iMXWH61,65202212

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030iMXWH6#202212

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMXWH6#202212

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMXWH6#202212

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXWH6#202212

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iMXWH6#202212

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iMXWH6#202212

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iMXWH60202212

main47721-76010iMXWH61,65202212

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMXWH6#202212

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iMXWH60202212

main47722-76010iMXWH61,65202212

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10iMXWH60202212

main47730-76010iMXWH61,65202212

47731PISTON, FRONT DISC BRAKE

main47731-12A10iMXWH61,65202212

main47731-52210iMXWH60202212

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10iMXWH60202212

main47750-76010iMXWH61,65202212

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMXWH6#202212

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMXWH60202212

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMXWH6#202212

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iMXWH6#202212

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iMXWH6#202212

20 parts on this diagram · 2 diagrams in section
