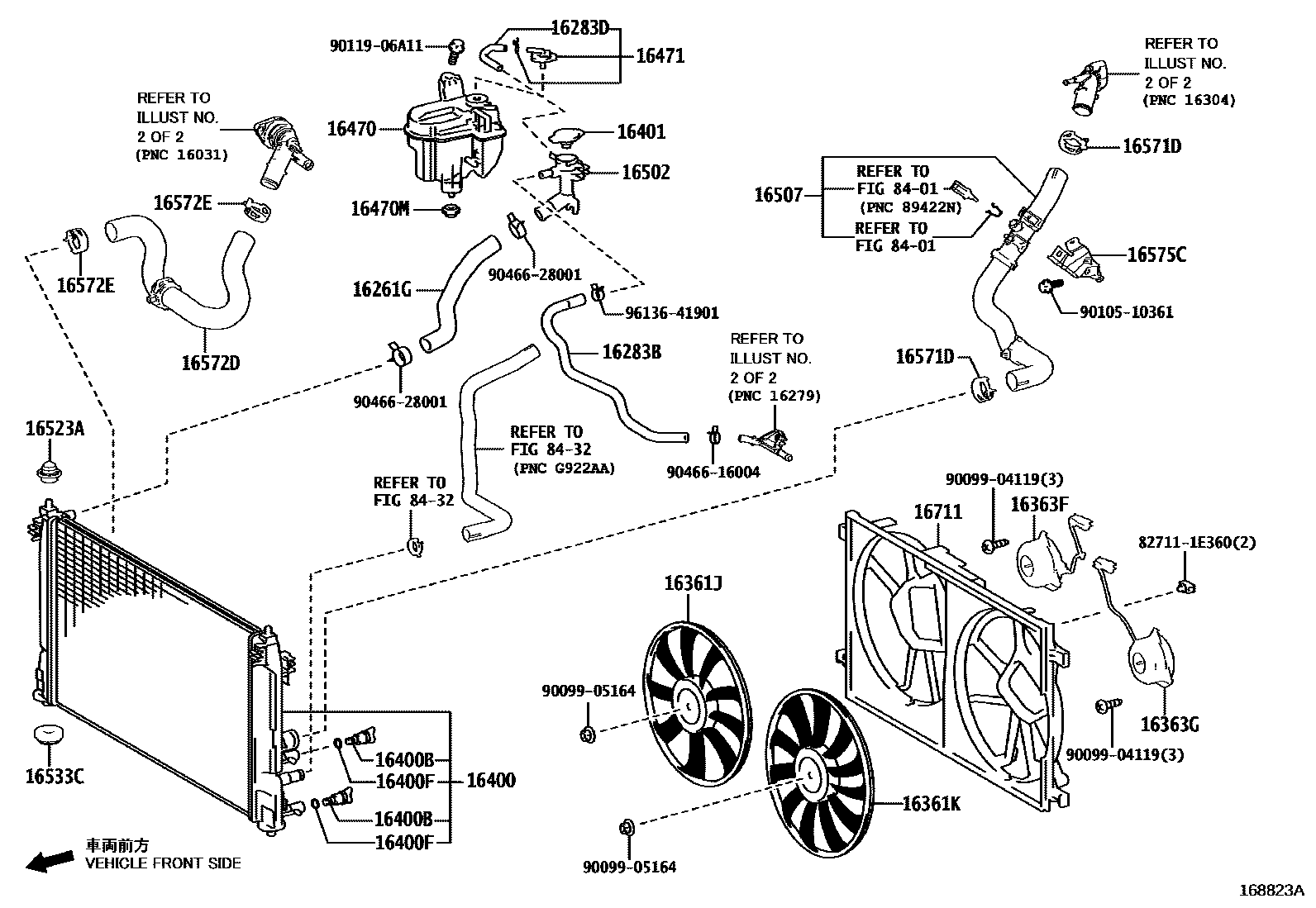

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16283HOSE, WATER BY-PASS, NO.6
16283BHOSE, WATER BY-PASS
16283DHOSE, WATER BY-PASS, NO.6
16361FAN
16361JFAN, RH
16361KFAN, LH
16363MOTOR, COOLING FAN
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16507PIPE SUB-ASSY, RADIATOR
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
8401SWITCH & RELAY & COMPUTER
8432INVERTER COOLING
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009905164
main90099-05164
9010510361
main90105-10361
9011906A11
main90119-06A11
9046616004
main90466-16004
9046628001
main90466-28001
9613641901
main96136-41901
36 parts on this diagram · 3 diagrams in section
