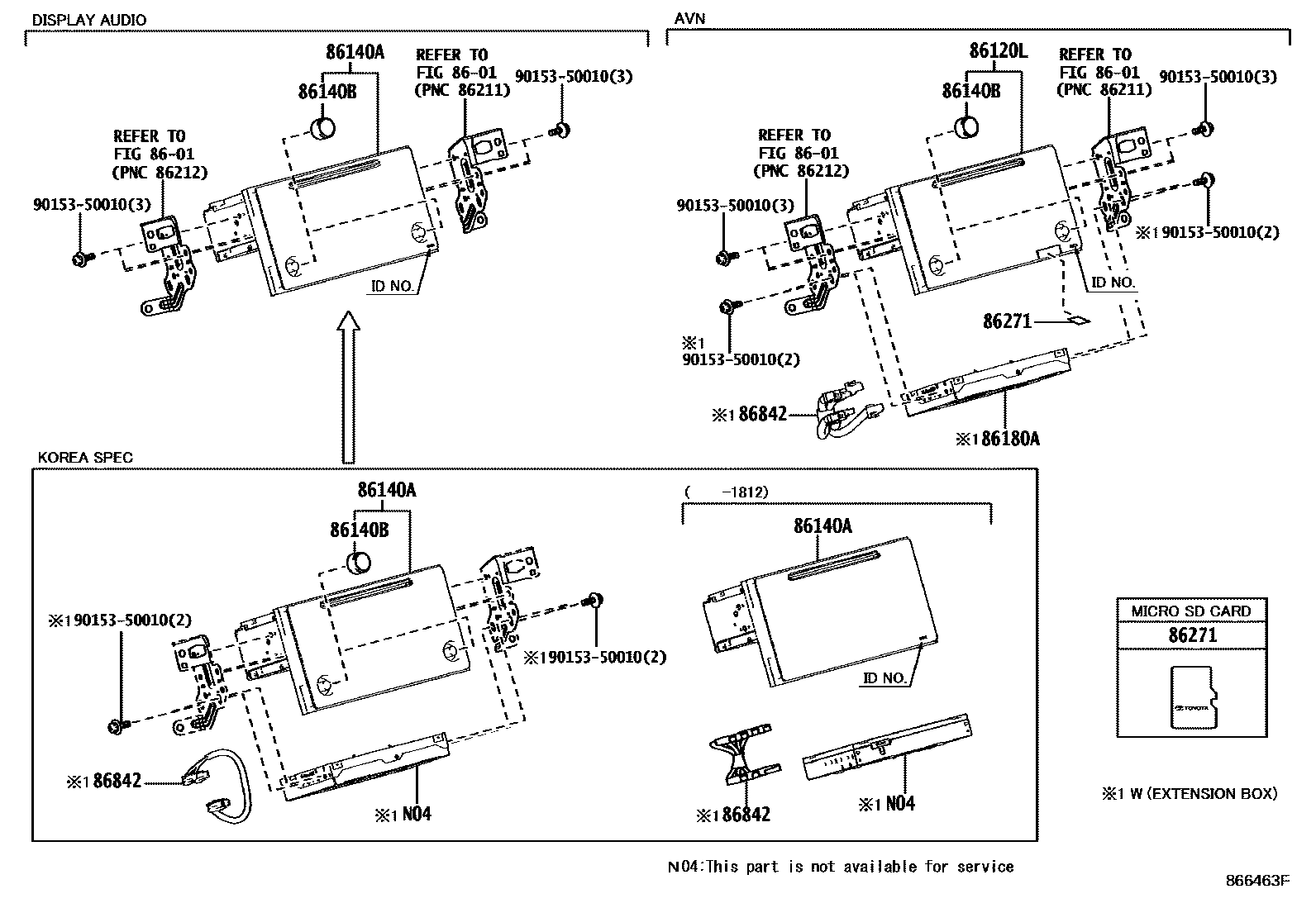

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
PANASONIC,ID=510053; PANASONIC,ID=510053,MEXICO SPEC&UPPER PACKAGE
PANASONIC,ID=510426; PANASONIC,ID=510426,MEXICO SPEC&UPPER PACKAGE
PANASONIC,ID=510054,AUDIO-AVN & *BT & USB & JBL
DENSO,ID=E7053,AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER
DENSO,ID=E7054,AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL
DENSO,ID=E7055,AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
DENSO,ID=E7056,AUDIO-AVN(11.6-INCH) & *BT & USB & JBL
DENSO,ID=E7059,AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
DENSO,ID=E7060,AUDIO-AVN(11.6-INCH) & *BT & USB & JBL
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC,ID=510028
PANASONIC,ID=510425
FUJITSU TEN,ID100397,KOREA SPEC
PIONEER,KOREA SPEC
DENSO TEN; DENSO TEN,AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER; DENSO TEN,USA HAWAII SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
DENSO TEN,CANADA SPEC; DENSO TEN,CANADA SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
PIONEER; PIONEER,AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
main86140-47680supersedes 86140-47620iZVW5#..B,E,G; ZVW5#..E,G; ZVW51..B,E; ZVW51..E; ZVW51..H201908-202007
PIONEER,CANADA SPEC; PIONEER,CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; PIONEER,MEXICO SPEC; PIONEER,USA DOMAIN SPEC; PIONEER,USA HAWAII SPEC; PIONEER,USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
DENSO TEN; DENSO TEN,AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER; DENSO TEN,USA HAWAII SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
DENSO TEN,CANADA SPEC; DENSO TEN,CANADA SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
PIONEER,KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
PIONEER; PIONEER,AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
PIONEER,CANADA SPEC; PIONEER,CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; PIONEER,GUAM,SAIPAN SPEC; PIONEER,MEXICO SPEC; PIONEER,USA DOMAIN SPEC; PIONEER,USA HAWAII SPEC; PIONEER,USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
86180ATUNER ASSY, STEREO COMPONENT
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
86271DISC, DISC PLAYER
MEXICO SPEC&UPPER PACKAGE
MEXICO SPEC&UPPER PACKAGE
AUDIO-AVN & *BT & USB & JBL
MEXICO SPEC&UPPER PACKAGE
MEXICO SPEC&UPPER PACKAGE
MEXICO SPEC&UPPER PACKAGE
AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL; AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
86842WIRE, NAVIGATION, NO.1
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) & KOREA SPEC
9015350010
main90153-50010
8 parts on this diagram · 3 diagrams in section
