CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH
89305ACUSHION SET, ULTRASONIC SENSOR, NO.2
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,2XC
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 ,2WZ
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,2XA ,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2XB ,8X7; CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7
89341LSENSOR, ULTRASONIC, FRONT CENTER
CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 ,2WY
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,2XC
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 ,2WZ
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,2XA ,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2XB ,8X7; CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7
89342SENSOR, ULTRASONIC, REAR CORNER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 ,2WY
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,2XC
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 ,2WZ
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,2XA ,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2XB ,8X7; CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,2XC
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 ,2WZ
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,2XA ,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2XB ,8X7; CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7
89342BSENSOR, ULTRASONIC, REAR SIDE
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 ,2WY
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089 ,2XC
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7; CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 ,2WZ
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,BLACKISH AGEHA GF.,221
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED,3T7
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,2XA ,3U5; CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH,FROSTY GREEN MC.,781
CLEARANCE & BACK SONAR-WITH,DK.BLUE M.M.,8W7
CLEARANCE & BACK SONAR-WITH,BLUE ME.,2XB ,8X7; CLEARANCE & BACK SONAR-WITH,BLUE ME.,8X7
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH
89343DBUZZER, CLEARANCE WARNING, NO.2
CLEARANCE & BACK SONAR-WITH
89348JCLIP, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH
9167380616
main91673-80616

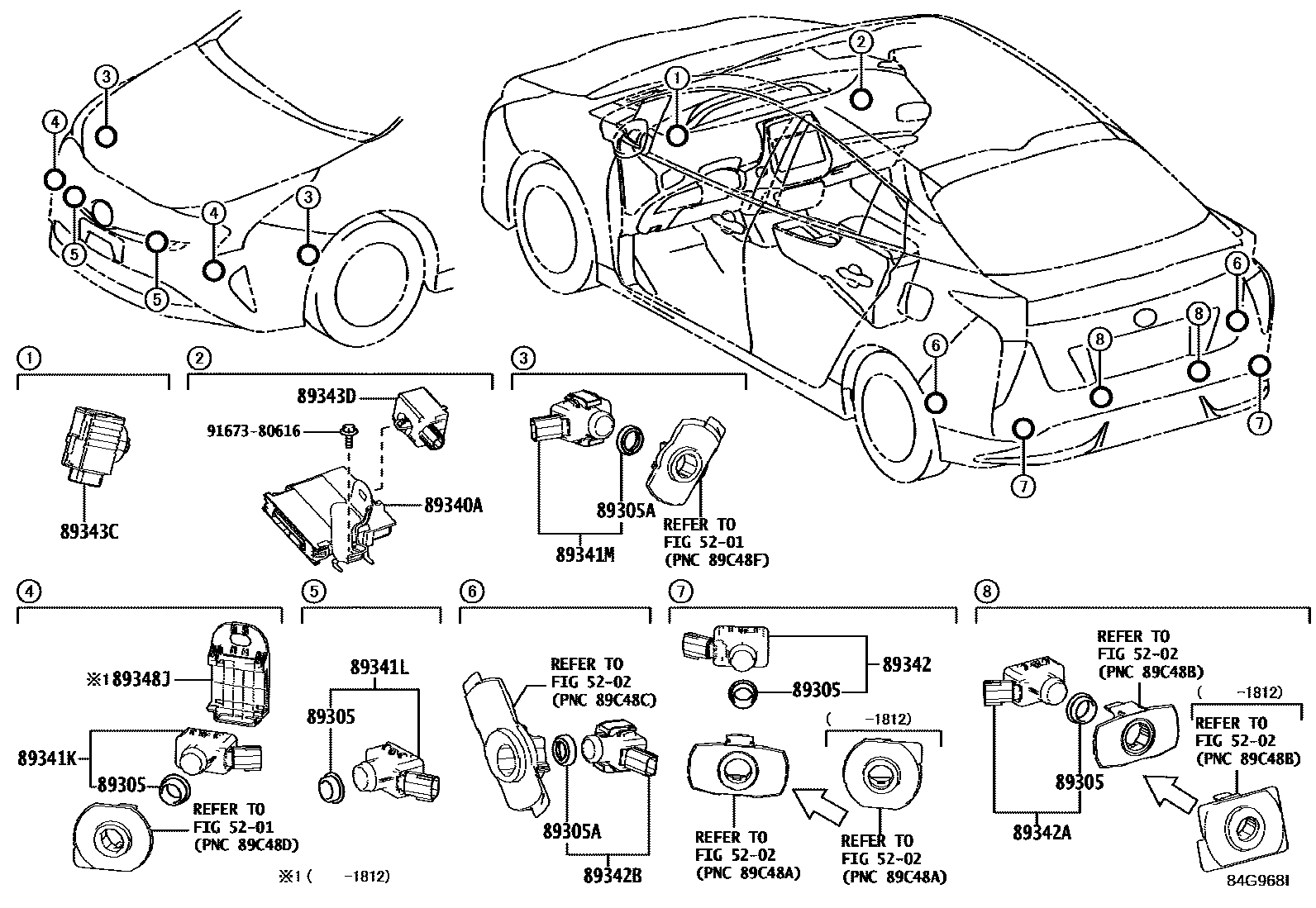

15 parts on this diagram · 1 diagram in section
