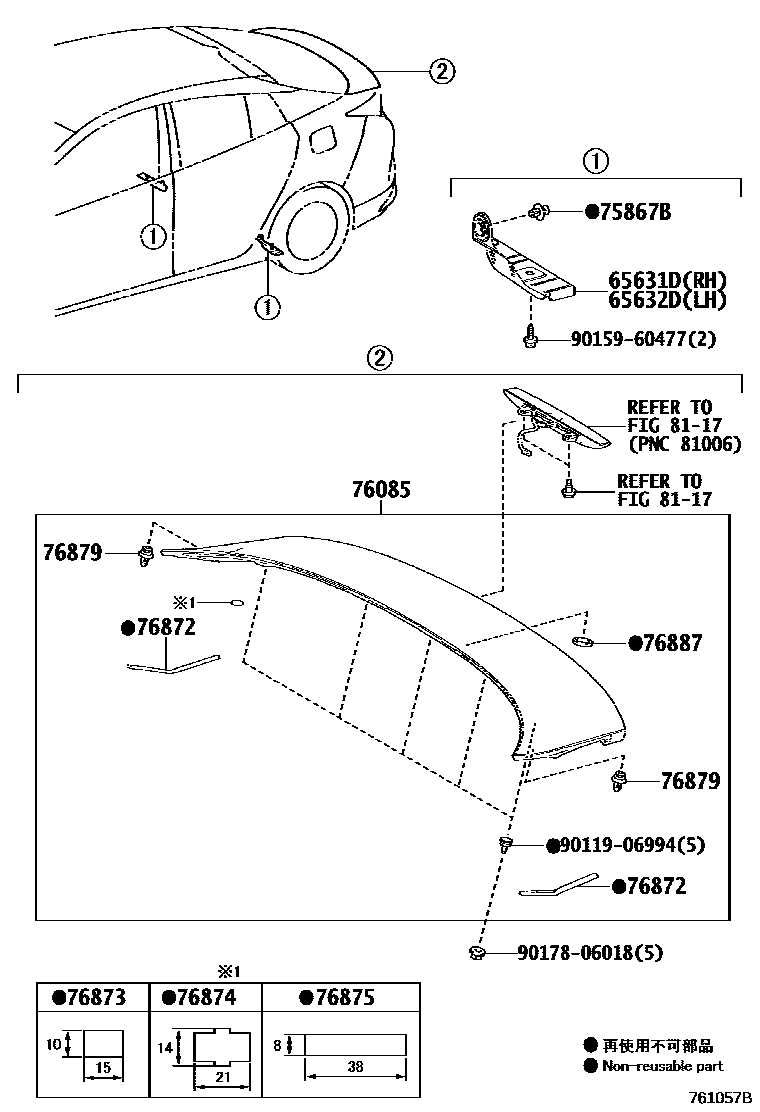

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47080iZVW5#201511-201812

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47080iZVW5#201511-201812

75867BCLIP, ROCKER PANEL MOULDING

main90467-07222iZVW5#201511-201812

76085SPOILER SUB-ASSY, REAR

main76085-47914iZVW5#201511-201704

PAINT REQ.

main76085-47916iZVW5#201704-201812

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-47060iZVW5#201511-201812

76873PROTECTOR, REAR SPOILER, NO.2

main76873-47040iZVW5#201511-201704

76874PROTECTOR, REAR SPOILER, NO.3

main76874-47020iZVW5#201511-201812

76875PROTECTOR, REAR SPOILER, NO.4

main76875-47010iZVW5#201511-201812

76879CLIP, REAR SPOILER, NO.1

main90467-09206iZVW5#201511-201812

76887SEAL, REAR SPOILER

main76887-47010iZVW5#201511-201812

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906994

main90119-06994

9015960477

main90159-60477

9017806018

main90178-06018

14 parts on this diagram · 1 diagram in section
