REAR SEAT & SEAT TRACK

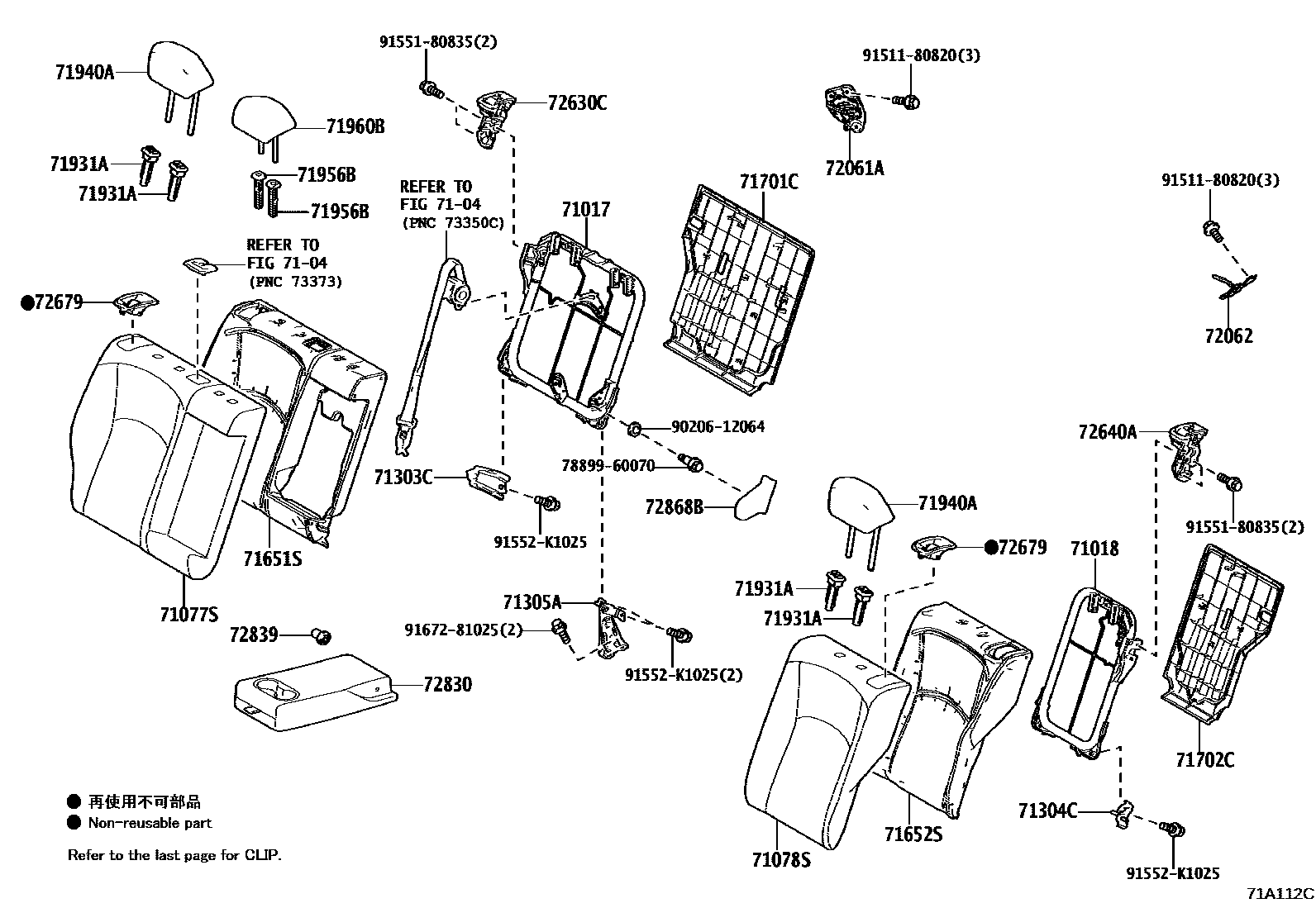

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-47220i201511-201812
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-47110i201511-201608
main71018-47140i201812
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-47550-E7i201511-201812
NEUTRAL BEIGE,TRIM4#
main71077-47590-B9i201511-201812
COOL GRAY/BLUE,TRIM1#
main71077-47590-C9i201511-201812
BLACK/BLUE,TRIM2#
main71077-47630-B4i201511-201812
COOL GRAY,TRIM1#
main71077-47630-C4i201511-201812
BLACK,TRIM2#
main71077-47630-E2i201511-201812
NEUTRAL BEIGE,TRIM4#
main71077-47790-B7i201812
COOL GRAY,TRIM1#
main71077-47790-C7i201812
BLACK,TRIM2#
main71077-47820-B5i201812
COOL GRAY,TRIM1#
main71077-47820-C5i201812
BLACK,TRIM2#
main71077-47A10-B0i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/TURQUOISE,TRIM10; COOL GRAY/BLACK/TURQUOISE,TRIM10; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/TURQUOISE,TRIM10; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/TURQUOISE,TRIM10; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/TURQUOISE,TRIM10
main71077-47A10-B1i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/BLUE,TRIM11; COOL GRAY/BLACK/BLUE,TRIM11; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/BLUE,TRIM11; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/BLUE,TRIM11; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/BLUE,TRIM11
main71077-47A10-C5i201812
BLACK//BLACK/DK.GRAY,TRIM20; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK//BLACK/DK.GRAY,TRIM20; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK//BLACK/DK.GRAY,TRIM20; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK//BLACK/DK.GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK//BLACK/DK.GRAY,TRIM20
main71077-47A10-C6i201812
BLACK/BLACK/BLUE,TRIM21; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLACK/BLUE,TRIM21; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLACK/BLUE,TRIM21; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK/BLUE,TRIM21
main71077-47A10-E0supersedes 71077-47820-E5i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#; NEUTRAL BEIGE/GRAY,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#
main71077-47590-B8supersedes 71077-47550-B7i201511-201704
KOREA SPEC&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM1#; MEXICO SPEC&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM1#
main71077-47590-C8supersedes 71077-47550-C7i201704-201812
KOREA SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM2#; MEXICO SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM2#
main71077-47590-E6i201511-201812
FOUR PACKAGE,NEUTRAL BEIGE/GRAY,TRIM4#; FOUR TOURING PACKAGE,NEUTRAL BEIGE/GRAY,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-47350-E6i201511-201812
NEUTRAL BEIGE,TRIM4#
main71078-47380-B7i201511-201812
COOL GRAY/BLUE,TRIM1#; FOUR PACKAGE,COOL GRAY/BLUE,TRIM11
main71078-47380-C7i201511-201812
BLACK/BLUE,TRIM2#; FOUR PACKAGE,BLACK/BLUE,TRIM21
main71078-47420-B3i201511-201812
COOL GRAY,TRIM1#
main71078-47420-C3i201511-201812
BLACK,TRIM2#
main71078-47420-E2i201511-201812
NEUTRAL BEIGE,TRIM4#
main71078-47520-B7i201812
COOL GRAY,TRIM1#
main71078-47520-C7i201812
BLACK,TRIM2#
main71078-47540-B5i201812
COOL GRAY,TRIM1#
main71078-47540-C5i201812
BLACK,TRIM2#
main71078-47620-B0i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/TURQUOISE,TRIM10; COOL GRAY/BLACK/TURQUOISE,TRIM10; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/TURQUOISE,TRIM10; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/TURQUOISE,TRIM10; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/TURQUOISE,TRIM10
main71078-47620-B1i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/BLUE,TRIM11; COOL GRAY/BLACK/BLUE,TRIM11; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLACK/BLUE,TRIM11; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/BLUE,TRIM11; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLACK/BLUE,TRIM11
main71078-47620-C5i201812
BLACK//BLACK/DK.GRAY,TRIM20; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK//BLACK/DK.GRAY,TRIM20; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK//BLACK/DK.GRAY,TRIM20; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK//BLACK/DK.GRAY,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK//BLACK/DK.GRAY,TRIM20
main71078-47620-C6i201812
BLACK/BLACK/BLUE,TRIM21; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLACK/BLUE,TRIM21; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLACK/BLUE,TRIM21; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK/BLUE,TRIM21; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLACK/BLUE,TRIM21
main71078-47620-E0supersedes 71078-47540-E5i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#; NEUTRAL BEIGE/GRAY,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#
main71078-47380-B6supersedes 71078-47350-B6i201704-201812
KOREA SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM1#; MEXICO SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM1#
main71078-47380-C6i201511-201812
FOUR PACKAGE,BLACK/DK.GRAY,TRIM20; FOUR TOURING PACKAGE,BLACK/DK.GRAY,TRIM20
main71078-47380-E5i201511-201812
FOUR PACKAGE,NEUTRAL BEIGE/GRAY,TRIM4#; FOUR TOURING PACKAGE,NEUTRAL BEIGE/GRAY,TRIM4#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-47030i201812
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-47030i201511-201812
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-47040i201812
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-47200i201511-201812
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-47120i201511-201812
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-47020i201511-201812
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-47020i201812
71931ASUPPORT, REAR SEAT HEADREST
main71955-47010-B4×4i201511-201812
W/O(LOCK),FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#; W/O(LOCK),NEUTRAL WARM GRAY,TRIM4#
main71955-47010-C0×4i201511-201701
W/O(LOCK),BLACK,TRIM1#,2#
main71955-47010-C2×4i201701-201812
W/O(LOCK),BLACK,TRIM1#,2#
main71955-47010-E1×4i201812
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
71940AHEADREST ASSY, REAR SEAT
main71940-47520-B4×2i201511-201812
BLACK,TRIM1#,2#
main71940-47520-B5×2i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71940-47550-C3×2i201511-201812
BLACK,TRIM1#,2#; FOUR PACKAGE,BLACK,TRIM1#,2#
main71940-47550-E1×2supersedes 71940-47660-E4i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main71940-47660-C1×2i201812
DK.GRAY,TRIM1#,2#
main71940-47550-B3×2i201511-201812
FOUR PACKAGE,NEUTRAL WARM GRAY,TRIM4#; FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-B0i201511-201812
W(LOCK),COOL GRAY,TRIM10; W(LOCK),COOL GRAY,TRIM10,11
main71930-47050-B2i201511-201812
W(LOCK),FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM40; W(LOCK),NEUTRAL WARM GRAY,TRIM40
main71930-47050-C0i201511-201610
W(LOCK),BLACK,TRIM10,11,2#; W(LOCK),BLACK,TRIM10,2#
main71930-47050-C5i201610-201812
W(LOCK),BLACK,TRIM10,2#; W(LOCK),BLACK,TRIM11,2#
main71930-47050-E0i201511-201812
W(LOCK),FOUR TOURING PACKAGE,NEUTRAL BEIGE,TRIM40; W(LOCK),NEUTRAL BEIGE,TRIM40
main71931-47030-B0i201812
W/O(LOCK),COOL GRAY,TRIM10; W/O(LOCK),COOL GRAY,TRIM10,11
main71931-47030-B3i201511-201812
W/O(LOCK),FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM40; W/O(LOCK),NEUTRAL WARM GRAY,TRIM40
main71931-47030-C0i201511-201610
W/O(LOCK),BLACK,TRIM10,11,2#; W/O(LOCK),BLACK,TRIM10,2#
main71931-47030-C4i201812
W/O(LOCK),BLACK,TRIM10,11,2#; W/O(LOCK),BLACK,TRIM10,2#
main71931-47030-E0i201511-201812
W/O(LOCK),FOUR TOURING PACKAGE,NEUTRAL BEIGE,TRIM40; W/O(LOCK),NEUTRAL BEIGE,TRIM40
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-47290-B4i201511-201812
BLACK,TRIM1#,2#
main71960-47290-B5i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71960-47310-C3i201511-201711
BLACK,TRIM1#,2#; FOUR PACKAGE,BLACK,TRIM1#,2#
main71960-47340-C0i201711-201812
BLACK,TRIM1#,2#; FOUR PACKAGE,BLACK,TRIM1#,2#; KOREA SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK,TRIM1#,2#; MEXICO SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK,TRIM1#,2#
main71960-47340-C2i201812
BLACK,TRIM1#,2#; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK,TRIM1#,2#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK,TRIM1#,2#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#
main71960-47340-E1supersedes 71960-47350-E4i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main71960-47350-C1i201812
DK.GRAY,TRIM1#,2#
main71960-47310-B3i201511-201711
FOUR PACKAGE,NEUTRAL WARM GRAY,TRIM4#; FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main71960-47340-B0i201711-201812
FOUR PACKAGE,NEUTRAL WARM GRAY,TRIM4#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
main72061-47010i201511-201812
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
main72062-47010i201511-201812
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-47050-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#; NEUTRAL WARM GRAY,TRIM4#
main72630-47050-C0i201511-201610
BLACK,TRIM1#,2#
main72630-47050-C2i201610-201812
BLACK,TRIM1#,2#
main72630-47050-E2i201812
NEUTRAL BEIGE,TRIM4#
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-47050-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#; NEUTRAL WARM GRAY,TRIM4#
main72640-47050-C0i201511-201610
BLACK,TRIM1#,2#
main72640-47050-C2i201610-201812
BLACK,TRIM1#,2#
main72640-47050-E2i201812
NEUTRAL BEIGE,TRIM4#
72679BEZEL, REAR SEATBACK LOCK CONTROL
main72667-47010-B0×2i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#; NEUTRAL WARM GRAY,TRIM4#
main72667-47010-C0×2i201511-201610
BLACK,TRIM1#,2#
main72667-47010-C1×2i201610-201812
BLACK,TRIM1#,2#
main72667-47010-E2×2i201812
NEUTRAL BEIGE,TRIM4#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-47260-B3i201511-201812
COOL GRAY,TRIM1#
main72830-47260-C5i201511-201805
BLACK,TRIM2#
main72830-47260-C7i201805-201812
BLACK,TRIM2#
main72830-47260-E1i201511-201812
NEUTRAL BEIGE,TRIM4#
main72830-47280-B2i201511-201812
COOL GRAY,TRIM1#; FOUR PACKAGE,COOL GRAY,TRIM1#
main72830-47280-B4i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY,TRIM1#; COOL GRAY,TRIM1#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY,TRIM1#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#
main72830-47280-C4i201511-201805
BLACK,TRIM2#; FOUR PACKAGE,BLACK,TRIM2#
main72830-47280-C6i201805-201812
BLACK,TRIM2#; FOUR PACKAGE,BLACK,TRIM2#; KOREA SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#; MEXICO SPEC&UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main72830-47280-C9i201812
BLACK,TRIM2#; CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#
main72830-47280-E2supersedes 72830-47310-E3i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#; KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main72830-47310-B3i201812
COOL GRAY,TRIM1#
main72830-47310-C4i201812
BLACK,TRIM2#
main72830-47280-E1i201511-201812
FOUR PACKAGE,NEUTRAL BEIGE,TRIM4#; FOUR TOURING PACKAGE,NEUTRAL BEIGE,TRIM4#
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i201812
72868BCOVER, CENTER ARMREST HINGE
main72868-47050-B0i201812
COOL GRAY,TRIM1#
main72868-47050-C0i201511-201805
BLACK,TRIM2#
main72868-47050-C1i201805-201812
BLACK,TRIM2#
main72868-47050-E0i201812
NEUTRAL BEIGE,TRIM4#
7889960070BOLT, FRONT SEAT
main78899-60070
9020612064
main90206-12064
9151180820
main91511-80820
9155180835
main91551-80835
91552K1025
main91552-K1025
9167281025
main91672-81025

30 parts on this diagram · 4 diagrams in section
