EPC Data

FRONT SEAT & SEAT TRACK

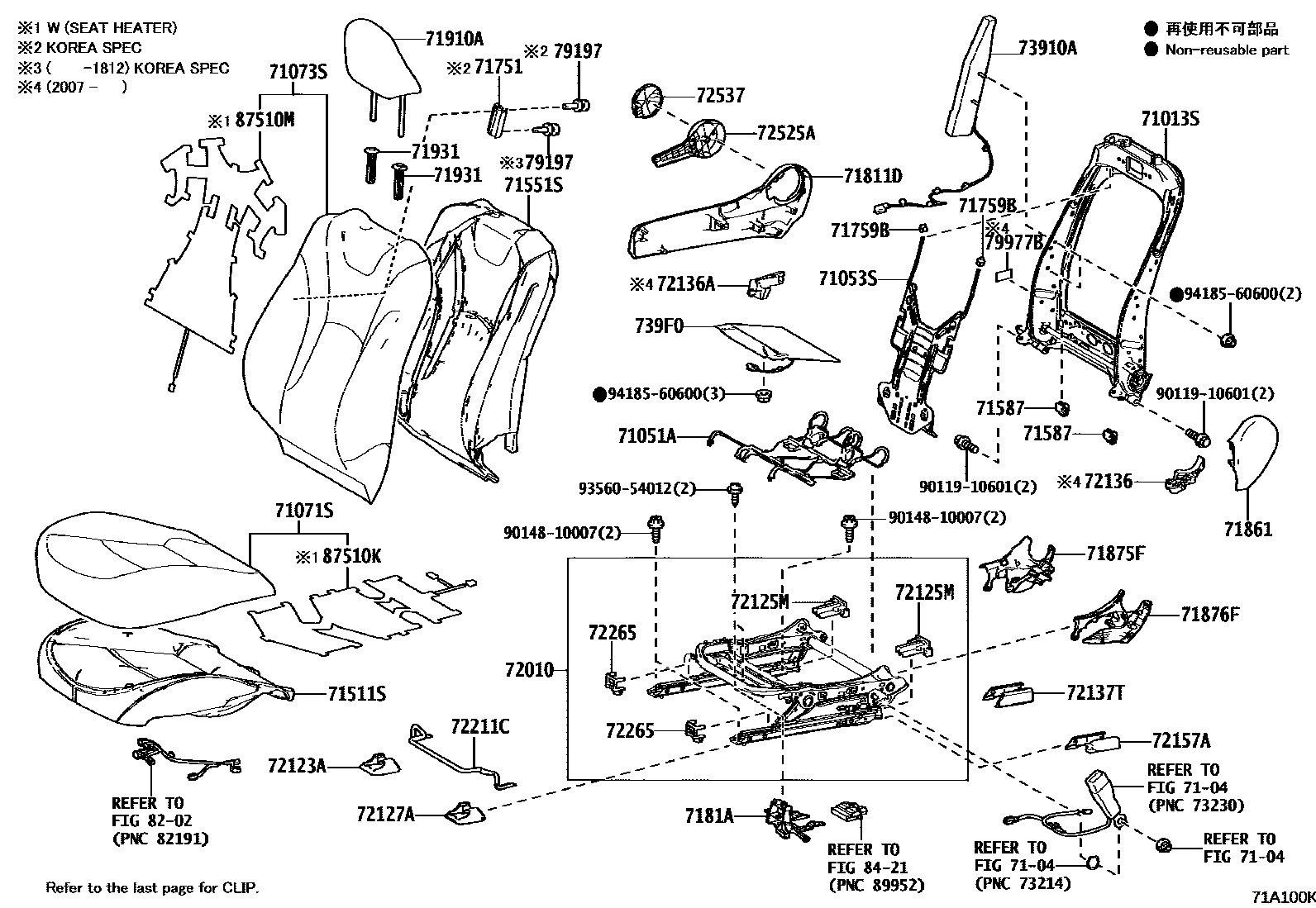

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-47130i201511-201705
main71013-47150i201705-202007
main71013-47180i202007
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-47090i201511-201812
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-47050i201511-201812
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-47830-B3i201511-201812
COOL GRAY,TRIM1#
main71071-47830-C3i201511-201812
BLACK,TRIM2#
main71071-47830-E3i201511-201812
NEUTRAL BEIGE,TRIM4#
main71071-47880-B3i201511-201812
COOL GRAY/BLUE,TRIM1#
main71071-47880-C3i201511-201812
BLACK/BLUE,TRIM2#
main71071-47A50-B2i201511-201812
COOL GRAY,TRIM1#
main71071-47A50-C2i201511-201812
BLACK,TRIM2#
main71071-47A50-E2i201511-201812
NEUTRAL BEIGE,TRIM4#
main71071-47A80-B7i201812
COOL GRAY,TRIM1#
main71071-47A80-C7i201812
BLACK,TRIM2#
main71071-47B70-B0i201812
COOL GRAY/TURQUOISE,TRIM10
main71071-47B70-B0i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/TURQUOISE,TRIM10
main71071-47B70-B1i201812
COOL GRAY/BLUE,TRIM11
main71071-47B70-B1i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLUE,TRIM11
main71071-47B70-C0i201812
BLACK/DK.GRAY,TRIM20
main71071-47B70-C0i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM20
main71071-47B70-C1i201812
BLACK/BLUE,TRIM21
main71071-47B70-C1i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLUE,TRIM21
main71071-47B70-E0i201812
NEUTRAL BEIGE/GRAY,TRIM4#
main71071-47B70-E0i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#
main71071-47D10-B6i201812
COOL GRAY,TRIM1#
main71071-47D10-C5i201812
BLACK,TRIM2#
main71071-47D10-E4i201812
NEUTRAL BEIGE,TRIM4#
main71071-47E30-B0i201812
COOL GRAY/TURQUOISE,TRIM10
main71071-47E30-B0i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71071-47E30-B0i201812
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/TURQUOISE,TRIM10
main71071-47E30-B1i201812
COOL GRAY/BLUE,TRIM11
main71071-47E30-B1i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71071-47E30-B1i201812
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/BLUE,TRIM11
main71071-47E30-C0i201812
BLACK/DK.GRAY,TRIM20
main71071-47E30-C0i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71071-47E30-C0i201812
FRONT SEAT-DRIVER(8-WAY),BLACK/DK.GRAY,TRIM20
main71071-47E30-C1i201812
FRONT SEAT-DRIVER(8-WAY),BLACK/BLUE,TRIM21
main71071-47E30-C1i201812
BLACK/BLUE,TRIM21
main71071-47E30-C1i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71071-47E30-E0i201812
NEUTRAL BEIGE/GRAY,TRIM4#
main71071-47E30-E0i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#
main71071-47E30-E0i201812
FRONT SEAT-DRIVER(8-WAY),NEUTRAL BEIGE/GRAY,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-47690-B5i201511-201812
COOL GRAY,TRIM1#
main71073-47690-C4i201511-201812
BLACK,TRIM2#
main71073-47690-E5i201511-201812
NEUTRAL BEIGE,TRIM4#
main71073-47730-B5i201511-201708
COOL GRAY/BLUE,TRIM1#
main71073-47730-B6i201708-201812
COOL GRAY/BLUE,TRIM1#
main71073-47730-C4i201511-201708
BLACK/BLUE,TRIM2#
main71073-47730-C5i201708-201812
BLACK/BLUE,TRIM2#
main71073-47890-B1i201511-201812
COOL GRAY,TRIM1#
main71073-47890-C1i201511-201812
BLACK,TRIM2#
main71073-47890-E1i201511-201812
NEUTRAL BEIGE,TRIM4#
main71073-47A90-B0i201812-202007
COOL GRAY/TURQUOISE,TRIM10
main71073-47A90-B0i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/TURQUOISE,TRIM10
main71073-47A90-B1i201812-202007
COOL GRAY/BLUE,TRIM11
main71073-47A90-B1i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLUE,TRIM11
main71073-47A90-C0i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM20
main71073-47A90-C0i201812-202007
BLACK/DK.GRAY,TRIM20
main71073-47A90-C1i201812-202007
BLACK/BLUE,TRIM21
main71073-47A90-C1i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLUE,TRIM21
main71073-47A90-E0i201812-202007
NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47A90-E0i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47B60-B4i201812-202007
COOL GRAY,TRIM1#
main71073-47B60-C5i201812-202007
BLACK,TRIM2#
main71073-47C70-B4i201812-202007
COOL GRAY,TRIM1#
main71073-47C70-C4i201812-202007
BLACK,TRIM2#
main71073-47C70-E4i201812-202007
NEUTRAL BEIGE,TRIM4#
main71073-47D80-B0i201812-202007
COOL GRAY/TURQUOISE,TRIM10
main71073-47D80-B0i201812-202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71073-47D80-B0i201812-202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71073-47D80-B0i201812-202007
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/TURQUOISE,TRIM10
main71073-47D80-B1i201812-202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71073-47D80-B1i201812-202007
COOL GRAY/BLUE,TRIM11
main71073-47D80-B1i201812-202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71073-47D80-B1i201812-202007
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/BLUE,TRIM11
main71073-47D80-C0i201812-202007
BLACK/DK.GRAY,TRIM20
main71073-47D80-C0i201812-202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71073-47D80-C0i201812-202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71073-47D80-C0i201812-202007
FRONT SEAT-DRIVER(8-WAY),BLACK/DK.GRAY,TRIM20
main71073-47D80-C1i201812-202007
BLACK/BLUE,TRIM21
main71073-47D80-C1i201812-202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71073-47D80-C1i201812-202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71073-47D80-C1i201812-202007
FRONT SEAT-DRIVER(8-WAY),BLACK/BLUE,TRIM21
main71073-47D80-E0i201812-202007
NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47D80-E0i201812-202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47D80-E0i201812-202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47D80-E0i201812-202007
FRONT SEAT-DRIVER(8-WAY),NEUTRAL BEIGE/GRAY,TRIM4#
main71073-47E10-B1i202007
COOL GRAY/TURQUOISE,TRIM10
main71073-47E10-B1i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71073-47E10-B1i202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71073-47E10-B1i202007
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/TURQUOISE,TRIM10
main71073-47E10-B1i202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)&GARAGE OPENER-WITH,COOL GRAY/TURQUOISE,TRIM10
main71073-47E10-B2i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71073-47E10-B2i202007
COOL GRAY/BLUE,TRIM11
main71073-47E10-B2i202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71073-47E10-B2i202007
FRONT SEAT-DRIVER(8-WAY),COOL GRAY/BLUE,TRIM11
main71073-47E10-B2i202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)&GARAGE OPENER-WITH,COOL GRAY/BLUE,TRIM11
main71073-47E10-C1i202007
BLACK/DK.GRAY,TRIM20
main71073-47E10-C1i202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71073-47E10-C1i202007
FRONT SEAT-DRIVER(8-WAY),BLACK/DK.GRAY,TRIM20
main71073-47E10-C1i202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)&GARAGE OPENER-WITH,BLACK/DK.GRAY,TRIM20
main71073-47E10-C1i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71073-47E10-C2i202007
BLACK/BLUE,TRIM21
main71073-47E10-C2i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71073-47E10-C2i202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71073-47E10-C2i202007
FRONT SEAT-DRIVER(8-WAY),BLACK/BLUE,TRIM21
main71073-47E10-C2i202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)&GARAGE OPENER-WITH,BLACK/BLUE,TRIM21
main71073-47E10-E0i202007
MEXICO SPEC&MEXICO UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)&GARAGE OPENER-WITH,NEUTRAL BEIGE,TRIM4#
main71073-47E10-E0i202007
NEUTRAL BEIGE,TRIM4#
main71073-47E10-E0i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#
main71073-47E10-E0i202007
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#
main71073-47E10-E0i202007
FRONT SEAT-DRIVER(8-WAY),NEUTRAL BEIGE,TRIM4#
main71073-47E20-B0i202007
COOL GRAY,TRIM1#
main71073-47E20-C0i202007
BLACK,TRIM2#
main71073-47E20-E0i202007
NEUTRAL BEIGE,TRIM4#
main71073-47E30-B0i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/TURQUOISE,TRIM10
main71073-47E30-B0i202007
COOL GRAY/TURQUOISE,TRIM10
main71073-47E30-B0i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/TURQUOISE,TRIM10
main71073-47E30-B1i202007
COOL GRAY/BLUE,TRIM11
main71073-47E30-B1i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLUE,TRIM11
main71073-47E30-B1i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLUE,TRIM11
main71073-47E30-C0i202007
BLACK/DK.GRAY,TRIM20
main71073-47E30-C0i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM20
main71073-47E30-C0i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM20
main71073-47E30-C1i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLUE,TRIM21
main71073-47E30-C1i202007
BLACK/BLUE,TRIM21
main71073-47E30-C1i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLUE,TRIM21
main71073-47E30-E0i202007
NEUTRAL BEIGE,TRIM4#
main71073-47E30-E0i202007
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main71073-47E30-E0i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main71073-47E50-B0i202007
COOL GRAY,TRIM1#
main71073-47E50-C0i202007
BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-47260i201511-201812
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-47260i201511-202007
main71551-47330i202007
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010i201812
71751HANGER, SEAT COVER
main71751-47050
71759BHOOK, FRONT SEATBACK
main71759-50040i201511-201812
main71759-52050i201812-202007
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-33430-C0i202007
BLACK,TRIM1#,2#
main71811-33430-C0i202007
BLACK,TRIM1#,2#,4#
main71811-47150-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main71811-47150-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71811-47150-C0i201511-201610
BLACK,TRIM1#,2#
main71811-47150-C1i201812-202007
BLACK,TRIM1#,2#,4#
main71811-47150-C1i201610-202007
BLACK,TRIM1#,2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-47010i201511-201812
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-47080-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71861-47080-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main71861-47080-C0i201511-201610
BLACK,TRIM1#,2#
main71861-47080-C1i201610-201812
BLACK,TRIM1#,2#
main71861-47080-C1i201812
BLACK,TRIM1#,2#,4#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-47060-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main71875-47060-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71875-47060-C0i201511-201610
BLACK,TRIM1#,2#
main71875-47060-C1i201812
BLACK,TRIM1#,2#,4#
main71875-47060-C1i201610-201812
BLACK,TRIM1#,2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-47080-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main71875-47080-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main71875-47080-C0i201511-201610
BLACK,TRIM1#,2#
main71875-47080-C1i201610-201812
BLACK,TRIM1#,2#
main71875-47080-C1i201812
BLACK,TRIM1#,2#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-47420-B1i201511-201812
COOL GRAY,TRIM1#
main71910-47420-C1i201511-201812
BLACK,TRIM2#
main71910-47420-E1i201511-201812
NEUTRAL BEIGE,TRIM4#
main71910-47430-21i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/DK.GRAY,TRIM20
main71910-47430-21i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM20
main71910-47430-21i201812
BLACK/DK.GRAY,TRIM20
main71910-47430-22i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
main71910-47430-22i201812
BLACK/BLUE,TRIM21
main71910-47430-22i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/BLUE,TRIM21
main71910-47430-B2i201511-201812
COOL GRAY,TRIM1#
main71910-47430-B2i201511-201812
FOUR PACKAGE,COOL GRAY,TRIM11
main71910-47430-B8i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/TURQUOISE,TRIM10
main71910-47430-B8i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/TURQUOISE,TRIM10
main71910-47430-B8i201812
COOL GRAY/TURQUOISE,TRIM10
main71910-47430-B9i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY/BLUE,TRIM11
main71910-47430-B9i201812
COOL GRAY/BLUE,TRIM11
main71910-47430-B9i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),COOL GRAY/BLUE,TRIM11
main71910-47430-C2i201511-201812
BLACK,TRIM2#
main71910-47430-C2i201511-201812
FOUR PACKAGE,BLACK,TRIM21
main71910-47430-E5i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP),NEUTRAL BEIGE,TRIM4#
main71910-47430-E5i201812
SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4#
main71910-47430-E5i201812
NEUTRAL BEIGE,TRIM4#
main71910-47580-B4i201812
COOL GRAY,TRIM1#
main71910-47580-C8i201812
BLACK,TRIM2#
main71910-47620-B4i201812
COOL GRAY/TURQUOISE,TRIM1#
main71910-47620-C8i201812
BLACK/DK.GRAY,TRIM2#
main71910-47620-E5i201812
NEUTRAL BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-B0i201511-201812
W(LOCK),COOL GRAY,TRIM10,11
main71930-47050-B0i201511-201812
W(LOCK),COOL GRAY,TRIM10
main71930-47050-B2i201511-201812
W(LOCK),NEUTRAL WARM GRAY,TRIM40
main71930-47050-B2i201511-201812
W(LOCK),FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM40
main71930-47050-C0i201511-201610
W(LOCK),BLACK,TRIM10,11,2#
main71930-47050-C0i201511-201610
W(LOCK),BLACK,TRIM10,2#
main71930-47050-C5i201610-201812
W(LOCK),BLACK,TRIM11,2#
main71930-47050-C5i201610-201812
W(LOCK),BLACK,TRIM10,2#
main71930-47050-C5i201812
W(LOCK),BLACK,TRIM10,11,2#
main71930-47050-E0i201511-201812
W(LOCK),FOUR TOURING PACKAGE,NEUTRAL BEIGE,TRIM40
main71930-47050-E0i201511-201812
W(LOCK),NEUTRAL BEIGE,TRIM40
main71930-47050-E0i201812
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-47030-B0i201511-201812
W/O(LOCK),COOL GRAY,TRIM10,11
main71931-47030-B0i201511-201812
W/O(LOCK),COOL GRAY,TRIM10
main71931-47030-B3i201511-201812
W/O(LOCK),FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM40
main71931-47030-B3i201511-201812
W/O(LOCK),NEUTRAL WARM GRAY,TRIM40
main71931-47030-C0i201511-201610
W/O(LOCK),BLACK,TRIM10,11,2#
main71931-47030-C0i201511-201610
W/O(LOCK),BLACK,TRIM10,2#
main71931-47030-C4i201610-201812
W/O(LOCK),BLACK,TRIM11,2#
main71931-47030-C4i201610-201812
W/O(LOCK),BLACK,TRIM10,2#
main71931-47030-C4i201812
W/O(LOCK),BLACK,TRIM10,11,2#
main71931-47030-E0i201511-201812
W/O(LOCK),NEUTRAL BEIGE,TRIM40
main71931-47030-E0i201511-201812
W/O(LOCK),FOUR TOURING PACKAGE,NEUTRAL BEIGE,TRIM40
main71931-47030-E0i201812
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-47390i201511-201811
main72010-47391i201812
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-47060i201511-201812
72125MCOVER, SEAT TRACK, UPPER NO.3
main72125-47010i201511-201803
INNER
main72125-47010i201803-201812
main72125-47020i201511-201803
OUTER
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-47060i201511-201812
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-33260i202007
72136ASPACER, SEAT TRACK, LOWER NO.2
main72136-47130i202007
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-47060i201511-201812
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-47080i201511-201812
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050i201511-201812
FOUR PACKAGE
main72211-47050i201511-201812
FOUR TOURING PACKAGE
main72211-47050i201812
FRONT SEAT-DRIVER(8-WAY)
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-47010i201511-201812
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-33050-C0i202007
BLACK,TRIM1#,2#
main72525-33050-C0i202007
BLACK,TRIM1#,2#,4#
main72525-47040-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main72525-47040-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main72525-47040-C0i201511-201610
BLACK,TRIM1#,2#
main72525-47040-C1i201812-202007
BLACK,TRIM1#,2#,4#
main72525-47040-C1i201610-202007
BLACK,TRIM1#,2#
72537COVER, RECLINING HINGE OUTER, RH
main72551-33010-C0i202007
BLACK,TRIM1#,2#
main72551-33010-C0i202007
BLACK,TRIM1#,2#,4#
main72551-47030-B0i201511-201812
FOUR TOURING PACKAGE,NEUTRAL WARM GRAY,TRIM4#
main72551-47030-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main72551-47030-C0i201511-201610
BLACK,TRIM1#,2#
main72551-47030-C1i201812-202007
BLACK,TRIM1#,2#,4#
main72551-47030-C1i201610-202007
BLACK,TRIM1#,2#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-47100i201511-202007
main73910-47120i202007
739F0AIRBAG ASSY, FRONT SEAT CUSHION, RH
main739F0-10010i202008
main739F0-47010i201511-202008
79197HOOK, SEATBACK COVER
main79197-47010
79977BFELT, SEATBACK FRAME
main79977-12090i202007
8202WIRING & CLAMP
→ Go to FIG 82-02
8421AIR BAG
→ Go to FIG 84-21
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-47180i201812
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)
main87510-47180i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)
main87510-47180i201812
CANADA SPEC&SEAT HEATER-WITH(*DRP)
main87510-47180i201812
FRONT SEAT-DRIVER(8-WAY)
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-47040i201812
CANADA SPEC&SEAT HEATER-WITH(*DRP)
main87530-47040i201812
KOREA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)
main87530-47040i201812
CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(*DRP)
main87530-47040i201812
FRONT SEAT-DRIVER(8-WAY)
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600

42 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
