CONSOLE BOX & BRACKET

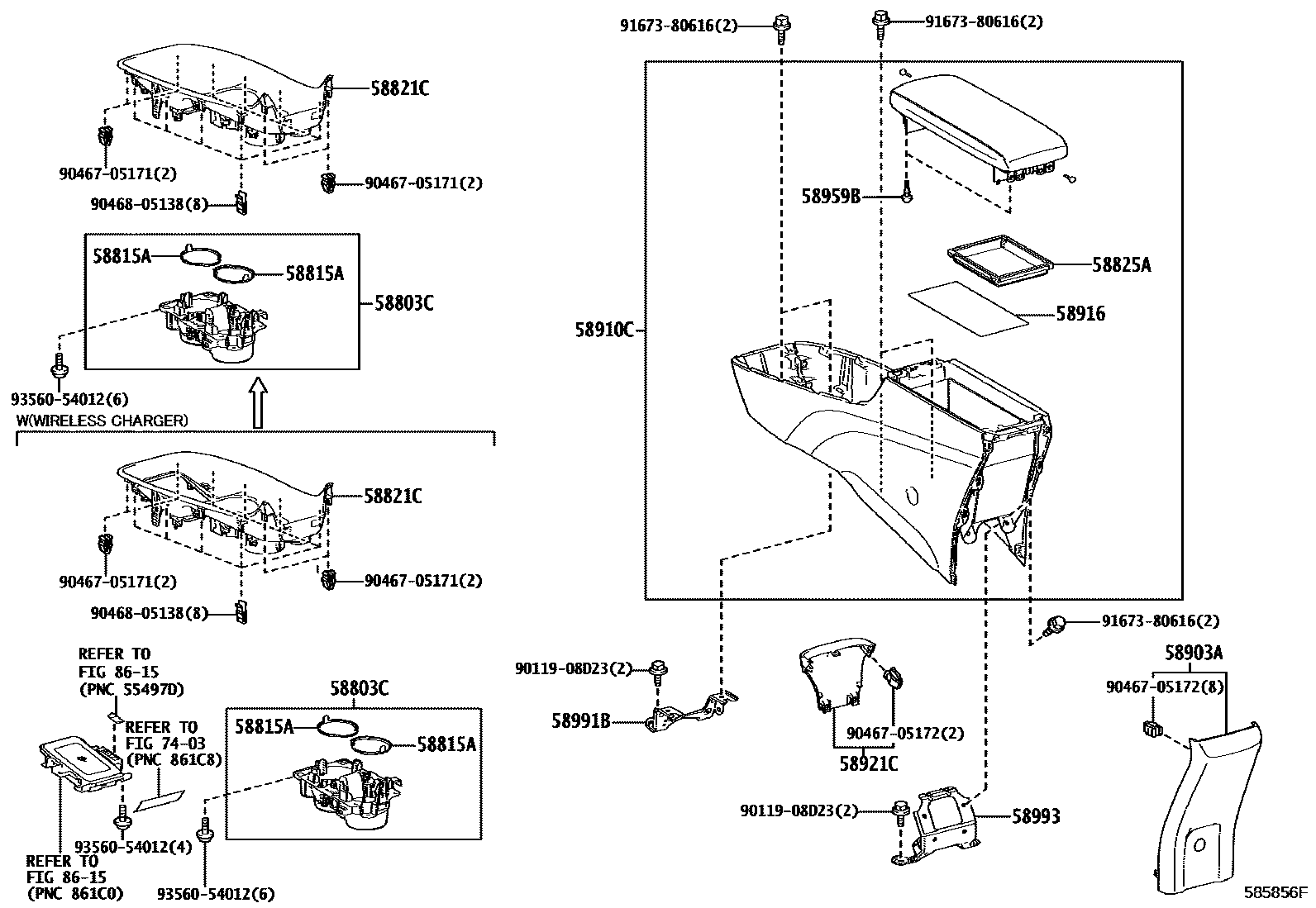

Parts diagram
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-47010i201511-201606
KOREA SPEC&UPPER PACKAGE
sub58803-47011
main58803-47010i201511-201606
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER
sub58803-47011
main58803-47011-A0i201606-201610
KOREA SPEC,WHITE
main58803-47011-A0i201606-201610
KOREA SPEC&UPPER PACKAGE,WHITE
main58803-47011-A0i201606-201610
WHITE
main58803-47011-A0i201606-201610
USA POSSESSION SPEC,WHITE
main58803-47011-A0i201606-201610
HAWAII SPEC,WHITE
main58803-47011-A0i201606-201610
MEXICO SPEC,WHITE
main58803-47011-A0i201606-201610
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE
main58803-47011-A0i201610-201812
WHITE,TRIM1#
main58803-47011-A0i201610-201812
USA POSSESSION SPEC,WHITE,TRIM1#
main58803-47011-A0i201610-201812
HAWAII SPEC,WHITE,TRIM1#
main58803-47011-A0i201610-201812
MEXICO SPEC,WHITE,TRIM1#
main58803-47011-A0i201610-201812
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE,TRIM1#
main58803-47011-A0i201610-201812
KOREA SPEC,WHITE,TRIM1#
main58803-47011-A0i201610-201812
KOREA SPEC&UPPER PACKAGE,WHITE,TRIM1#
main58803-47011-C0i201610-201812
HAWAII SPEC,BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
BLACK METALLC,TRIM2#
main58803-47011-C0i201610-201812
USA POSSESSION SPEC,BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
MEXICO SPEC,BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
KOREA SPEC,BLACK METALLC,TRIM2#,4#
main58803-47011-C0i201610-201812
KOREA SPEC&UPPER PACKAGE,BLACK METALLC,TRIM2#,4#
main58803-47020i201511-201812
main58803-47050i201812
58815ACARPET, CONSOLE BOX
main58815-47080i201511-201812
58821CPANEL, CONSOLE, UPPER
main58821-47040i201511-201606
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER
sub58821-47041
main58821-47040i201511-201606
KOREA SPEC&UPPER PACKAGE
sub58821-47041
main58821-47041-A0i201606-201610
WHITE
main58821-47041-A0i201606-201610
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE
main58821-47041-A0i201606-201610
KOREA SPEC&UPPER PACKAGE,WHITE
main58821-47041-A0i201610-201812
WHITE,TRIM1#
main58821-47041-A0i201610-201812
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,WHITE,TRIM1#
main58821-47041-A0i201610-201812
KOREA SPEC&UPPER PACKAGE,WHITE,TRIM1#
main58821-47041-C0i201610-201812
BLACK METALLC,TRIM2#,4#
main58821-47041-C0i201610-201812
BLACK METALLC,TRIM2#
main58821-47041-C0i201610-201812
MEXICO SPEC&UPPER PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK METALLC,TRIM2#,4#
main58821-47041-C0i201610-201812
KOREA SPEC&UPPER PACKAGE,BLACK METALLC,TRIM2#,4#
main58821-47070i201511-201812
main58821-47130-C0i201812
BLACK METALLC,TRIM1#,2#,4#
main58821-47150i201812
58825APOCKET, CONSOLE BOX
main58825-47060i201511-201812
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-47050-B0i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main58903-47050-C0i201511-201812
BLACK,TRIM1#,2#
main58903-47110-C0i201812
BLACK,TRIM1#,2#
main58903-47110-C0i201812
BLACK,TRIM1#,2#,4#
58910CBOX ASSY, CONSOLE, REAR
main58910-47010-B1i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main58910-47010-B1i201511-201812
FOUR PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL WARM GRAY,TRIM4#
main58910-47010-B1i201511-201812
FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL WARM GRAY,TRIM4#
main58910-47010-C2i201812-202007
BLACK,TRIM1#,2#,4#
main58910-47010-C2i201511-201812
BLACK,TRIM1#,2#
main58910-47010-C2i201511-201812
FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#
main58910-47010-C2i201511-201812
FOUR PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#
main58910-47010-C2i201812-202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#,4#
main58910-47020-B2i201511-201812
NEUTRAL WARM GRAY,TRIM4#
main58910-47020-C3i201511-202007
BLACK,TRIM1#,2#
main58910-47020-C3i201812-202007
BLACK,TRIM1#,2#,4#
main58910-47170-C0i202007
BLACK,TRIM1#,2#,4#
main58910-47170-C0i202007
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#,4#
main58910-47180-C0i202007
BLACK,TRIM1#,2#
main58910-47180-C0i202007
BLACK,TRIM1#,2#,4#
58916MAT, BOX BOTTOM
main58916-47020i201511-202007
main58916-47060i202007
58921CPLATE, BOX, UPPER NO.1
main58921-47020i201511-201606
HAWAII SPEC
sub58921-47021
main58921-47020i201511-201606
USA POSSESSION SPEC
sub58921-47021
main58921-47020i201511-201606
MEXICO SPEC
sub58921-47021
main58921-47020i201511-201606
KOREA SPEC
sub58921-47021
main58921-47021-A0i201607-201812
HAWAII SPEC,WHITE,TRIM1#
main58921-47021-A0i201607-201812
MEXICO SPEC,WHITE,TRIM1#
main58921-47021-A0i201607-201812
KOREA SPEC,WHITE,TRIM1#
main58921-47021-A0i201607-201812
WHITE,TRIM1#
main58921-47021-A0i201607-201812
USA POSSESSION SPEC,WHITE,TRIM1#
main58921-47021-C0i201610-201812
BLACK METALLC,TRIM2#,4#
main58921-47021-C0i201610-201812
BLACK METALLC,TRIM2#
main58921-47021-C0i201610-201812
USA POSSESSION SPEC,BLACK METALLC,TRIM2#,4#
main58921-47021-C0i201610-201812
HAWAII SPEC,BLACK METALLC,TRIM2#,4#
main58921-47021-C0i201610-201812
MEXICO SPEC,BLACK METALLC,TRIM2#,4#
main58921-47021-C0i201610-201812
KOREA SPEC,BLACK METALLC,TRIM2#,4#
main58921-47030i201511-201812
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main90541-03078i201511-201812
58991BBRACKET, CONSOLE BOX MOUNTING, FRONT
main58991-47020i201511-201812
58993BRACKET, CONSOLE BOX MOUNTING, REAR
main58996-47030i201511-202007
7403
8615
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046805138
main90468-05138
9167380616
main91673-80616
9356054012
main93560-54012

19 parts on this diagram · 2 diagrams in section
