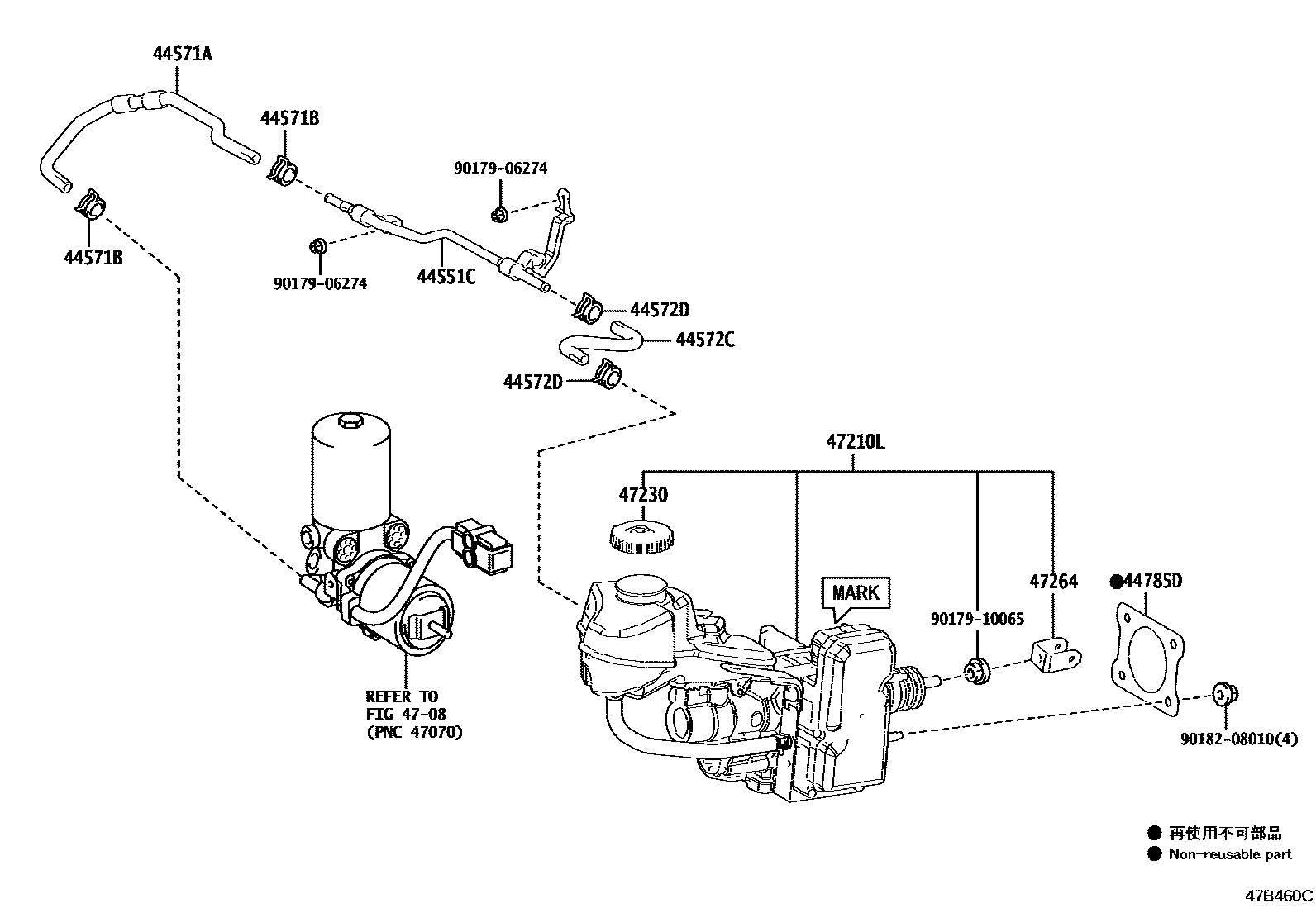

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050i201511-201812

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47070i201812

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501×2i201511-201812

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050i201511-201812

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501×2i201511-201812

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040i201812

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47550i201511-201710

main47050-47551i201711-201812

main47050-47C80i201812-201904

main47050-47E90i201904-202007

MARK=47210-47C60

main47050-47J30i202007

MARK=47210-47D90

main47050-47580i201511-201710

MEXICO SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM); USA POSSESSION SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

main47050-47581i201711-201812

MEXICO SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM); USA POSSESSION SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

main47050-47C90i201812-201904

USA DOMAIN SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&SPARE TIRE-GROUND TIRE

main47050-47F00i201904-202007

USA DOMAIN SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&SPARE TIRE-GROUND TIRE,MARK=47210-47C60

main47050-47J40i202007

GUAM,SAIPAN SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM),MARK=47210-47D90; USA DOMAIN SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&SPARE TIRE-GROUND TIRE,MARK=47210-47D90

main47050-47K90i202106

KOREA SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

main47050-47L00i202007

MEXICO SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&SPARE TIRE-TEMPORARY(T125/70D17)

main47050-47L40i201812-202007

KOREA SPEC

main47050-47L50i201812-202007

MEXICO SPEC&ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&SPARE TIRE-TEMPORARY(T125/70D17)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330i202002-202006

main47230-47090i201511-201812

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010i201812

9017906274

main90179-06274

9017910065

main90179-10065

9018208010

main90182-08010

13 parts on this diagram · 1 diagram in section
