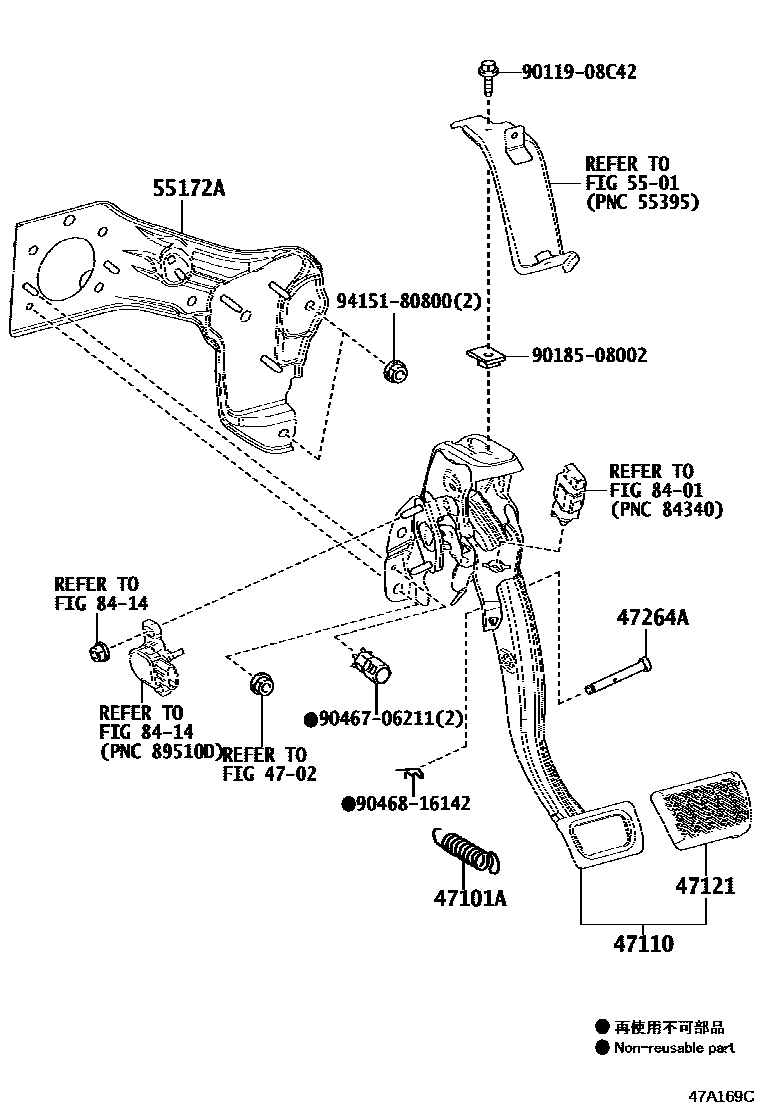

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZVW5#201812

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47060iZVW5#201511-201812

47121PAD, BRAKE PEDAL

main47121-47010iZVW5#201812

47264APIN(FOR PUSH ROD)

main90249-08309iZVW5#201511-201812

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iZVW5#201812

main55172-47030iZVW5#201511-201812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
