Toyota 2824A0 — MANIFOLD

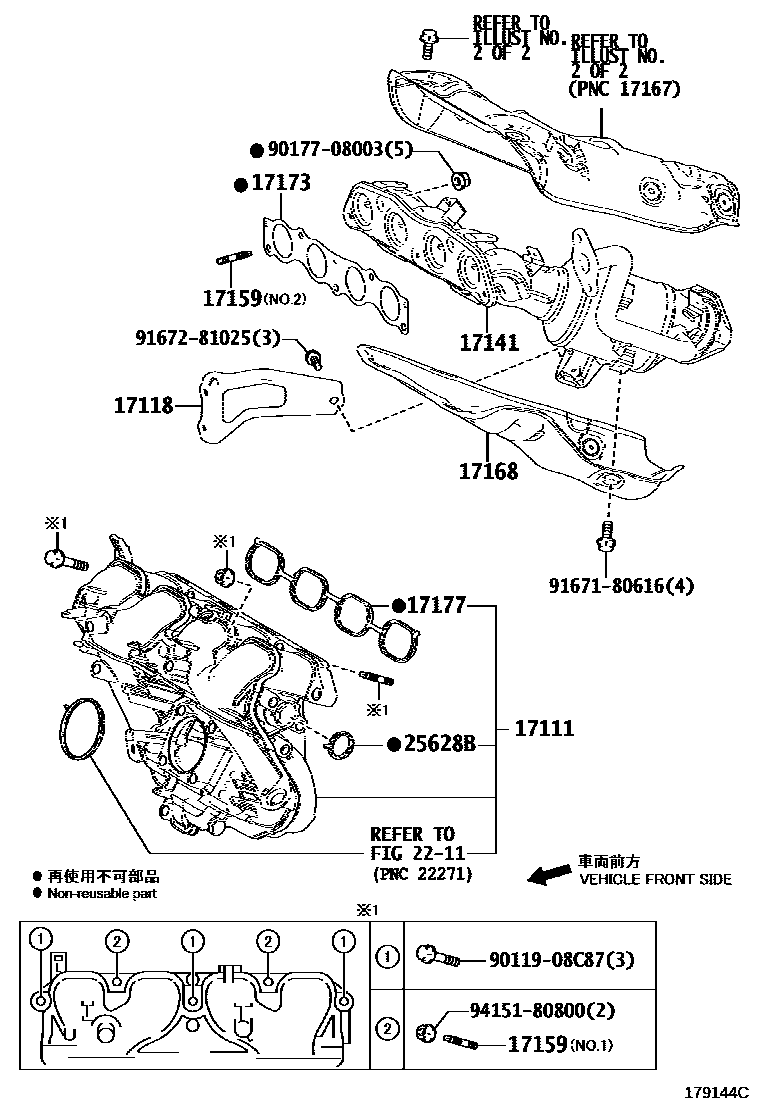

Parts diagram

17111MANIFOLD, INTAKE

17118STAY, MANIFOLD

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25628BGASKET, EGR INLET

9011908C87

9017708003

9167180616

9167281025

9415180800

14 parts on this diagram · 2 diagrams in section

MANIFOLD for Toyota 2824A0

This section contains 15 genuine Toyota parts for the MANIFOLD system of the Toyota 2824A0. Key components include: MANIFOLD, INTAKE, STAY, MANIFOLD, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD), INSULATOR, EXHAUST MANIFOLD HEAT, NO.1.
