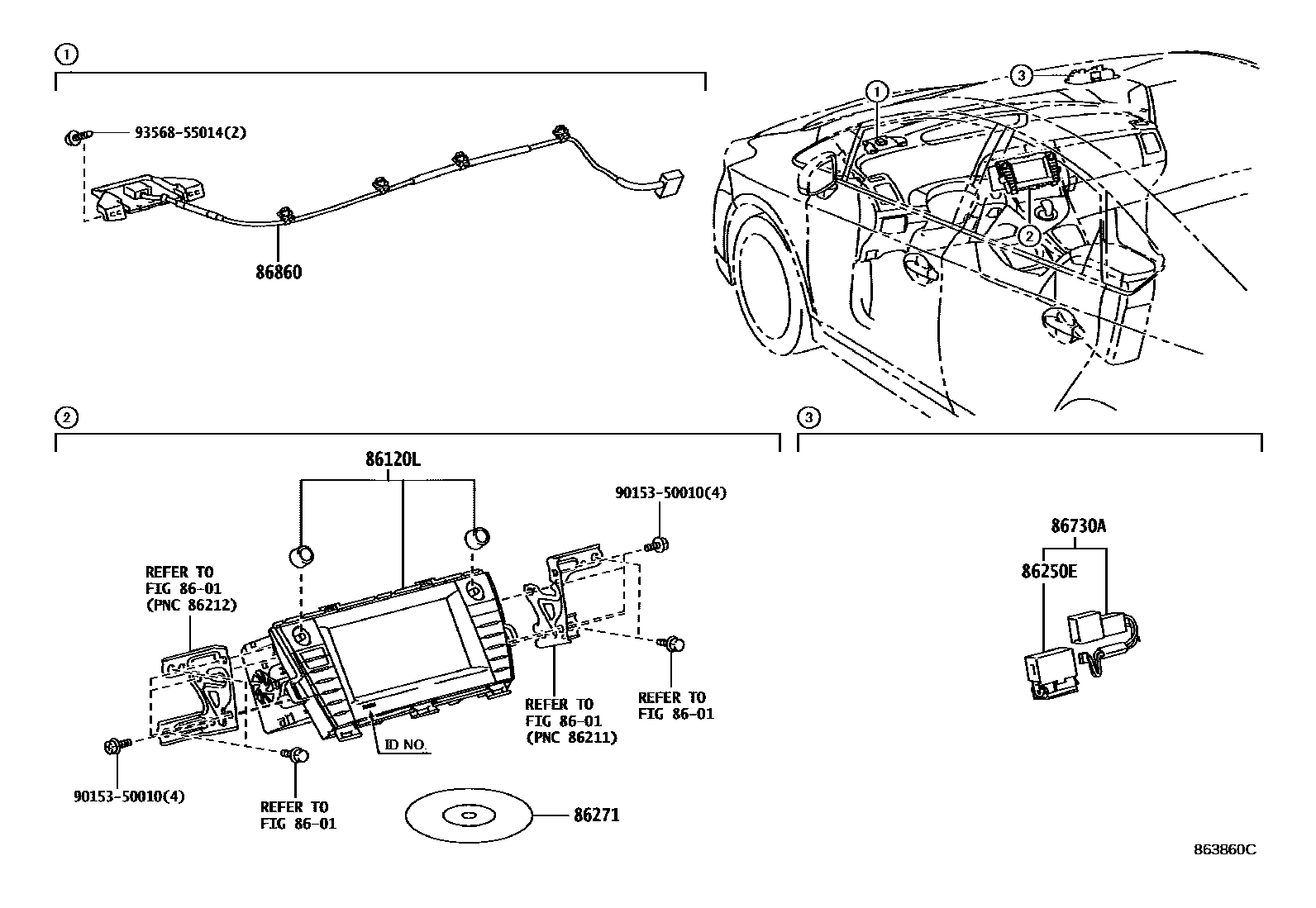

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-47390i200904-201112

DENSO,ID=E7022,AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

main86120-47480i200904-201105

DENSO,ID=E8021,KOREA SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER

main86120-47481i201105-201112

DENSO,KOREA SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030i200904-201112

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-AVN,BLUETOOTH,8SPEAKER; AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER; MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; MOON ROOF-WITH(SOLAR PANEL)&AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER

86271DISC, DISC PLAYER

main86271-73010i200904-200907

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

main86271-73011i200908-201007

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

main86271-73012i201008-201106

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

main86271-73013i201107-201112

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-20050i201112-201511

AUDIO-RADIO LESS,6SPEAKER

main86730-48040supersedes 86730-20050i200904-201112

MAYDAY SYSTEM-WITH; MOON ROOF-WITH(SOLAR PANEL); MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; MOON ROOF-WITH(SOLAR PANEL)&AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER; MOON ROOF-WITH(SOLAR PANEL)&MAYDAY SYSTEM-WITH

86860ANTENNA ASSY, NAVIGATION

main86860-47070i200904-201112

AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-AVN,BLUETOOTH,8SPEAKER

9015350010

main90153-50010

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
