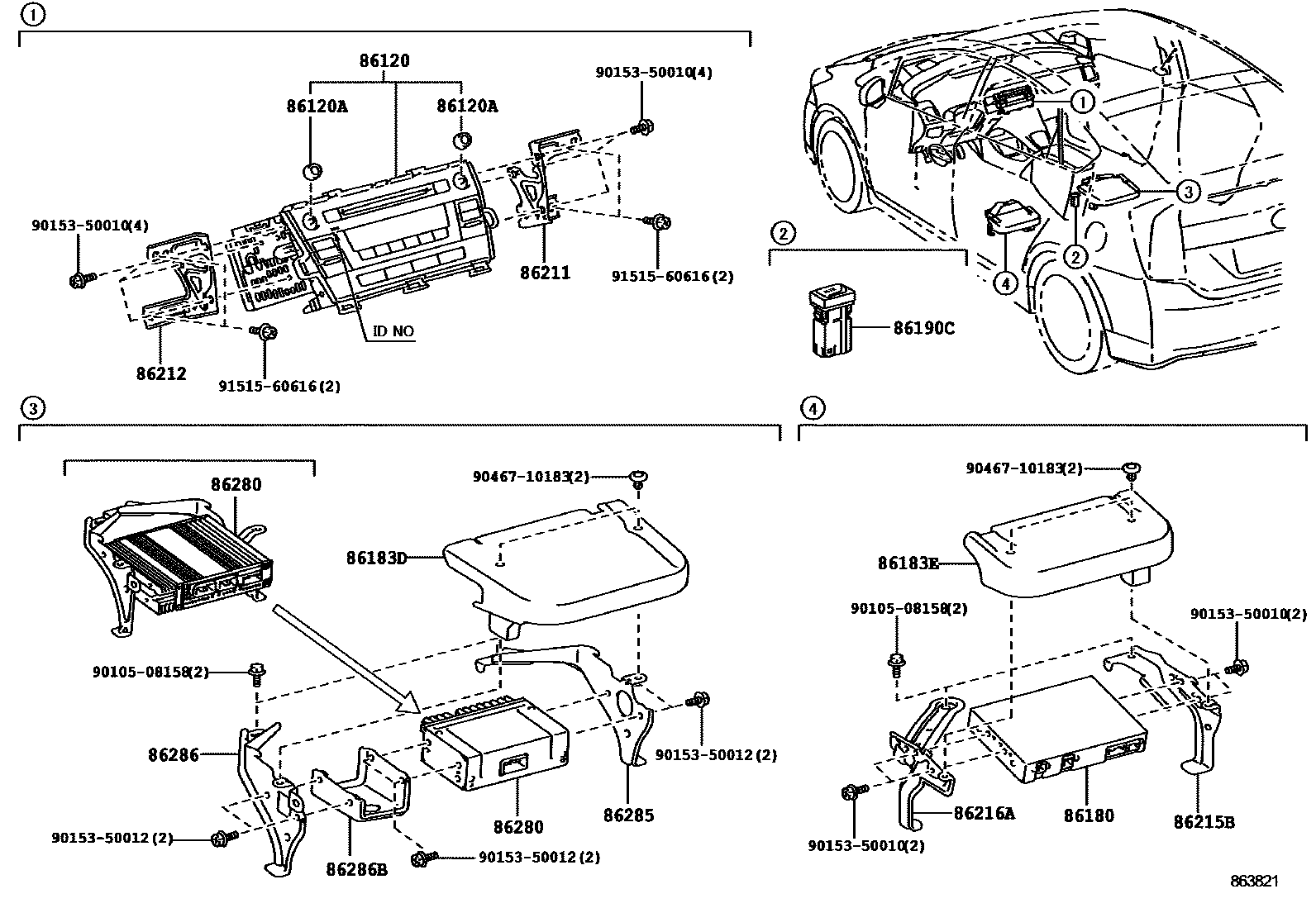

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
MATSUSHITA,ID=51883; MATSUSHITA,ID=51883,AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; MATSUSHITA,ID=51883,KOREA SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER
MATSUSHITA,ID=51882; MATSUSHITA,ID=51882,AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; MATSUSHITA,ID=51882,AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
MATSUSHITA,ID=51885,AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; KOREA SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER
86180TUNER ASSY, STEREO COMPONENT
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
86183DCOVER, AUDIO AMPLIFIER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-AVN,BLUETOOTH,8SPEAKER; AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
86183ECOVER, AUDIO AMPLIFIER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
86211BRACKET, RADIO, NO.1
KOREA SPEC
86212BRACKET, RADIO, NO.2
KOREA SPEC
86215BBRACKET, RADIO RECEIVER, RH
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
86216ABRACKET, RADIO RECEIVER, LH
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
AUDIO-AVN,BLUETOOTH,8SPEAKER
86285BRACKET, AMPLIFIER, NO.1
AUDIO-AVN,BLUETOOTH,8SPEAKER
86286BRACKET, AMPLIFIER, NO.2
AUDIO-AVN,BLUETOOTH,8SPEAKER
86286BBRACKET, AMPLIFIER, NO.2
AUDIO-AVN,BLUETOOTH,8SPEAKER
9010508158
main90105-08158
9015350010
main90153-50010
9015350012
main90153-50012
9046710183
main90467-10183
9151560616
main91515-60616
19 parts on this diagram · 3 diagrams in section
