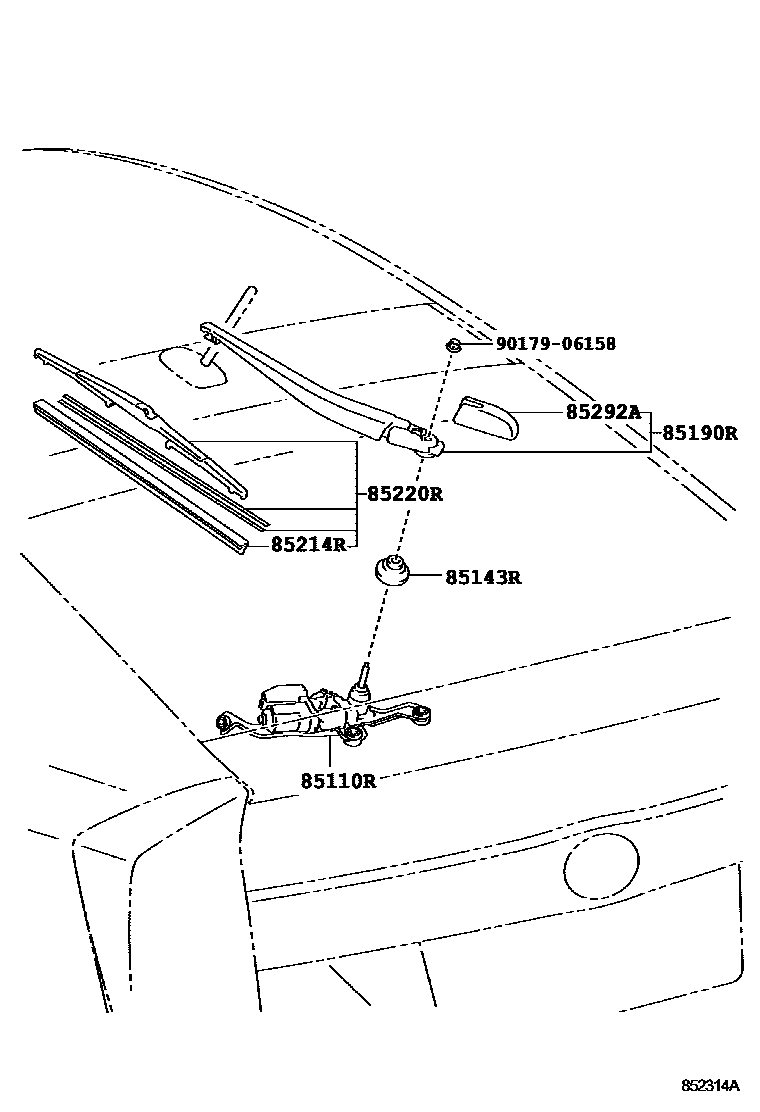

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47020iZVW30..G,S200904-200911

main85130-47021iZVW30..G,S200911-201112

85143RGROMMET, REAR WIPER MOTOR

main85143-72010iZVW30..G,S200904-201112

85190RARM ASSY, REAR WIPER

main85241-47030iZVW30..G,S200904-201112

85214RRUBBER, REAR WIPER

main85214-10100iZVW30..G,S200904-201112

85220RBLADE ASSY, REAR WIPER

main85242-47030iZVW30..G,S200904-201112

85292ACAP, REAR WIPER ARM HEAD

main85292-47010iZVW30..G,S200904-201112

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
