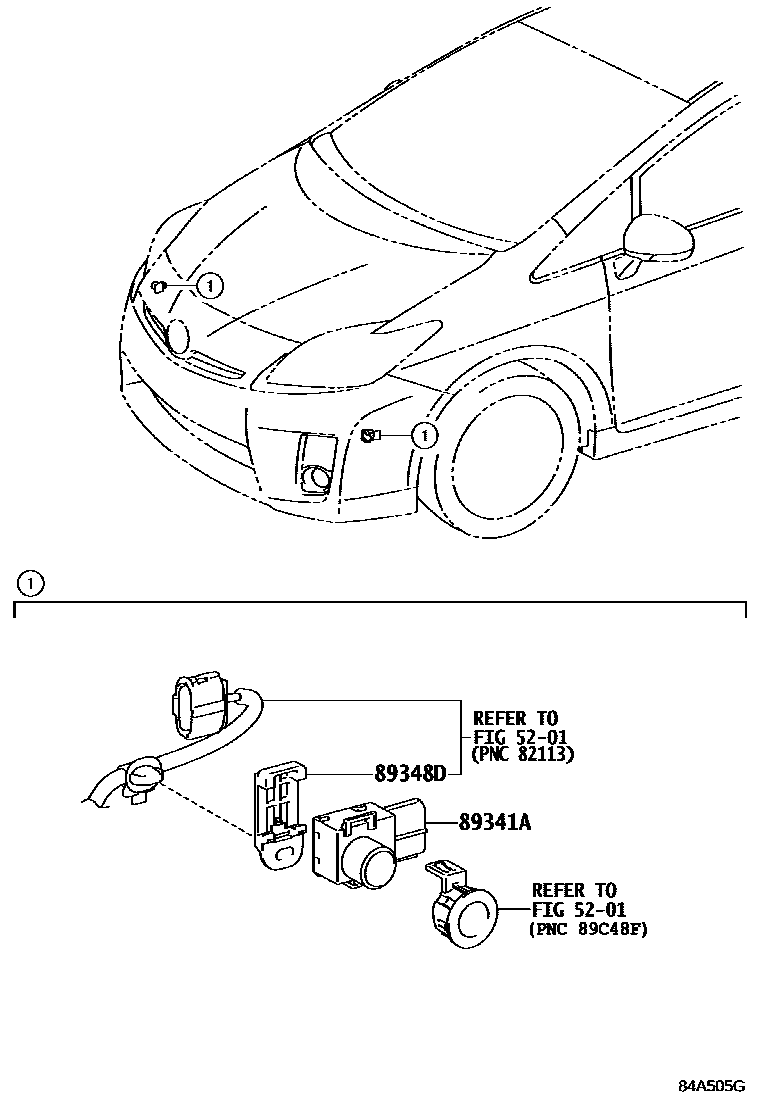

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,WHITE PEARL CS.,070; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,WHITE PEARL CS.,070; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,WHITE PEARL CS.,070

main89341-28480-A1×2i201003-201112

KOREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN,BLUETOOTH,8SPEAKER,SUPER WHITE 2,040; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,SUPER WHITE 2,040

main89341-28480-B1×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,SILVER ME.,1F7; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,SILVER ME.,1F7; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,SILVER ME.,1F7

main89341-28480-C0×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BLACK,202; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BLACK,202; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BLACK,202

main89341-28480-D1×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,RED M.M.,3R3; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,RED M.M.,3R3; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,RED M.M.,3R3

main89341-28480-E1×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BEIGE ME.,4T8; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BEIGE ME.,4T8; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,BEIGE ME.,4T8

main89341-28480-J2×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,DK.BLUE MC.,8T5; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,DK.BLUE MC.,8T5; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,DK.BLUE MC.,8T5

main89341-28480-J4×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,ABYSS GRAY ME.,8V1; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,ABYSS GRAY ME.,8V1; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER,ABYSS GRAY ME.,8V1

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2i200904-201112

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER; PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&INSIDE REAR VIEW MIRROR-AUTOMATICANTI-GLARE&AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER

3 parts on this diagram · 1 diagram in section
