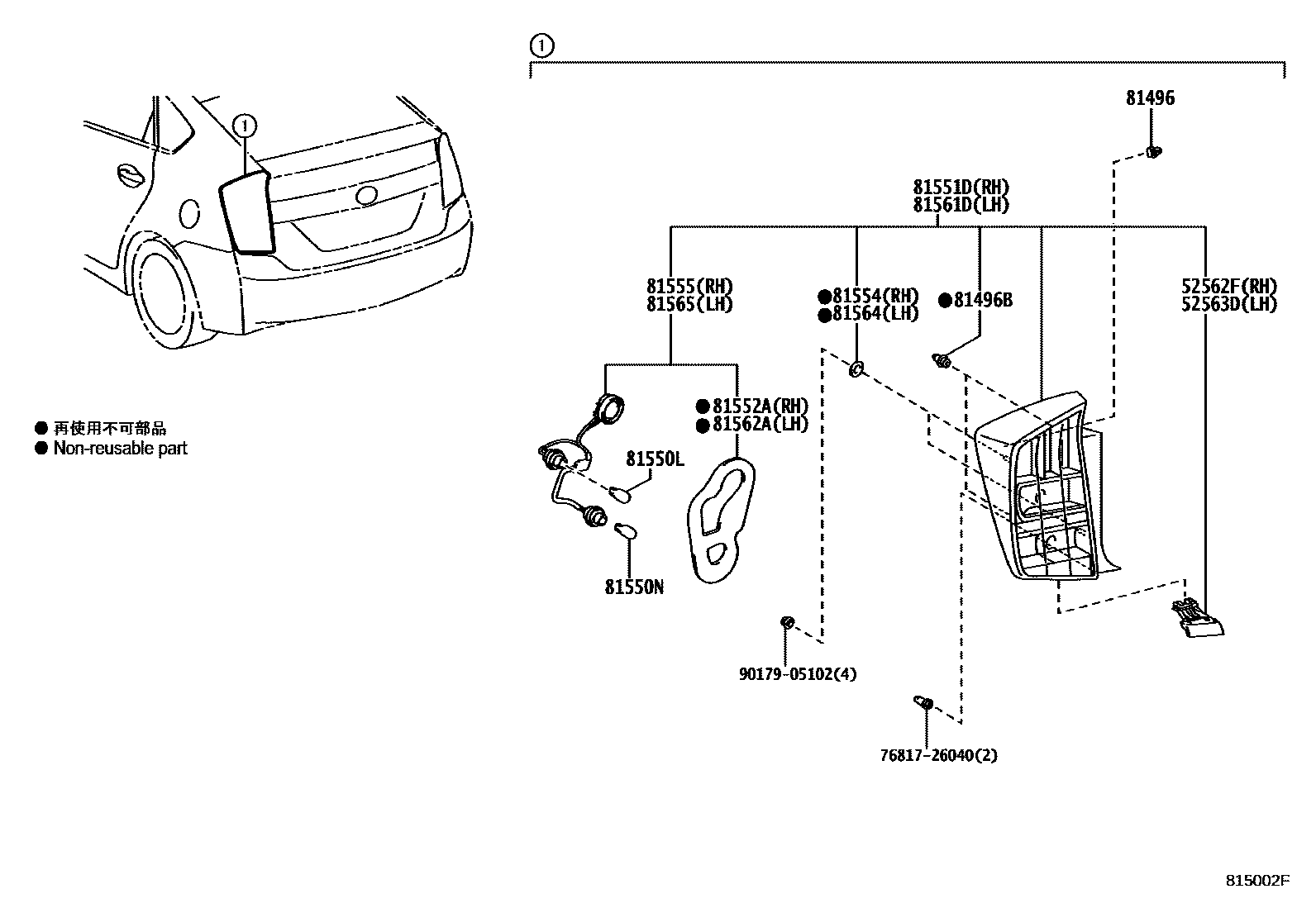

REAR COMBINATION LAMP

0001 1 0002 1

52562FRETAINER, REAR BUMPER, UPPER SIDE

main52562-47010iZVW30200904-201511

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-47010iZVW30200904-201511

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iZVW30200904-201112

81496BGUIDE, REAR LAMP

main81496-28010iZVW30200904-201112

main90467-09234iZVW30201112

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iZVW30200904-201112

81550NBULB, BACK UP LAMP

main90981-13043iZVW30200904-201112

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-47110iZVW30200904-201001

sub81551-47111

main81551-47111iZVW30201001-201112

main81551-47190iZVW30201112

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-47110iZVW30200904-201112

main81552-47170iZVW30201112

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-47110iZVW30200904-201112

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-47110iZVW30200904-201112

main81555-47170iZVW30201112

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-47110iZVW30200904-201001

sub81561-47111

main81561-47111iZVW30201001-201112

main81561-47190iZVW30201112

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-47110iZVW30200904-201112

main81562-47170iZVW30201112

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-47110iZVW30200904-201112

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-47170iZVW30201112

main81565-47110iZVW30200904-201112

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9017905102

main90179-05102

16 parts on this diagram · 2 diagrams in section
