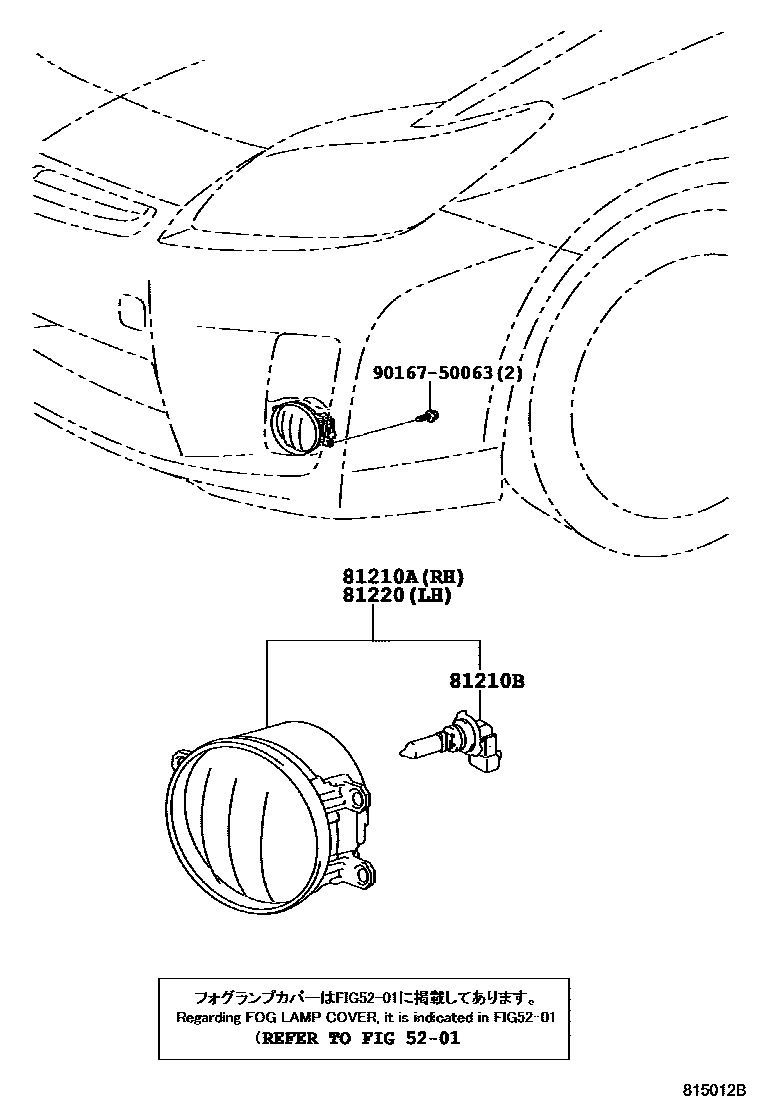

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81025-0W020iZVW30..G,S200904-201112

HEADLAMP-LED

main81210-12230iZVW30..G;ZVW30..CND201112-201311

HEADLAMP-LED

main81210-47010iZVW30..G;ZVW30..CND201312-201511

HEADLAMP-LED

81210BBULB, FOG LAMP

main90981-13075×2iZVW30..G,S200904-201112

12V 55W,HALOGEN,HEADLAMP-LED,PHILIPS

main90981-13081×2iZVW30..G,S200904-201112

12V 55W,HALOGEN,HEADLAMP-LED,OSRAM

main90981-13090×2iZVW30..G;ZVW30..CND201112

12V 19W,HEADLAMP-LED

81220LAMP ASSY, FOG, LH

main81026-0W020iZVW30..G,S200904-201112

HEADLAMP-LED

main81220-12230iZVW30..G;ZVW30..CND201112-201311

HEADLAMP-LED

main81220-47010iZVW30..G;ZVW30..CND201312-201511

HEADLAMP-LED

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
